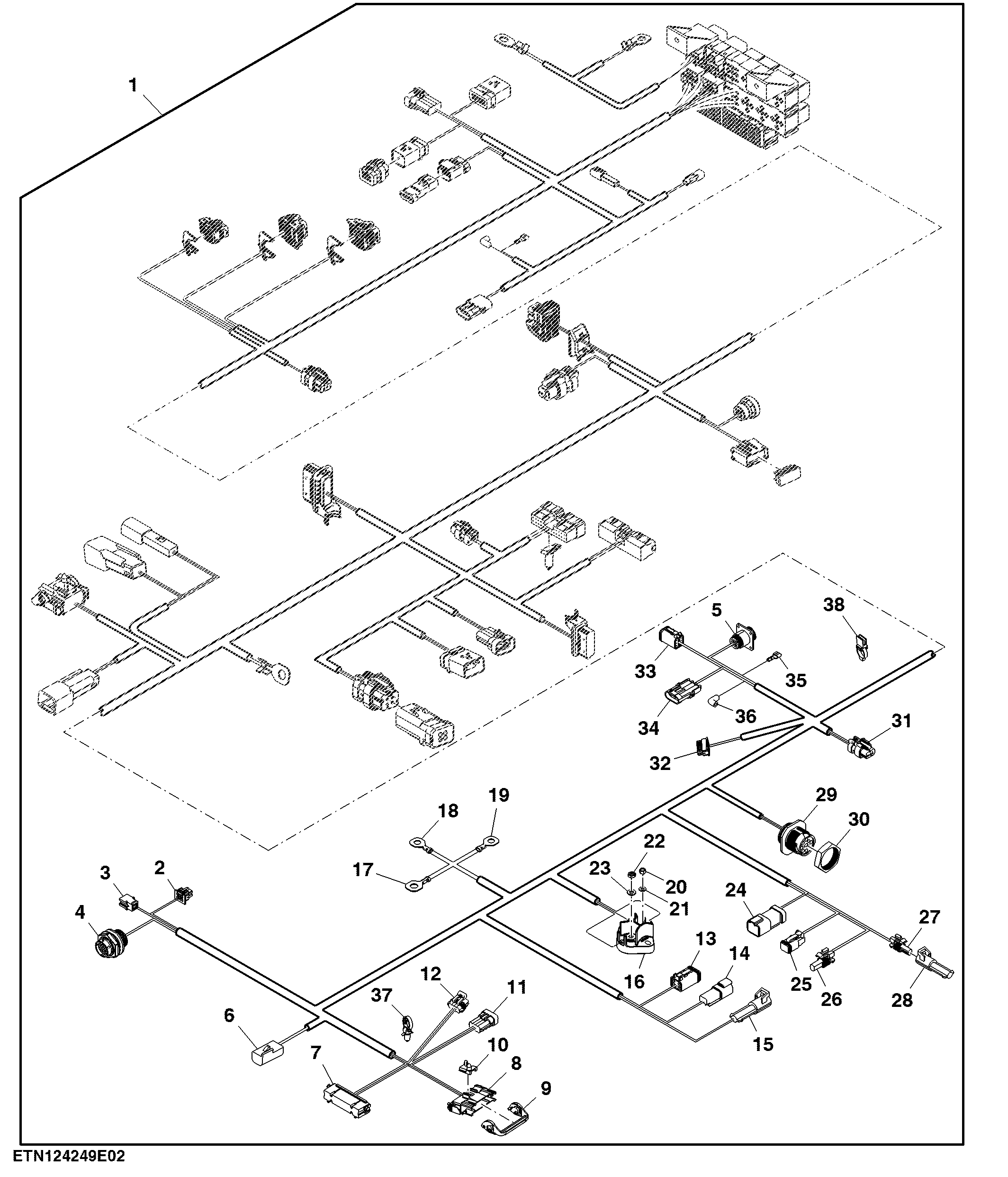

Cab Wiring Harness and Connectors, Value Server (2/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE595303	1	Cab Wiring Harness	-
1	RE580992	1	Cab Wiring Harness	ORDER RE595303; ALSO ORDER L212257; SUB FOR RE574894
2	57M7719	1	Electrical Connector Assy	-
2	RWA11122	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
2	57M7714	1	Electrical Connector Assy	A903, Primary Display Unit
3	57M7713	1	Electrical Connector Assy	X222, ISO6, 11786 Connector
3	57M7718	1	Electrical Connector Assy	-
3	RWA11123	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
4	57M9231	1	Elec. Connector Housing	X923, Reconfigurable Display
4	57M9232	1	Elec. Connector Seal	-
4	RWA11133	1	Repair Wire Assembly	Cavity L, M, N, P, R, U, V
5	57M9354	1	Elec. Connector Housing	X111, ISO In Cab Connector ISO3
5	RWA10674	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 8, 9
5	RWA10672	1	Repair Wire Assembly	Cavity 7
6	57M7785	1	Elec. Connector Housing	Decel Switch
6	57M7724	1	Electrical Connector Assy	-
7	RWA11101	1	Repair Wire Assembly	Cavity A7, A8, A9, B7, B8, B9
7	57M11346	1	Elec. Connector Housing	Interconnect, Front Control Support Harness Connector 1
7	RWA11096	1	Repair Wire Assembly	Cavity A1, A10, A11, A12, A13, A14, A15, A3, A4, A5, A6, B1, B10, B11, B12, B13, B14, B15, B2, B3, B4, B5, B6
8	57M11348	1	Elec. Connector Housing	interconnect, Front Control Support Harness Connector 2
8	RWA11095	1	Repair Wire Assembly	Cavity A10, A11, A14, A2, A3, A4, A5, A6
9	57M11795	1	Elec. Connector Accessory	-
10	57M11364	1	Elec. Connector Accessory	-
11	57M7261	1	Elec. Connector Housing	MOB2 Connector
11	57M7296	1	Elec. Connector Accessory	-
12	57M7264	1	Elec. Connector Housing	Interconnect, MOD1 Connector
12	57M7283	1	Elec.Connect Locking Device	-
13	57M8021	1	Electrical Connector Assy	Cab Implement Can Power Connector
13	57M8022	1	Elec.Connect Locking Device	-
14	57M8015	1	Electrical Connector Assy	Cab Implement Can Connector 1 ICC1
14	57M8016	1	Elec.Connect Locking Device	-
15	57M7293	1	Elec. Connector Housing	Radar for ISO 11786 Connector RDR1
15	57M7295	1	Elec.Connect Locking Device	-
16	RE186986	1	Junction Block	-
17	57M8871	1	Elec. Connector Terminal	Right Junction Block Ground RJB1
18	57M8875	1	Elec. Connector Terminal	Right Junction Block Block Battery Power RJB2
19	57M8875	1	Elec. Connector Terminal	Right Junction Block Accessory Power RJB3
20	14M7297	2	Nut	M5
21	24M7027	2	Washer	5.300 X 10 X 1 mm
22	14M7194	1	Nut	M6
23	24M7105	1	Washer	6 X 12 X 1.600 mm
24	57M8017	1	Elec. Connector Housing	Cab Implement Can Connector 2 ICC2
24	57M7619	1	Elec.Connect Locking Device	-
25	57M8023	1	Elec. Connector Housing	Cab Implement Can Power Connector 2 ICP2
25	57M7621	1	Elec.Connect Locking Device	-
26	57M7294	1	Elec. Connector Housing	From Radar Sensor RDR2
26	57M7295	1	Elec.Connect Locking Device	-
27	57M7294	1	Elec. Connector Housing	From GPS Receiver GPS1
27	57M7295	1	Elec.Connect Locking Device	-
28	57M7295	1	Elec.Connect Locking Device	-
28	57M7293	1	Elec. Connector Housing	Duat Cap For GPS 17A
29	57M9183	1	Elec. Connector Housing	Service Advisor Connector SERA
30	57M9182	1	Nut	-
31	57M9734	1	Elec. Connector Housing	B253, Gyro
31	RWA11026	1	Repair Wire Assembly	Cavity 1, 2, 3
32	57M7717	1	Electrical Connector Assy	A129, Server J1
32	57M7722	1	Electrical Connector Assy	-
32	RWA11122	1	Repair Wire Assembly	Cavity 1, 2, 3, 5, 6, 8, 9, 10, 13, 14, 16
33	57M8012	1	Electrical Connector Assy	K924, ISO Relay Box Connector
33	RWA11058	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
33	57M8013	1	Elec.Connect Locking Device	-
34	R78054	1	Electrical Connector Assy	Convenience Outlet 1 RCON
34	RWA11147	1	Repair Wire Assembly	Cavity A, B, C
35	U46662	1	Elec. Connector Terminal	Right Side Lighter Ground RCLG
36	57M11921	1	Elec. Connector Housing	E119, Right Side Lighter Power RCLP
37	57M10233	1	Tie Band	-
38	57M10362	2	Clamp	-
