Открытый узел

Wiring Harness, ILS™ Manifold, W/O Front PTO

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE594655	1	Wiring Harness	USE WITH RE594358 OR RE594359
1	RE563781	1	Chassis Wiring Harness	USE WITH RE590658 OR RE590659
2	57M8281	1	Elec. Connector Housing	X020B, Chassis Harness Interconnect
2	RWA11098	1	Repair Wire Assembly	Cavity B, C, D, E, F, G, K, L, M, N, P, R
2	RWA11103	1	Repair Wire Assembly	Cavity A, J, H
3	57M11996	1	Elec. Connector Accessory	-
4	57M8924	1	Elec. Connector Housing	Front Brake Off USE WITH RE563781; Y706
4	57M7254	1	Elec. Connector Housing	Front Brake Off USE WITH RE594655; Y706
4	RWA10703	1	Repair Wire Assembly	Cavity A, B
5	57M9222	1	Elec. Connector Housing	-
6	57M8633	2	Elec. Connector Accessory	-
7	57M8639	1	Elec. Connector Housing	Front Brake USE WITH RE594655; Y705
7	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
7	57M10517	1	Elec. Connector Housing	Front Brake USE WITH RE563781; Y705
8	57M8023	1	Elec. Connector Housing	USE WITH RE563781
8	57M11230	1	Elec. Connector Accessory	USE WITH RE594655
8	57M8022	1	Elec.Connect Locking Device	-
9	57M7254	1	Elec. Connector Housing	Y511, ILS™ Damping B
9	57M9712	1	Elec. Connector Accessory	-
9	RWA11083	1	Repair Wire Assembly	Cavity A, B
10	57M7254	1	Elec. Connector Housing	Y510, ILS™ Damping A
10	57M9712	1	Elec. Connector Accessory	-
10	RWA11083	1	Repair Wire Assembly	Cavity A, B
11	57M10517	1	Elec. Connector Housing	Front Differential Lock USE WITH RE563781; Y683
11	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
11	57M8639	1	Elec. Connector Housing	Front Differential Lock USE WITH RE594655; Y683
11	57M8022	1	Elec.Connect Locking Device	-
12	57M7254	1	Elec. Connector Housing	Y509, ILS™ Decrease Stiffness
12	57M9712	1	Elec. Connector Accessory	-
12	RWA11083	1	Repair Wire Assembly	Cavity A, B
13	57M8625	1	Elec. Connector Housing	B306, ILS™ Pressure
13	RWA10703	1	Repair Wire Assembly	Cavity 1, 2, 3
14	57M8624	1	Elec.Connect Locking Device	-
15	57M7254	1	Elec. Connector Housing	Y508, ILS™ Increase Stiffness
15	57M9712	1	Elec. Connector Accessory	-
15	RWA11083	1	Repair Wire Assembly	Cavity A, B
16	57M7254	1	Elec. Connector Housing	Y506, ILS™ Raise
16	RWA11083	1	Repair Wire Assembly	Cavity A, B
16	57M9712	1	Elec. Connector Accessory	-
17	57M7254	1	Elec. Connector Housing	Y507, ILS™ Lower
17	57M9712	1	Elec. Connector Accessory	-
17	RWA11083	1	Repair Wire Assembly	Cavity A, B
18	57M10613	1	Elec. Connector Housing	-
19	57M10615	1	Elec. Connector Housing	A580-J1, MECA Front Controller J1
19	RWA11030	1	Repair Wire Assembly	Cavity J2, D1, F2, J3, K4, E4, H4, D4, C4, A1, B1, J4, B2, K3, K2
19	RWA10888	1	Repair Wire Assembly	Cavity L2, M1, L4, M2, L1
20	RE258807	2	Tie Band	-

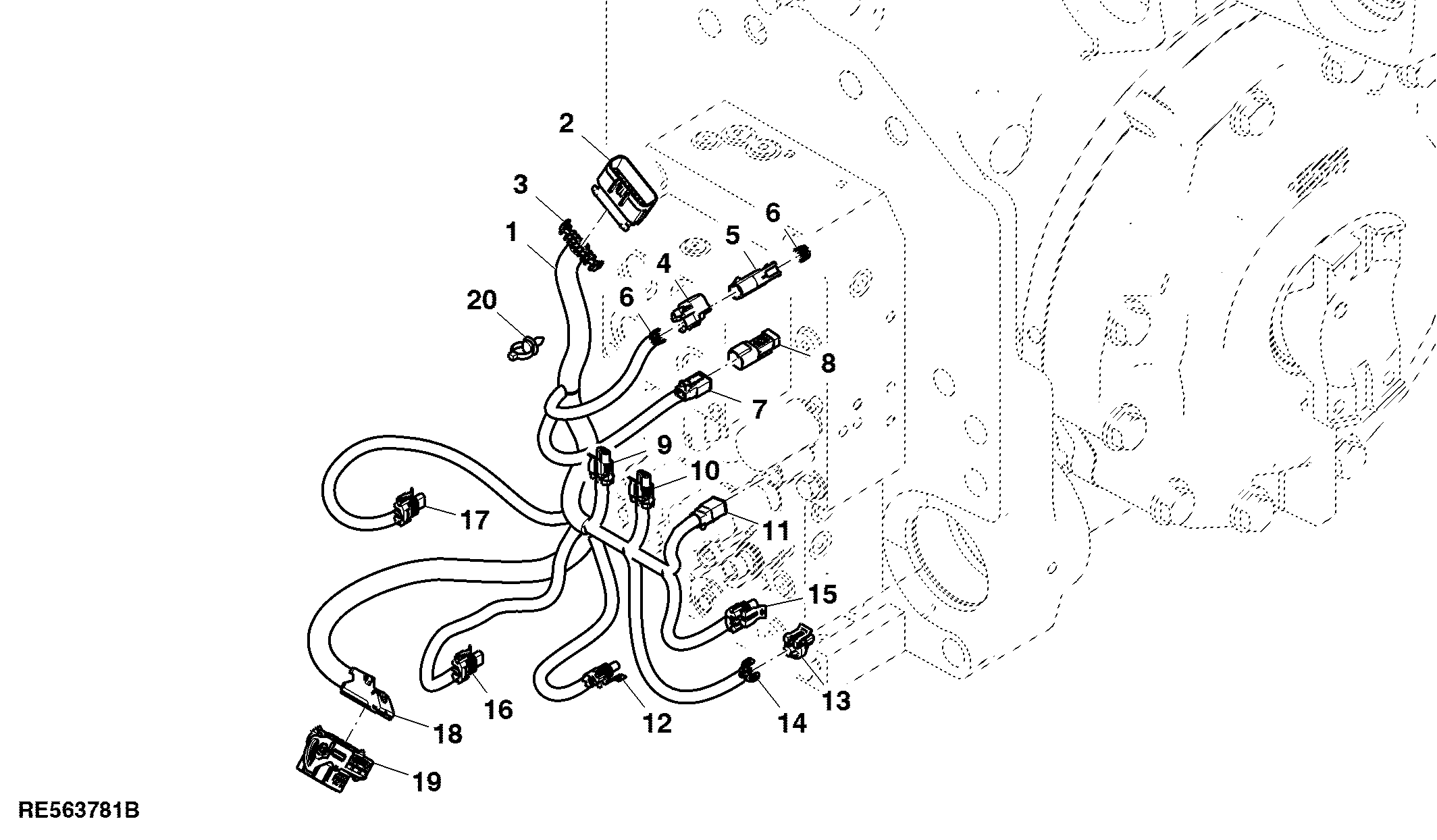

Wiring Harness, ILS™ Manifold, W/O Front PTO
