Wiring Harness, Front Control Support, W/ Backup Pump, ACS™ or Tracks (120000 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE581199	1	Wiring Harness	-
2	R277657	1	Elec. Connector Housing	S001, Key Switch
2	57M9153	7	Elec.Connect Locking Device	-
3	R77480	1	Electrical Connector Assy	S301, Start Aid
4	57M9800	1	Elec. Connector Housing	B248_A, Hand Wheel Position
5	57M12240	1	Elec. Connector Housing	A574, LH Reverser
5	57M7682	1	Elec.Connect Locking Device	-
6	57M9717	1	Elec.Connect Locking Device	-
7	57M8857	1	Elec. Connector Housing	XX101, Column Inline
7	57M8859	2	Elec.Connect Locking Device	-
7	57M8860	1	Elec.Connect Locking Device	-
8	57M8910	1	Clip	-
9	57M9804	1	Elec. Connector Housing	XX982_A, Chassis Inline
10	57M7328	1	Elec. Connector Housing	S503, Differential Lock Switch
10	57M7289	1	Elec.Connect Locking Device	-
11	57M8919	1	Elec. Connector Housing	A578, Clutch Pedal
12	57M11346	1	Elec. Connector Housing	XX121, Cab Inline 2
12	57M12822	1	Elec. Connector Accessory	-
13	57M8851	1	Elec. Connector Housing	A577, Foot Throttle
14	57M11348	1	Elec. Connector Housing	XX120, Cab Inline 1
14	57M12823	1	Elec. Connector Accessory	-
14	57M12824	1	Elec. Connector Accessory	-
15	57M12825	1	Elec. Connector Accessory	-
16	57M11364	1	Elec. Connector Accessory	-
17	RE258807	5	Tie Band	-
18	57M9229	1	Clip	-
19	R343435	1	Grommet	-
20	57M11797	2	Elec. Connector Accessory	-
21	57M7255	1	Elec. Connector Housing	Brake Pedal Lock Lever
21	57M7290	1	Elec. Connector Accessory	-
22	57M7257	1	Elec. Connector Housing	Dust Cap
22	57M7290	1	Elec. Connector Accessory	-
23	RE576503	1	Snap Ring	-

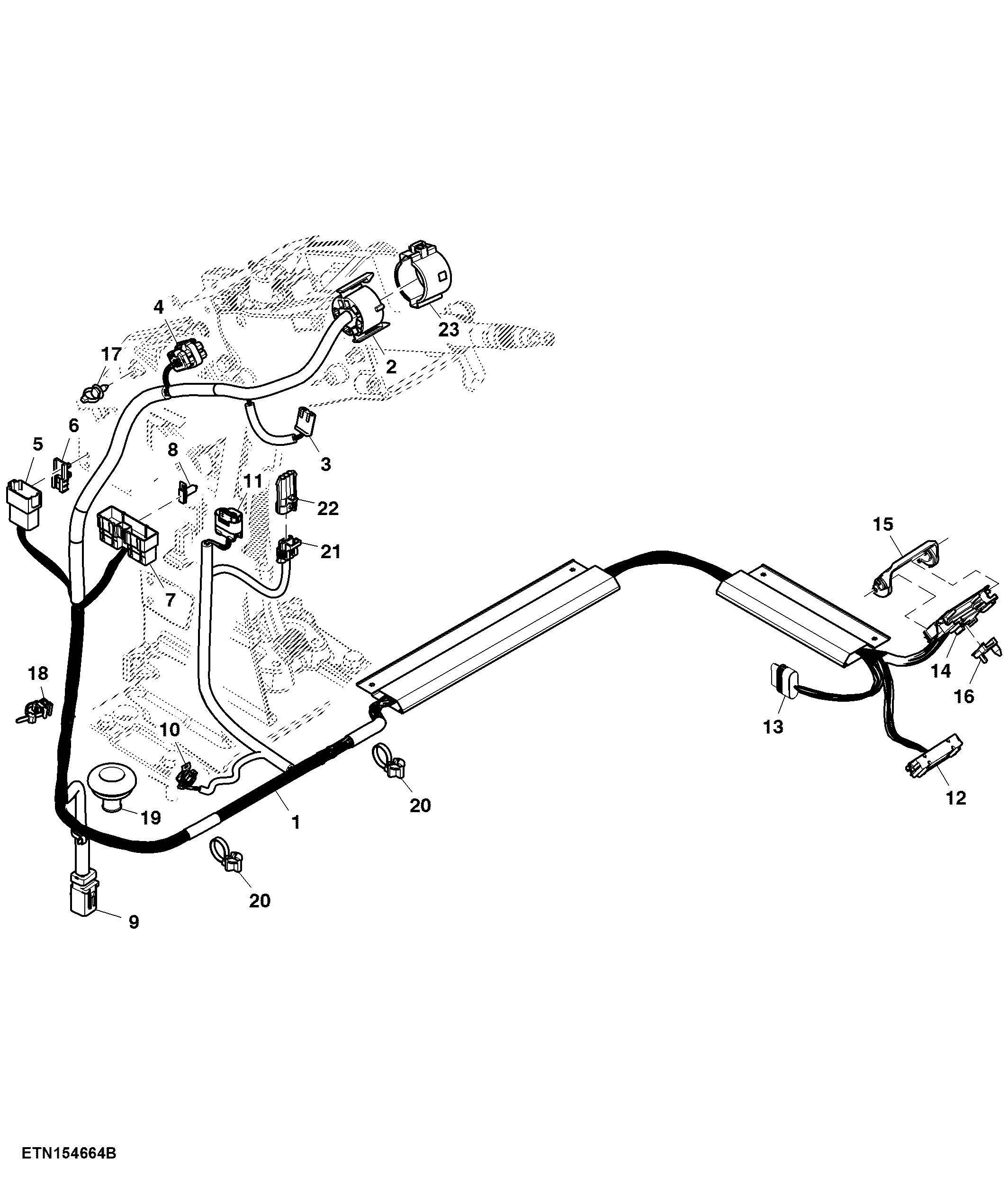

Wiring Harness, Front Control Support, W/ Backup Pump, ACS™ or Tracks (120000 - )
