Открытый узел

Selective Control Valve, W/ Hitch, 5 Rear SCV, High Flow (120000 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE574660	1	Cover	Number II, Blue, SCV Coupler
2	RE574942	1	Cover	Number III, Brown, SCV Coupler
3	RE574943	1	Cover	Number IV, Black, SCV Coupler
4	RE574944	1	Cover	Number V, Violet, SCV Coupler
5	RE574695	1	Cover	Number I, Green, SCV Coupler
6	T122075	2	O-Ring	-
7	14M7275	2	Nut	M12
8	24M7240	2	Washer	13 X 25 X 3 mm
9	42M7062	1	Stud	-
10	14M7299	1	Flange Nut	M12
11	19M7789	1	Screw	M12 X 30
12	19M7837	1	Screw	M12 X 110
13	L169038	1	Stud	-
14	RE583785	1	Oil Line	SCV Load Sense
15	R542822	1	Bracket	-
16	38H5025	1	Elbow Fitting	-
17	51M7041	5	O-Ring	11.300 X 2.200 mm
18	T77814	1	O-Ring	-
19	R10093	16	O-Ring	-
20	RE312613	2	Tube	Drain
21	RE46684	1	Fitting Plug	-
22	51M7045	2	O-Ring	19.300 X 2.200 mm
23	RE271469	1	Manifold	-
24	RE588380	1	Selective Control Valve	Hitch Control Valve Unit (HV1) V800
25	RE283453	2	Manifold	-
26	RE588376	1	Selective Control Valve	SUB FOR RE580229
27	RE573039	1	Breakaway Coupler	SUB FOR RE312147
28	RE588375	4	Selective Control Valve	SUB FOR RE580227
29	R77175	3	Cover	-
30	RE190805	3	Diagnostic Coupling	-
31	19M7798	1	Screw	M8 X 40
32	RE559660	2	Breakaway Coupler	Mid Profile SUB FOR RE262016
33	RE559661	2	Breakaway Coupler	High Profile SUB FOR RE262017
34	R267667	2	Cap	-
35	R267668	2	Hose Fitting	-
36	RE272882	6	Tube	Inter-Coupler Drain
37	R266977	16	Socket Head Screw	-
38	14M7327	3	Lock Nut	M8
39	24M7095	19	Washer	8.400 X 15 X 1.600 mm
40	38H5121	2	Adapter Fitting	-
41	T77858	2	O-Ring	-
42	RE260570	1	Manifold	-
43	RE304819	1	Stud Kit	-
44	H127589	2	Clamp	-

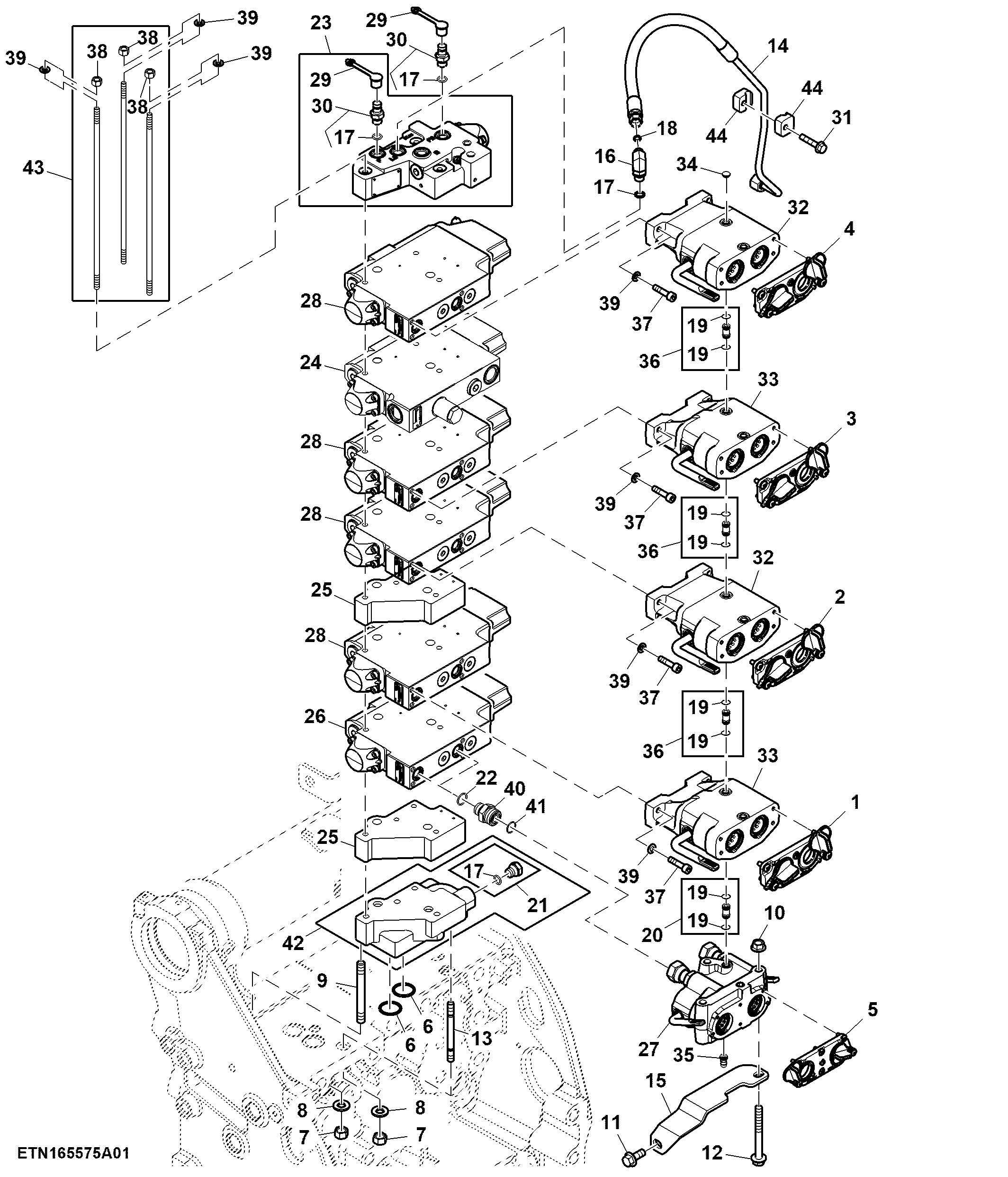

Selective Control Valve, W/ Hitch, 5 Rear SCV, High Flow (120000 - )

Нет текстового описания
