Chassis Wiring Harness, ILS™ W/ ACS™, Front Hitch, FT4 Engine (4/4) (120000 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, E, F, G, H, J, K
1	57M7262	1	Elec. Connector Housing	X116, Rear Option Connector
2	57M8910	1	Clip	-
3	57M7256	1	Elec. Connector Housing	XX014, Back Up Alarm
4	57M7254	1	Elec. Connector Housing	-
5	57M8910	1	Clip	-
5	RWA11082	1	Repair Wire Assembly	Cavity A, B
6	57M8156	1	Elec. Connector Housing	XX330, Transmission Interconnect
6	RWA11097	1	Repair Wire Assembly	Cavity B, C, D, E, F, G, K, L, M, N, P, R
6	RWA11102	1	Repair Wire Assembly	Cavity A
7	57M10614	1	Elec. Connector Housing	A570-1, MECA Rear Controller J1
8	57M10613	1	Elec. Connector Housing	-
8	RWA11030	1	Repair Wire Assembly	Cavity A1, A3, A4, B1, B2, B3, B4, C1, D1, D2, D4, E4, F1, F4, G1, G2, G3, G4, H1, H2, H3, H4, J3, J4, K1, K2
8	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L4, M1, M2, M3, M4
9	57M10367	1	Elec. Connector Housing	A570-2, MECA Rear Controller J2
10	RWA11030	1	Repair Wire Assembly	Cavity 7, 9, 11, 12, 13, 14, 16, 19, 21, 22, 23, 24, 25, 26, 34, 35, 36, 37, 38, 39, 40, 44, 47, 49, 50
10	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
10	RWA11032	1	Repair Wire Assembly	Cavity 6, 18, 29, 41, 42, 53
10	57M10401	1	Elec. Connector Accessory	-
11	57M11523	1	Elec. Connector Housing	XX501, Cab Harness Interface 2
12	57M11528	1	Elec. Connector Accessory	-
12	RWA11029	1	Repair Wire Assembly	Cavity 10, 11, 12, 13, 15, 16, 19, 20, 23, 24, 25, 26
12	RWA11118	1	Repair Wire Assembly	Cavity 1, 27, 28
13	57M11524	1	Elec. Connector Housing	XX500, Cab Harness Interface 1
14	57M11528	1	Elec. Connector Accessory	-
14	RWA11029	1	Repair Wire Assembly	Cavity 3, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26
14	RWA11118	1	Repair Wire Assembly	Cavity 1, 2, 27, 28
15	57M10605	1	Elec. Connector Housing	A985-1, SBBA-J1
16	57M10604	1	Elec. Connector Housing	-
16	RWA11032	1	Repair Wire Assembly	Cavity G1, G2, G4, H3, H4
16	RWA11030	1	Repair Wire Assembly	Cavity A2, A4, B2, B4, C2, C4, E1, E2, F1, F2, F3, F4
17	57M10614	1	Elec. Connector Housing	A985-2, SBBA-J2
18	57M10613	1	Elec. Connector Housing	-
18	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A4, B1, B4, C2, C3, C4, E1, E2, F1, F4, G1, G2, G3, G4, H1, H3, H4, J1, J2, J3, K1, K2, K4
18	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
19	57M10611	1	Elec. Connector Housing	A985-3, SBBA-J3
20	57M10604	1	Elec. Connector Housing	-
20	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D1, D2, D3, E3, F1, F3, F4
20	RWA11032	1	Repair Wire Assembly	Cavity G1, G2, G4, H1, H2
21	57M10605	1	Elec. Connector Housing	A986-1, SBBB-J1
22	RWA11032	1	Repair Wire Assembly	Cavity G1, G4, H3, H4
22	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, B1, B2, C4, D2, D4, E1, E4, F1, F3, F4
22	57M10604	1	Elec. Connector Housing	-
23	57M10614	1	Elec. Connector Housing	A986-2, SBBB-J2
24	57M10613	1	Elec. Connector Housing	-
24	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A3, A4, B1, B3, B4, C2, C3, D3, D4, E1, E2, E4, F1, F2, F4, G1, G2, G3, G4, H1, H3, K4, J1, J3, J4, K1, K2, K4
24	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
25	57M10611	1	Elec. Connector Housing	A986-3, SBBB-J3
26	57M10604	1	Elec. Connector Housing	-
26	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D2, D3, D4, E2, E3, F1, F3, F4
26	RWA11032	1	Repair Wire Assembly	Cavity G2, H1, H2
27	57M9792	1	Elec. Connector Housing	XX780, Cab Harness Interface 3
27	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
28	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
28	57M9772	1	Elec. Connector Housing	A100-2, Implement Power Relay
29	-	1	Part 56	A100-3, SW PWR Output
30	RE336303	1	Relay Module	INCLUDES 57M12929 AND 57M10797
31	57M9780	1	Elec. Connector Housing	B696_2-SPEED, Rear Pto Speed Sensor
32	57M9847	1	Elec. Connector Accessory	-
32	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
33	57M8924	1	Elec. Connector Housing	Y499, Rear PTO Speed Select Solenoid
34	57M9222	1	Elec. Connector Housing	-
34	RWA11097	1	Repair Wire Assembly	Cavity A, B
35	57M10299	1	Elec. Connector Housing	XX016, Trailer Lighting
35	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8
36	57M8625	1	Elec. Connector Housing	B770, Yellow Coupler Pressure
36	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
37	57M7254	1	Elec. Connector Housing	Y664, Air Trailer Brake Solenoid
38	57M7256	1	Elec. Connector Housing	-
38	RWA11083	1	Repair Wire Assembly	Cavity A, B
39	57M13137	1	Elec. Connector Housing	Y721, Air Trailer Brake Leak Detection Solenoid
40	57M10711	1	Elec. Connector Accessory	-
40	RWA11105	1	Repair Wire Assembly	Cavity 1, 2
41	57M8625	1	Elec. Connector Housing	B922, Air Trailer Brake Pressure Sensor
42	RE12363	1	Electrical Connector Assy	S549, Implement Switch
42	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
43	R78053	1	Electrical Connector Assy	-
43	RWA11147	1	Repair Wire Assembly	Cavity A, B
44	57M10530	1	Elec. Connector Housing	A914, Implement CAN Bus Active Terminator
44	RWA11058	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
45	RWA11001	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
45	57M13652	1	Elec. Connector Housing	X221, ISO Implement Connector
46	57M9498	1	Elec. Connector Housing	A701, SCV 1
46	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
47	57M9498	1	Elec. Connector Housing	A702, SCV 2
47	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
48	57M9498	1	Elec. Connector Housing	A703, SCV 3
48	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
49	57M9498	1	Elec. Connector Housing	A800, Rear Hitch Valve
49	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
50	57M9498	1	Elec. Connector Housing	A704, SCV 4
51	57M11354	1	Elec. Connector Housing	-
51	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
52	57M9498	1	Elec. Connector Housing	A705, SCV 5
53	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
53	57M11354	1	Elec. Connector Housing	-
54	57M9498	1	Elec. Connector Housing	A706, SCV 6
54	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
55	57M11354	1	Elec. Connector Housing	-
56	H224072	1	Clamp	-
57	57M9229	5	Clip	-
58	AH225364	1	Clip	-
59	RE586060	1	Chassis Wiring Harness	-
59	RE587145	1	Chassis Wiring Harness	-
60	57M12147	1	Clamp	-
61	57M9213	1	Elec. Connector Housing	-
62	RE258807	14	Tie Band	-
63	57M12929	1	Fuse	30A
64	57M10797	1	Fuse	-

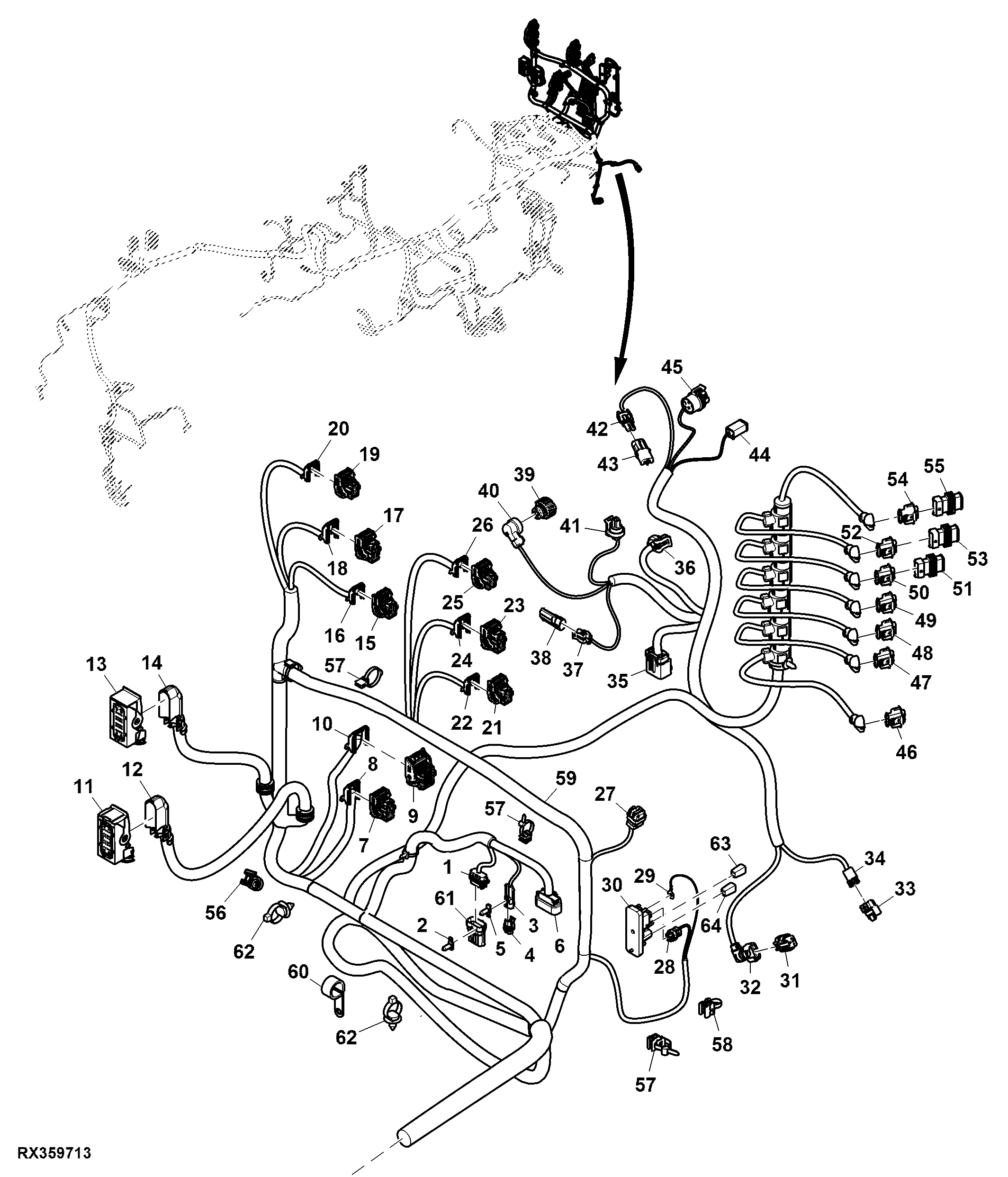

Chassis Wiring Harness, ILS™ W/ ACS™, Front Hitch, FT4 Engine (4/4) (120000 - )
