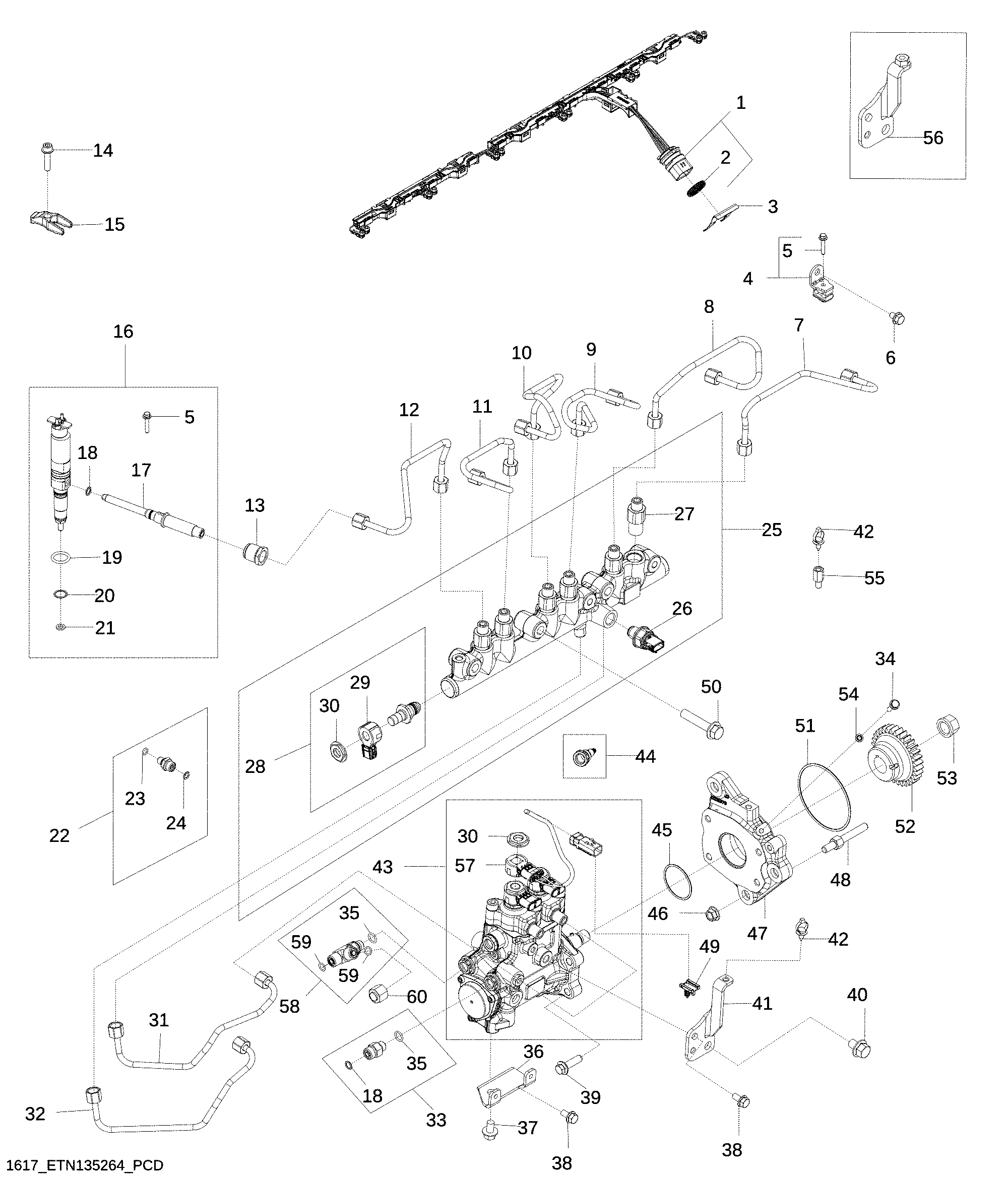

1617 Fuel Injection System

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE558115	1	Wiring Harness	-
2	R529072	1	Sealing Ring	-
3	DZ111677	1	Clip	SUB FOR APPL R528718
4	RE525519	4	Clamp	Fuel Injection Line
5	RE527756	4	Screw With Washer	-
6	RE524730	4	Cap Screw	-
7	DZ105433	1	Fuel Line	Cylinder 1 ALSO ORDER RE527756; SUB FOR RE549732
8	DZ105434	1	Fuel Line	Cylinder 2 ALSO ORDER RE527756; SUB FOR RE549733
9	DZ105435	1	Fuel Line	Cylinder 3 ALSO ORDER RE527756; SUB FOR RE549734
10	DZ105436	1	Fuel Line	Cylinder 4 ALSO ORDER RE527756; SUB FOR RE549735
11	DZ105437	1	Fuel Line	Cylinder 5 ALSO ORDER RE527756; SUB FOR RE549736
12	DZ105438	1	Fuel Line	Cylinder 6 ALSO ORDER RE527756; SUB FOR RE549737
13	R518871	6	Tube Nut	-
14	RE528096	6	Screw With Washer	-
15	R522417	6	Clamp	-
16	DZ102819	6	Injection Nozzle	-
17	RE550610	6	Fitting	-
18	R63548	7	O-Ring	-
19	R505452	6	O-Ring	-
20	R74354	6	O-Ring	-
21	R131051	6	Washer	-
22	RE551521	1	Adapter Fitting	-
23	51M7094	1	O-Ring	8.100 X 1.600 mm
24	R528735	1	O-Ring	-
25	RE549704	1	Fuel Rail	High Pressure
26	RE549752	1	Pressure Sensor	Fuel Rail
27	RE553121	6	Flow Control Hyd. Valve	High Pressure
28	RE549511	1	Pressure Relief Fitting	Common Rail
29	RE553523	1	Elec. Connector Terminal	-
30	R536041	3	Nut	-
31	DZ105439	1	Fuel Line	Supply Pump to Rail ALSO ORDER RE527756; SUB FOR RE551852
32	DZ105440	1	Fuel Line	Supply Pump to Rail ALSO ORDER RE527756; SUB FOR RE549707
33	RE539472	1	Fitting	-
34	19M8321	1	Screw	M6 X 45
35	51M7095	2	O-Ring	11.300 X 2.200 mm
36	R534600	1	Bracket	Pump Support
37	19M7783	1	Screw	M10 X 16
38	19M7865	3	Screw	M8 X 16
39	R500394	4	Screw	-
40	19M8242	1	Screw	M12 X 16
41	DZ117951	1	Bracket	-
42	RE258807	2	Tie Band	-
43	DZ123504	1	Fuel Pump	High Pressure SUB FOR RE569911 ; ALSO ORDER DZ123921
43	DZ123921	1	Valve	High Pressure SUB FOR RE550177
44	DZ122409	1	Pump Repair Kit	Service Kit For Fuel Pump USE WITH RE569911
45	R521040	1	O-Ring	-
46	14M7296	3	Flange Nut	M10
47	DZ111379	1	Adapter	MARKED DZ111378; SUB FOR R534599
48	R530067	3	Stud	-
49	57M9940	2	Elec. Connector Accessory	-
50	19M7815	3	Screw	M12 X 60
51	R500318	1	O-Ring	-
52	R542213	1	Gear	Z = 32, Fuel Supply Pump
53	14M7332	1	Flange Nut	M18
54	R527916	1	Washer	-
55	R545634	1	Stud	-
56	DZ103569	1	Bracket	ORDER DZ117951
57	RE569728	2	Elec. Connector Terminal	-
58	RE538348	1	Tee Fitting	-
59	R534806	2	O-Ring	-
60	RE538351	1	Fitting	-
