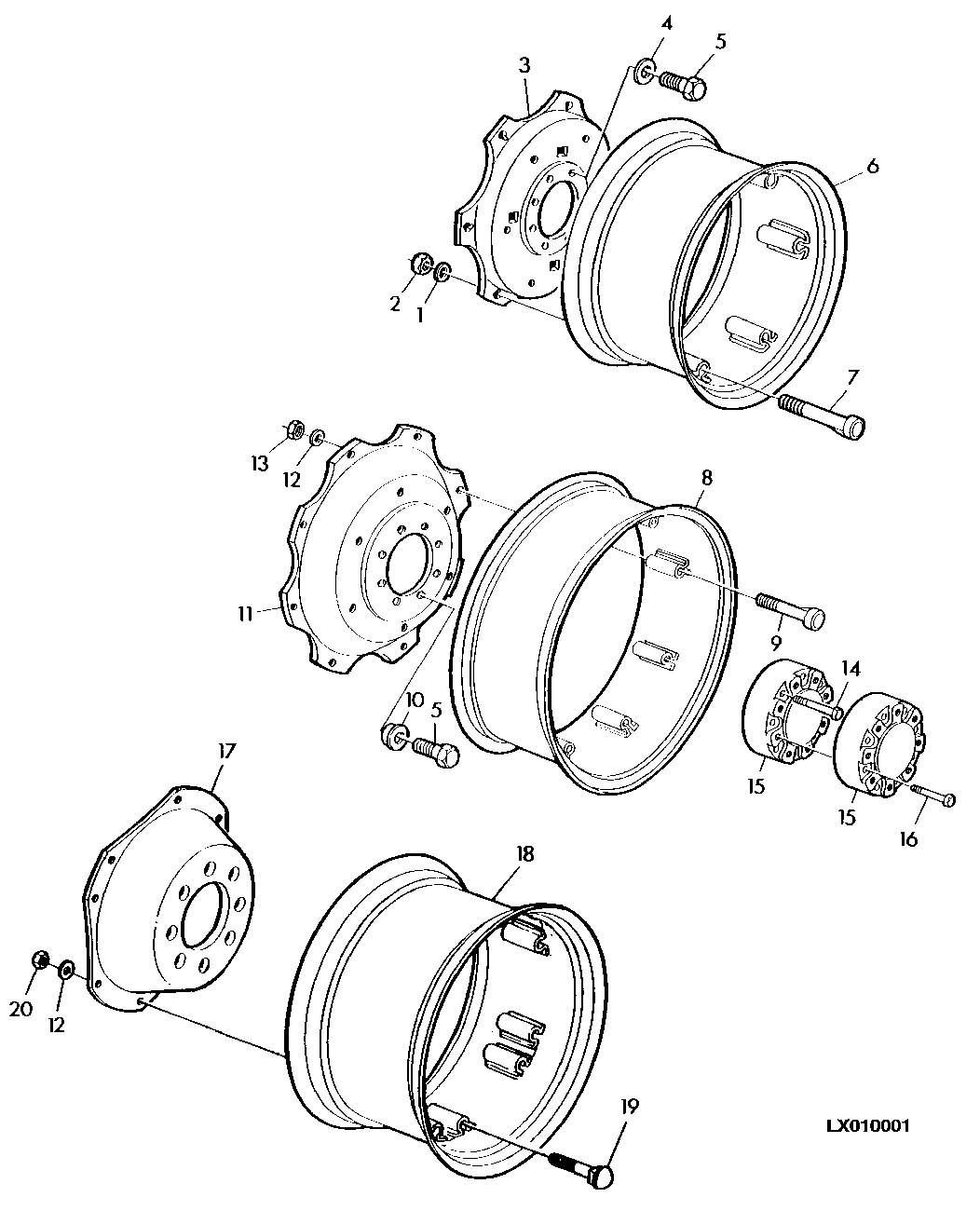

STEEL DISK REAR WHEELS (BRACKET WELDED)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7145	12	Washer	15 X 24 X 2.500 mm, 15MM
2	14H888	12	Nut	9/16", 9/16"
3	L31667	2	WHEEL CENTER	(FOR TIRE SIZE) 12.4-28, 13.6-28
3	L31669	2	Wheel Center	(FOR TIRE SIZE) 12.4-32
4	L110471	16	Washer	-
5	L31689	16	Cap Screw	9/16"
6	AL16602	2	RIM	(FOR TIRE SIZE) 12.4-28
6	AL15368	2	RIM	(FOR TIRE SIZE) 11.2-32, 12.4-32
6	AL15369	2	RIM	(FOR TIRE SIZE) 13.6-28
7	T27511	12	CAP SCREW	9/16
8	AL30071	2	Rim	(FOR TIRE SIZE) 9.5-36, ORDER AL171272
8	AL63888	2	Rim	(FOR TIRE SIZE) 9.5-36, ORDER AL171272
8	AL171272	2	Rim	(FOR TIRE SIZE) 9.5-36
9	L33894	16	Screw	-
10	L31686	16	Bushing	-
11	L41822	2	Wheel Center	(FOR TIRE SIZE) 9.5-36, OD= 832.5MM, (SUB FOR L31671)
11	L58881	2	Wheel Center	(FOR TIRE SIZE) 9.5-36, OD= 846MM, (SUB FOR L39737, L58882)
12	24M7053	16	Washer	17 X 30 X 3 mm, 17X30X3MM
13	14M7289	16	Nut	M16, M16
14	19H3387	16	Cap Screw	(W/DUAL REAR WHEELS) 9/16" X 4-3/4", 9/16"X4-3/4"
15	L32735	4	SPACER	(W/DUAL REAR WHEELS)
16	19H3386	16	CAP SCREW	(W/DUAL REAR WHEELS) 9/16" X 4-1/4", 9/16"X4-1/4"
17	L102280	2	Wheel Center	(FOR TIRE SIZE) 9.5-36
18	AL83073	2	Rim	(FOR TIRE SIZE) 9.5-36
19	03M7266	16	Bolt	M16 X 120
20	14M7276	16	Nut	M16

STEEL DISK REAR WHEELS (BRACKET WELDED)
