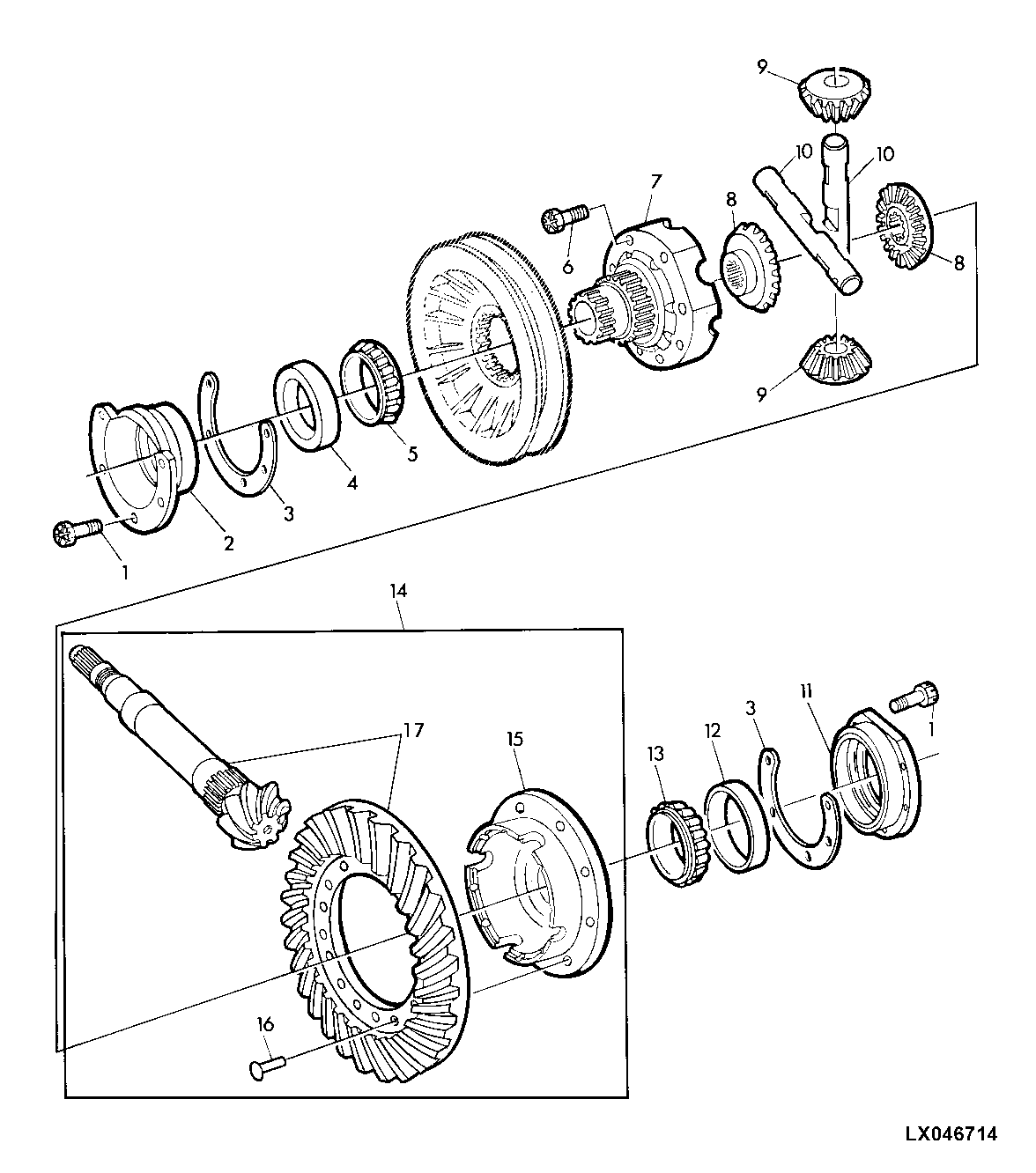

DIFFERENTIAL (WITH 2 DIFFERENTIAL PINIONS)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T22874	10	BOLT	3/8"
2	T21433	1	BEARING HOUSING W/O BEARING	LH
3	L40721	1	Shim	TK= 0.05MM (.002")
3	L29005	1	Shim	TK= 0.08MM (.003"), (SUB FOR T21434 APPL)
3	L29006	1	Shim	TK= 0.13MM (.005"), (SUB FOR T21435 APPL)
3	L29007	1	Shim	TK= 0.25MM (.010"), (SUB FOR T21436 APPL)
3	T29862	1	SHIM	TK= 0.50MM (.020")
4	JD7425	1	Bearing Cup	LH
5	JD8147	1	Bearing Cone	LH
6	T21430	8	CAP SCREW	3/8"
7	R51500	1	HOUSING	LH
8	T29394	2	BEVEL GEAR	Z=18
9	L29227	2	GEAR	Z=11
10	L29226	2	SHAFT	-
11	T21432	1	BEARING HOUSING W/O BEARING	RH
12	JD8206	1	Bearing Cup	RH
13	JD8946	1	Bearing Cone	RH
14	AT24183	1	KIT	(NO LONGER AVAILABLE AS AN ASSEMBLY, ORDER INDIVIDUAL PARTS) Z=9/46, (ORDER AL67275, T30253, (16) L40557) (SUB FOR AL39098)
15	T30253	1	HOUSING	-
16	L40557	8	RIVET	7/16"X1-11/16", (SUB FOR L29871)
17	AL67275	1	Housing	Z= 9/46

DIFFERENTIAL (WITH 2 DIFFERENTIAL PINIONS)
