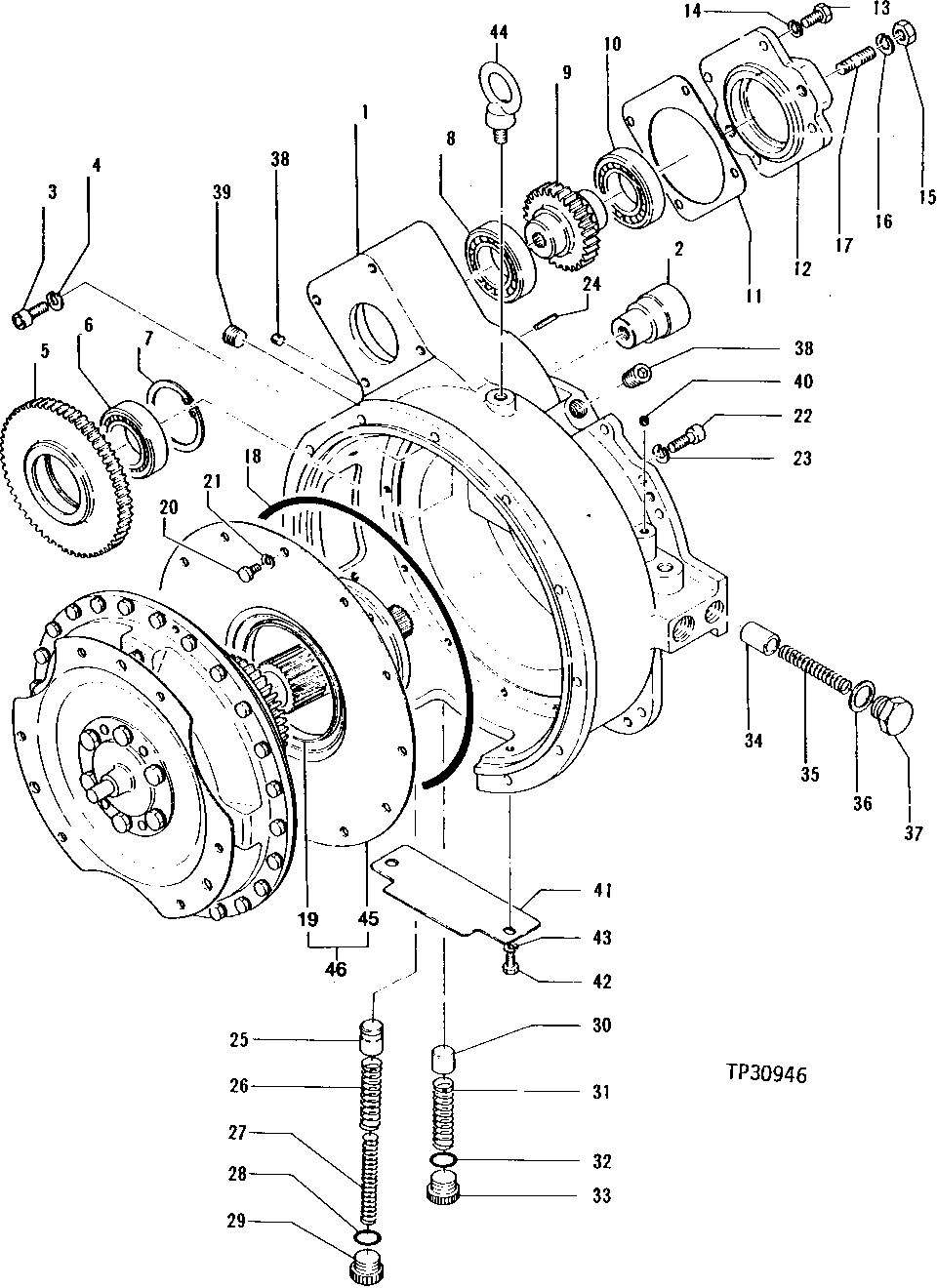

TORQUE CONVERTER TRANSMISSION HOUSING [01F10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T115448	1	HOUSING	-
2	T115449	1	SUPPORT	-
3	T115450	1	BOLT	-
4	12M6791	1	Lock Washer	10.200 MM
5	T115451	1	GEAR	-
6	T115452	1	CYLINDRICAL ROLLER BEARING	-
7	40M7115	1	Snap Ring	-
8	JD7692	1	Ball Bearing	(SUB FOR T115531)
9	T115453	1	GEAR	-
10	T115501	1	BEARING	-
11	T145281	1	GASKET	(SUB FOR T115454) (K1)
12	T115455	1	ADAPTER	-
13	19M8007	4	Cap Screw	M10 X 25
14	12M6791	4	Lock Washer	10.200 MM
15	14M7357	2	Nut	M12
16	12M7067	2	Lock Washer	12 MM, (SUB FOR 12M6268)
17	T115456	2	BOLT	-
18	T115457	1	O-RING	(K1) (K2)
19	T115460	1	SEAL	-
20	19M7162	12	Cap Screw	M8 X 16
21	12M7065	12	Lock Washer	8 MM
22	T115461	6	BOLT	-
23	12M6791	6	Lock Washer	10.200 MM
24	34M3853	1	Spring Pin	4 X 32 MM, (SUB FOR T116348)
25	T116160	1	Piston	-
26	T115462	1	SPRING	-
27	T115463	1	SPRING	-
28	T116161	1	O-RING	(K2)
29	T115464	1	Plug	-
30	T116159	1	PIN	-
31	T115465	1	SPRING	-
32	T116161	1	O-RING	(K2)
33	T115464	1	Plug	-
34	T115466	1	PISTON	-
35	T115467	1	SPRING	-
36	T115468	1	SEALING WASHER	-
37	T115469	1	PLUG	-
38	TH100653	2	Fitting Plug	(SUB FOR T115470, THIS APPLICATION)
39	TH100648	1	Fitting Plug	(SUB FOR T116158, THIS APPLICATION)
40	TH100689	1	Fitting Plug	(SUB FOR T116156, THIS APPLICATION)
41	T115471	2	COVER	-
42	19M7964	4	Cap Screw	M8 X 12
43	12M7065	4	Lock Washer	8 MM
44	-	1	Part 44	( T115472 NO LONGER AVAILABLE)
45	T115459	1	PLATE	-
46	AT108272	1	PLATE	-

TORQUE CONVERTER TRANSMISSION HOUSING [01F10]
