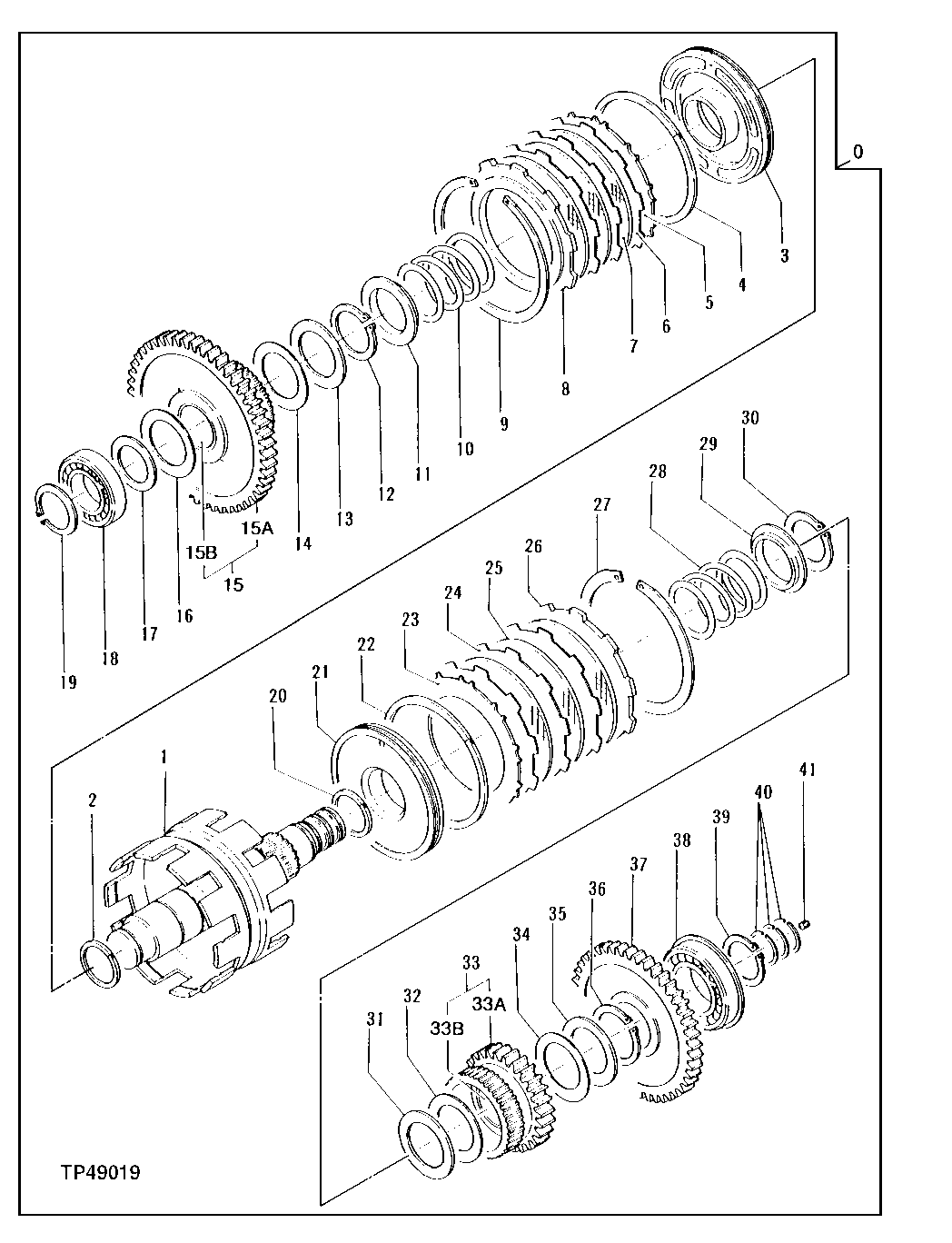

GEARS, SHAFTS, CLUTCHES AND BEARINGS (FIRST AND THIRD GEAR) [01B18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT108266	1	CLUTCH	(COMPLETE)
1	T115533	1	SHAFT	-
2	T116151	1	RING	-
3	T115521	1	PISTON	-
4	T116154	1	PISTON RING	-
5	T115522	1	CLUTCH PLATE	-
6	T115523	3	PLATE	(K)
7	T145313	3	CLUTCH DISK	(K) (SUB FOR T115524)
8	T115525	1	CLUTCH PLATE	(K)
9	T115526	1	SNAP RING	-
10	T115527	1	SPRING	-
11	T115528	1	GUIDE	-
12	40M7066	1	Snap Ring	-
13	T116153	1	WASHER	-
14	T115529	1	THRUST BEARING RACE	-
15	AT108012	1	GEAR	-
16	T115529	1	THRUST BEARING RACE	-
17	T115530	1	WASHER	-
18	JD7692	1	Ball Bearing	(SUB FOR T115531)
19	40M7047	1	Snap Ring	-
20	T116151	1	RING	-
21	T115521	1	PISTON	-
22	T116154	1	PISTON RING	-
23	T115522	1	CLUTCH PLATE	-
24	T115523	3	PLATE	(K)
25	T145313	3	CLUTCH DISK	(K) (SUB FOR T115524)
26	T115525	1	CLUTCH PLATE	(K)
27	T115526	1	SNAP RING	-
28	T115527	1	SPRING	-
29	T115528	1	GUIDE	-
30	40M7066	1	Snap Ring	-
31	T116153	1	WASHER	-
32	T115529	1	THRUST BEARING RACE	-
33	AT108063	1	GEAR	-
34	T115529	1	THRUST BEARING RACE	-
35	T116153	1	WASHER	-
36	40M7066	1	Snap Ring	-
37	T115817	1	GEAR	-
38	T115532	1	BALL BEARING	-
39	40M7047	1	Snap Ring	-
40	T116155	3	SNAP RING	-
41	TH100689	2	Fitting Plug	(SUB FOR T116156, THIS APPLICATION)

GEARS, SHAFTS, CLUTCHES AND BEARINGS (FIRST AND THIRD GEAR) [01B18]
