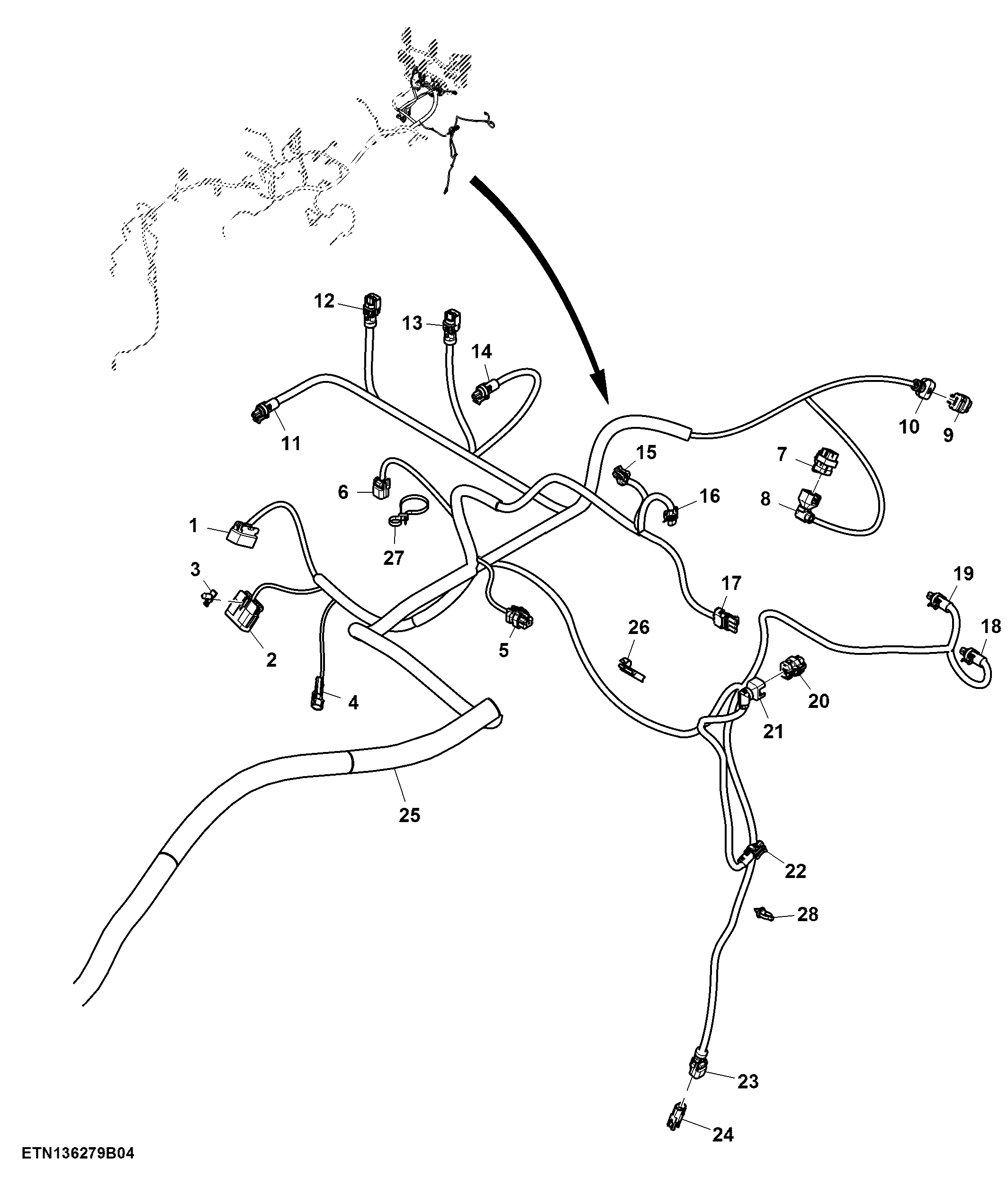

Wiring Harness, Chassis, T2 Engine (4/4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M10627	1	Elec. Connector Accessory	-
1	57M8920	1	Elec. Connector Housing	XX022, Chassis to Tracks Mid-Frame Harness Interconnect 2
1	RWA11102	1	Repair Wire Assembly	Cavity G, H, A
1	RWA11097	1	Repair Wire Assembly	Cavity C, L, F, D, E, K, J, B
2	57M9522	1	Elec. Connector Housing	XX018, Chassis to Tracks Mid-Frame Harness Interconnect 1
2	57M10627	1	Elec. Connector Accessory	-
2	RWA11098	1	Repair Wire Assembly	Cavity C, L, M, N, F, D, E, K, J, B
2	RWA11103	1	Repair Wire Assembly	Cavity P, G, H, A
3	57M8910	1	Clip	-
4	57M7256	1	Elec. Connector Housing	S550, Hydraulic Clean Oil Reservoir Level Switch
4	57M9712	1	Elec. Connector Accessory	-
4	RWA11082	1	Repair Wire Assembly	Cavity B, A
5	57M9817	1	Elec. Connector Housing	B208, Right Steering Cross Shaft Speed Sensor
5	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
6	57M8633	1	Elec. Connector Accessory	-
6	RWA11097	1	Repair Wire Assembly	Cavity B, A
6	57M8924	1	Elec. Connector Housing	Y716, Brake Proportional Solenoid
7	57M9786	1	Elec. Connector Housing	B698, Rear Hitch Position Sensor
7	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
8	57M10229	1	Elec. Connector Accessory	-
9	57M9780	1	Elec. Connector Housing	XX721, Rear Chassis to Draft Sensor Extension Harness Interconnect
9	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
10	57M9838	1	Elec. Connector Accessory	-
11	57M8625	1	Elec. Connector Housing	B229, Right Rear Brake Pressure Sensor
11	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
12	57M8924	1	Elec. Connector Housing	Y718, Right Brake On/ Off Solenoid
12	RWA11097	1	Repair Wire Assembly	Cavity B, A
13	RWA11097	1	Repair Wire Assembly	Cavity B, A
13	57M8924	1	Elec. Connector Housing	Y717, Left Brake On/ Off Solenoid
14	57M8625	1	Elec. Connector Housing	B228, Left Rear Brake Pressure Sensor
14	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
15	57M8625	1	Elec. Connector Housing	B710, Suspension Pressure Sensor
15	57M8624	1	Elec.Connect Locking Device	-
15	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
16	57M7254	1	Elec. Connector Housing	Y684, Tracks Suspension Bleed Valve
16	57M9712	1	Elec. Connector Accessory	-
16	RWA11083	1	Repair Wire Assembly	Cavity A, B
17	RE12364	1	Electrical Connector Assy	M302, Tracks Suspension Compressor Motor
17	RWA11092	1	Repair Wire Assembly	Cavity B, A
18	57M8625	1	Elec. Connector Housing	B263, Backup Hydraulic Pump Pressure Sensor
18	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
19	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
19	57M8625	1	Elec. Connector Housing	B262, Main Hydraulic Pump Pressure Sensor 2
20	57M9817	1	Elec. Connector Housing	B201, Left Steering Cross Shaft Speed Sensor
20	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
21	57M10229	1	Elec. Connector Accessory	-
22	57M8625	1	Elec. Connector Housing	B261, Main Hydraulic Pump Pressure Sensor
22	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
23	57M8924	1	Elec. Connector Housing	Y500, Rear PTO Solenoid
23	RWA11097	1	Repair Wire Assembly	Cavity B, A
24	57M9222	1	Elec. Connector Housing	Dust Cap
24	57M8633	1	Elec. Connector Accessory	-
25	RE585880	1	Chassis Wiring Harness	-
26	57M11952	6	Elec. Connector Accessory	-
27	57M10421	1	Elec. Connector Accessory	-
28	RE258807	7	Tie Band	-

Wiring Harness, Chassis, T2 Engine (4/4)
