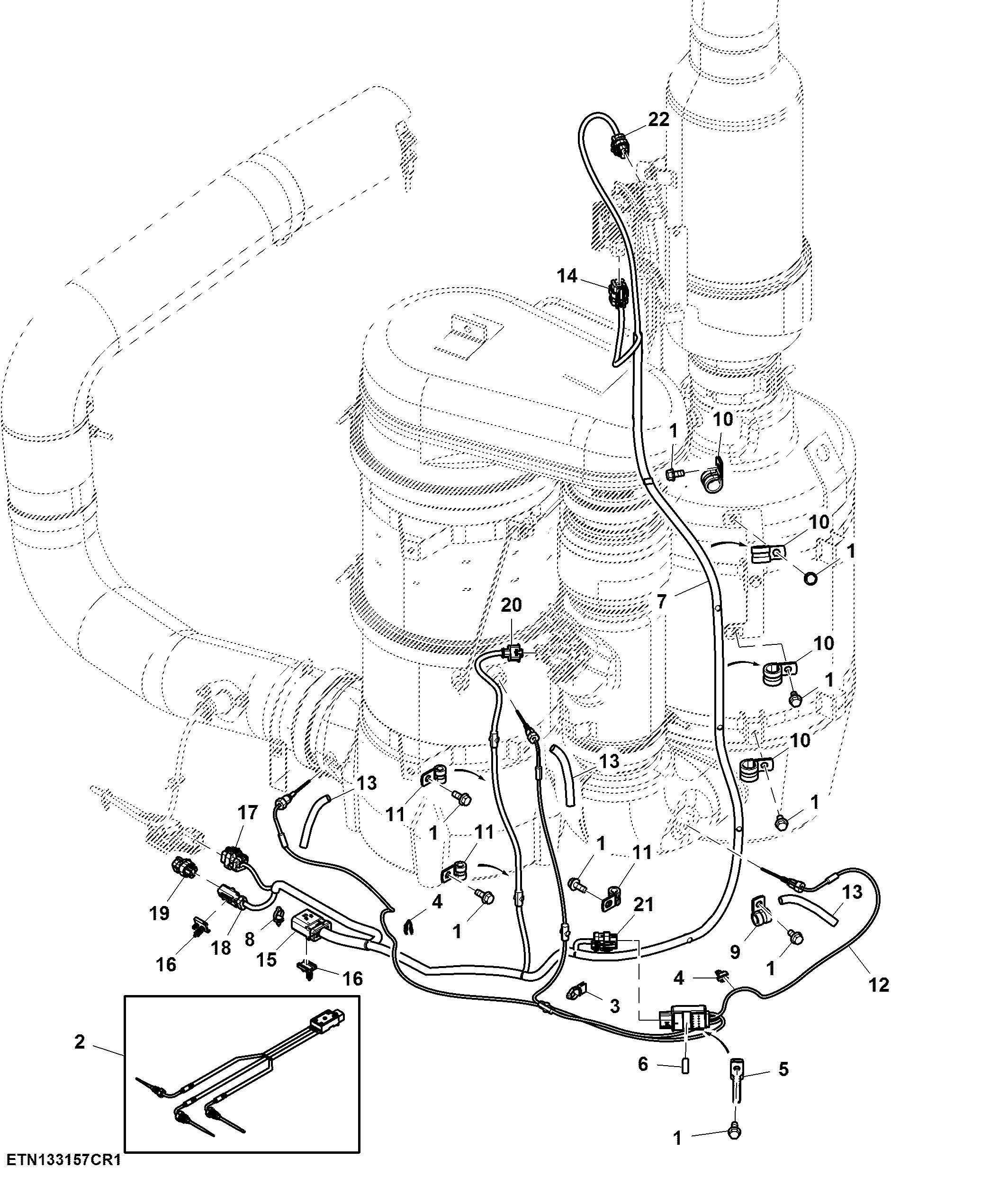

Wiring Harness, Aftertreatment Device, FT4 Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M10365	9	Screw	M8 X 20
2	RE577917	1	Temperature Sensor	INCLUDES (3) HXE69375 AND DZ104353
3	57M10362	1	Clamp	-
4	L156248	2	Clamp	-
5	R313267	1	Clamp	-
6	R313276	1	Insulator	-
7	RE575883	1	Wiring Harness	-
8	RE258807	3	Tie Band	-
9	T269640	1	Clamp	-
10	T269641	4	Clamp	-
11	T269643	3	Clamp	-
12	DZ104353	1	Temperature Sensor	-
13	HXE69375	3	Insulator	-
14	57M9787	1	Elec. Connector Housing	B5503, NOX Sensor, SCR Outlet
15	57M9804	1	Elec. Connector Housing	X003B, Chassis Interconnect
16	57M9940	2	Elec. Connector Accessory	-
17	57M9787	1	Elec. Connector Housing	B5502, NOx Sensor, DPF Outlet
18	57M9776	1	Elec. Connector Housing	R5605, CAN Termination Resistor
19	57M11134	1	Elec. Connector Housing	-
20	57M10315	1	Elec. Connector Housing	Y5020, SCR Dosing Control Valve
21	57M9817	1	Elec. Connector Housing	B5204, After Treatment Temperature Module
22	57M9780	1	Elec. Connector Housing	B5109, DPF DELTA Pressure - Face Seal

Wiring Harness, Aftertreatment Device, FT4 Engine
