Открытый узел

Oil Lines, Steering Pump (2/2)

Oil Lines, Steering Pump (2/2)

Oil Lines, Steering Pump (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

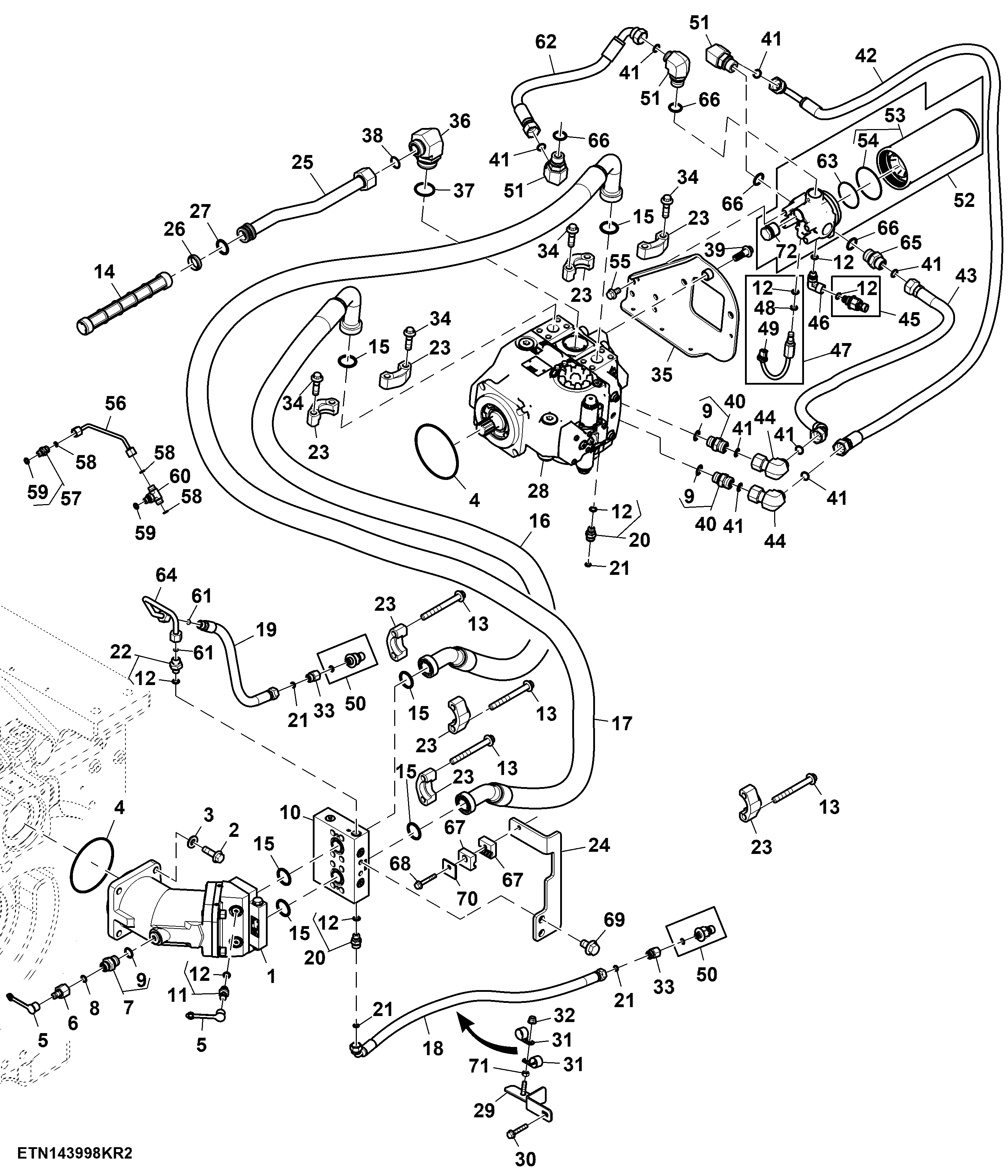

Oil Lines, Steering Pump (2/2)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE586932	1	Hydraulic Motor	-
2	19M7791	4	Bolt	M12 X 40
3	R135895	4	Washer	-
4	T34448	2	O-Ring	-
5	R77175	3	Cover	-
6	RE43774	1	Diagnostic Coupling	-
7	38H5076	1	Adapter Fitting	-
8	T77857	1	O-Ring	-
9	51M7045	3	O-Ring	19.300 X 2.200 mm
10	RE578841	1	Hyd Actuated Control Valve	Hydro Loop Override Valve V202
11	RE190805	2	Diagnostic Coupling	-
12	51M7041	7	O-Ring	11.300 X 2.200 mm
13	R556610	8	Screw	-
14	R53169	1	Screen	-
15	T78313	6	O-Ring	-
16	RE583606	1	Hydraulic Hose	Upper Steering Pump to Motor
17	RE583607	1	Hydraulic Hose	Lower Steering Pump to Motor
18	RE583605	1	Hydraulic Hose	Lower Loop Sensor
19	RE586717	1	Hydraulic Hose	Upper Loop Sensor
20	38H5002	2	Adapter Fitting	-
21	T77613	4	O-Ring	-
22	RE586736	1	Adapter Fitting	INCLUDES 51M7041
23	R275750	8	Flange Fitting	-
24	R565423	1	Bracket	-
25	RE583639	1	Oil Line	-
26	R331558	1	Spacer	-
27	A3606R	1	O-RING	-
28	RE586103	1	Hydraulic Pump	-
29	RE583467	1	Support	-
30	19M7799	1	Screw	M8 X 45
31	57M9855	2	Clamp	-
32	14M7396	1	Lock Nut	M8
33	R340744	2	Adapter Fitting	-
34	R285403	8	Cap Screw	-
35	RE586699	1	Support	-
36	38H5401	1	Adapter Fitting	-
37	51M7049	1	O-Ring	38.600 X 2.900 mm
38	T76938	1	O-Ring	-
39	R272923	3	Cap Screw	M12 X 37.200
40	38H5004	2	Adapter Fitting	-
41	T77932	8	O-Ring	-
42	RE586607	1	Hydraulic Hose	Filter Outlet
43	RE586606	1	Hydraulic Hose	Filter Inlet
44	38H5385	2	Adapter Fitting	-
45	RE581543	1	Pressure Sensor	Hydro Charge Pressure Sensor
46	AL117978	1	Adapter Fitting	-
47	RE573828	1	Pressure Switch	Steering Charge Pressure Switch S632
48	R27976	1	O-Ring	-
49	57M7254	1	Elec. Connector Housing	-
49	57M7289	1	Elec.Connect Locking Device	-
50	RE587112	2	Pressure Sensor	Right Hydro Pressure Sensor B203
51	38H5166	3	Elbow Fitting	-
52	RE585872	1	Filter Head	-
53	RE577250	1	Hydraulic Filter	INCLUDES R319582
54	R319582	1	O-Ring	ORDER TR119745
54	TR119745	1	O-Ring	-
55	19M7784	4	Screw	M10 X 20
56	RE291209	1	Oil Line	-
57	38H5001	1	Adapter Fitting	-
58	T77814	3	O-Ring	-
59	51M7040	2	O-Ring	9.300 X 2.200 mm
60	38H5215	1	Union Fitting	-
61	R565006	2	Sealing Ring	-
62	RE586608	1	Hydraulic Hose	Filter Bi-Pass
63	R319585	1	Wear Ring	ORDER R567277
63	R567277	1	Ring	-
64	RE586716	1	Oil Line	-
65	38H5152	1	Adapter Fitting	-
66	51M7047	4	O-Ring	23.600 X 2.900 mm
67	HXE59899	1	Clamp	-
68	19M7797	1	Screw	M6 X 40
69	19M7787	2	Screw	M12 X 20
70	HXE59900	2	Cover	-
71	14M7273	1	Nut	M8
72	R27474	1	Drain Plug	-
