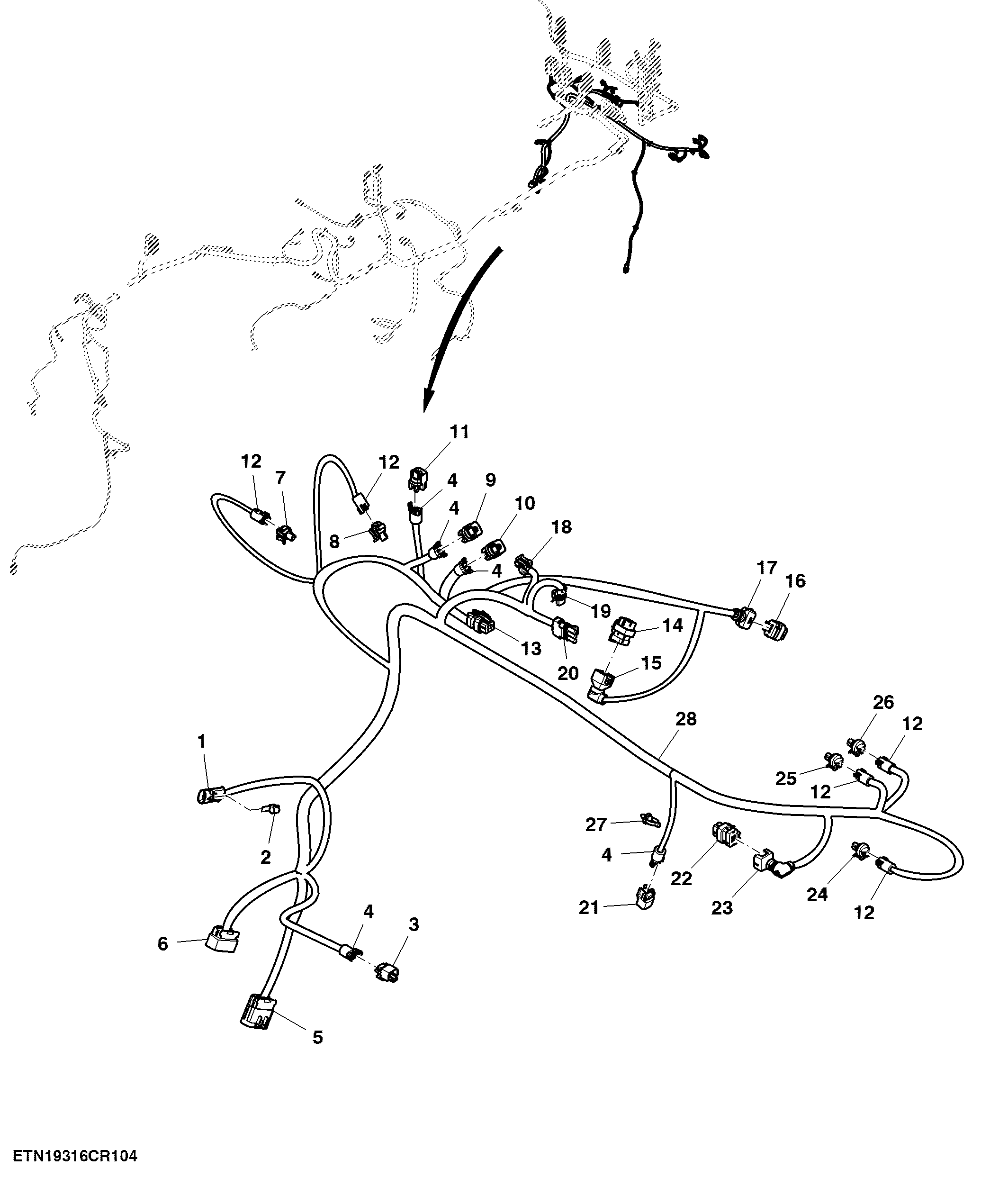

Wiring Harness, Chassis, T2 Engine (4/4) ( - 914100)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RWA11082	2	Repair Wire Assembly	Cavity A, B
1	57M7256	1	Elec. Connector Housing	S550
2	57M11794	1	Elec. Connector Accessory	-
3	57M8924	1	Elec. Connector Housing	B694
3	RWA11099	2	Repair Wire Assembly	Cavity A, B
4	57M9556	5	Elec. Connector Accessory	-
5	57M9522	1	Elec. Connector Housing	X018A
5	57M10627	1	Elec. Connector Accessory	-
5	RWA11098	9	Repair Wire Assembly	Cavity C, B, D, J, M, E, L, F, K
5	RWA11103	3	Repair Wire Assembly	Cavity A, G, H
6	57M8920	1	Elec. Connector Housing	X022A
6	57M10627	1	Elec. Connector Accessory	-
6	RWA11098	10	Repair Wire Assembly	Cavity N, B, L, K, J, E, D, C, F, M
6	RWA11102	3	Repair Wire Assembly	Cavity H, A, G
7	RWA11097	3	Repair Wire Assembly	Cavity 1, 2, 3
7	57M8625	1	Elec. Connector Housing	B228
8	57M8625	1	Elec. Connector Housing	B229
8	RWA11097	3	Repair Wire Assembly	Cavity 1, 2, 3
9	57M8924	1	Elec. Connector Housing	Y718
9	RWA11097	2	Repair Wire Assembly	Cavity A, B
10	57M8924	1	Elec. Connector Housing	Y717
10	RWA11097	2	Repair Wire Assembly	Cavity A, B
11	57M8924	1	Elec. Connector Housing	Y716
11	RWA11097	2	Repair Wire Assembly	Cavity A, B
12	57M11405	5	Elec. Connector Accessory	-
13	57M9817	1	Elec. Connector Housing	B208
13	RWA11029	4	Repair Wire Assembly	Cavity 1, 2, 3, 4
14	57M9786	1	Elec. Connector Housing	B698
14	RWA11027	3	Repair Wire Assembly	Cavity 1, 2, 3
15	57M10229	1	Elec. Connector Accessory	-
16	57M9780	1	Elec. Connector Housing	X721A
16	RWA11029	3	Repair Wire Assembly	Cavity 1, 2, 3
17	57M9838	1	Elec. Connector Accessory	-
18	57M8625	1	Elec. Connector Housing	B710
18	57M8624	1	Elec.Connect Locking Device	-
18	RWA11097	3	Repair Wire Assembly	Cavity 1, 2, 3
19	57M7254	1	Elec. Connector Housing	Y684
19	57M9712	1	Elec. Connector Accessory	-
19	RWA11083	2	Repair Wire Assembly	Cavity A, B
20	RE12364	1	Electrical Connector Assy	M302
20	RWA11092	2	Repair Wire Assembly	Cavity A, B
21	57M8924	1	Elec. Connector Housing	Y500
21	RWA11097	2	Repair Wire Assembly	Cavity A, B
22	57M9817	1	Elec. Connector Housing	B201
22	RWA11029	4	Repair Wire Assembly	Cavity 1, 2, 3, 4
23	57M9848	1	Elec. Connector Accessory	-
24	57M8625	1	Elec. Connector Housing	B261
24	RWA11097	3	Repair Wire Assembly	Cavity 1, 2, 3
25	57M8625	1	Elec. Connector Housing	B263
25	RWA11097	3	Repair Wire Assembly	Cavity 1, 2, 3
26	57M8625	1	Elec. Connector Housing	B262
26	RWA11097	3	Repair Wire Assembly	Cavity 1, 2, 3
27	RE258807	6	Tie Band	-
28	RE572011	1	Chassis Wiring Harness	-

Wiring Harness, Chassis, T2 Engine (4/4) ( - 914100)
