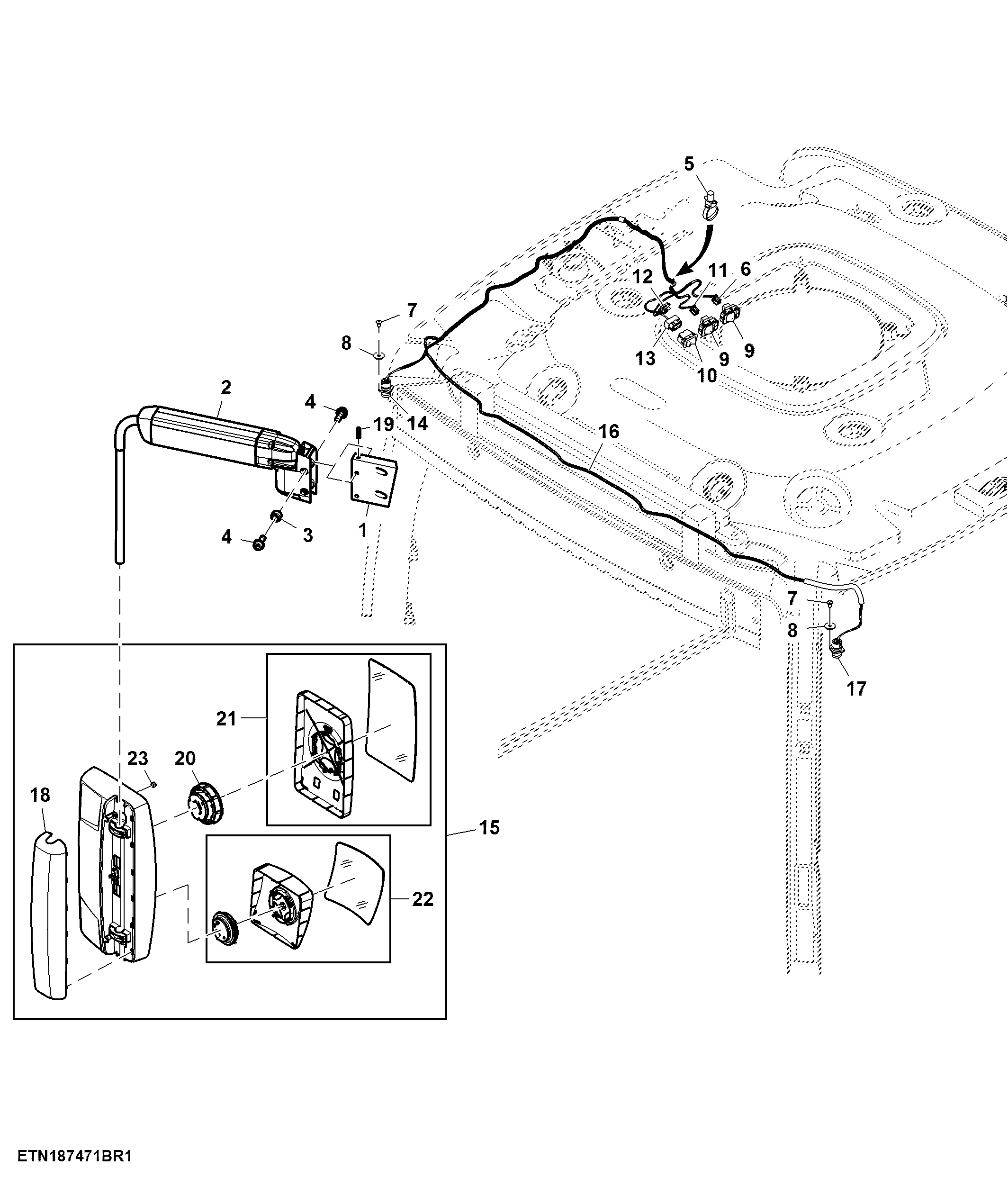

Telescopic External Mirror, Power, RH (918001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R567777	1	Mounting Parts	SUB FOR R537556
2	RE590509	1	Holder	SUB FOR RE586589
3	34M7266	2	Spring Pin	16 X 10 mm
4	19M9174	4	Screw	M8 X 20
5	RE258807	1	Tie Band	-
6	57M9078	1	Elec. Connector Housing	S307, Mirror Adjustment Switch
6	RWA11110	1	Repair Wire Assembly	-
7	37M7382	4	Screw	-
8	24M7100	4	Washer	6.600 X 22 X 2 mm
9	RE236245	2	Switch	-
10	AL181124	1	Toggle/Rocker Switch	-
11	57M9078	1	Elec. Connector Housing	S308, Mirror Extend Switch
11	RWA11110	1	Repair Wire Assembly	-
12	RWA11083	1	Repair Wire Assembly	-
12	57M7289	1	Elec.Connect Locking Device	-
12	57M7254	1	Elec. Connector Housing	M103, Automatic Temperature Control Circulation Blower Motor Cavity A, B
13	57M7896	1	Electrical Connector Assy	S306, Mirror heater Switch Cavity U, Y, Z
13	RWA10602	1	Repair Wire Assembly	-
14	57M8205	1	Elec. Connector Housing	X950, Right Power Mirror Interconnect
14	RWA11178	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
15	RE574883	1	Rear View Mirror	-
16	RE307735	1	Roof Wiring Harness	-
17	57M8205	1	Elec. Connector Housing	X951, Left Power Mirror Interconnect
17	RWA11178	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
18	L214622	1	Cover	-
19	34M7038	1	Spring Pin	6 X 20 mm
20	AL225537	1	Actuator	-
21	AL225535	1	Rear View Mirror	-
22	AL225536	1	Rear View Mirror	-
23	14M7165	8	Lock Nut	M6
