Открытый узел

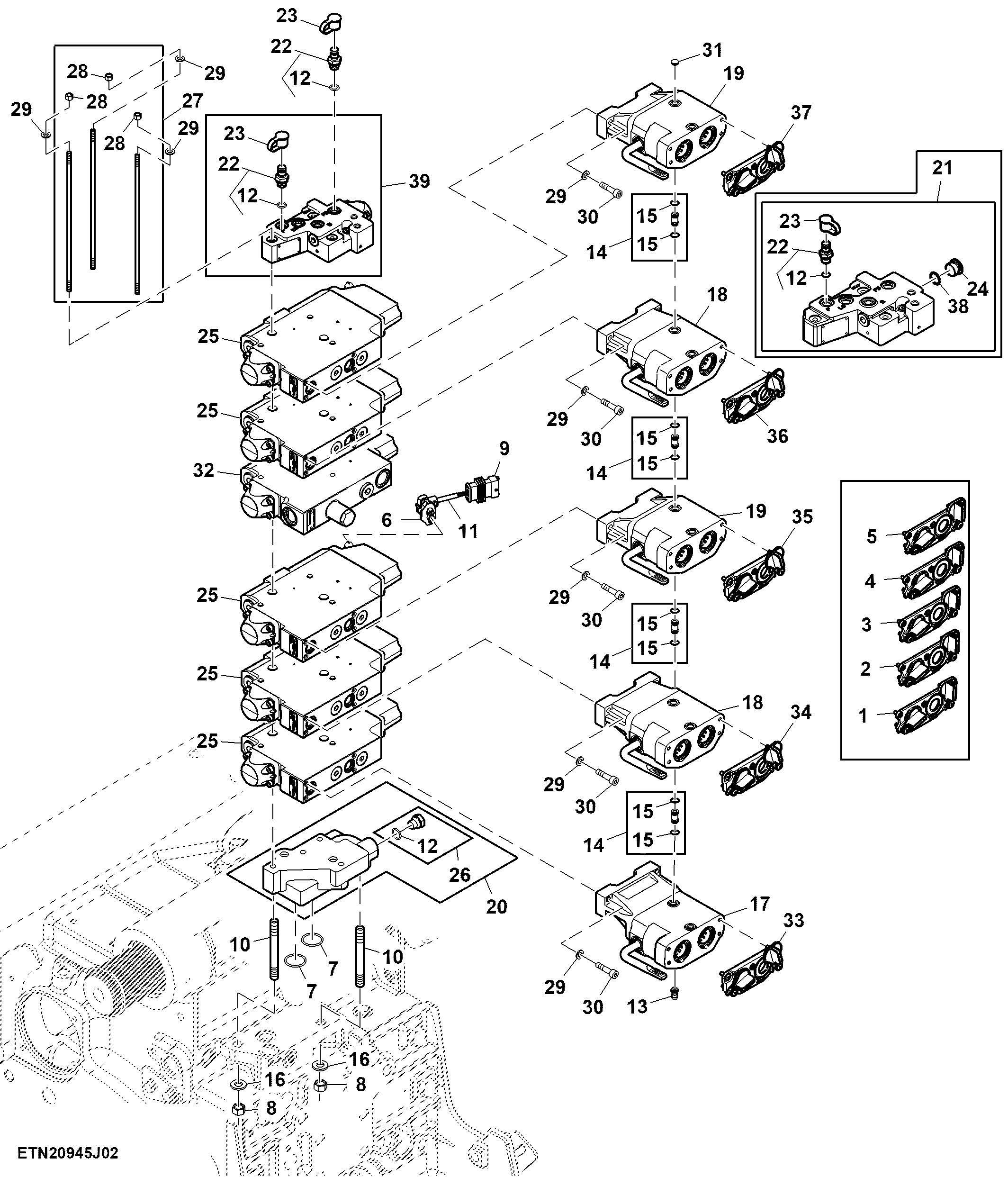

Selective Control Valve, 5 Rear SCV, W/ Hitch, Standard Flow

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE289055	1	Cover	Number I, Green, SCV Coupler ORDER RE574941
2	RE289056	1	Cover	Number II, Blue, SCV Coupler ORDER RE574660
3	RE289057	1	Cover	Number III, Brown, SCV Coupler ORDER RE574942
4	RE289058	1	Cover	Number IV, Black, SCV Coupler ORDER RE574943
5	RE289059	1	Cover	Number V, Violet, SCV Coupler ORDER RE574944
6	57M9498	1	Elec. Connector Housing	To SCV Valve
7	T122075	2	O-Ring	-
8	14M7275	2	Nut	M12
9	57M11354	1	Elec. Connector Housing	To Chassis Harness
9	57M9500	1	Elec. Connector Accessory	-
9	57M7259	1	Elec. Connector Seal	-
10	42M7064	2	Stud	-
11	RE342632	1	Wiring Harness	-
12	51M7041	4	O-Ring	11.300 X 2.200 mm
13	R267668	2	Hose Fitting	-
14	RE272882	8	Tube	-
15	R10093	16	O-Ring	-
16	24M7240	2	Washer	13 X 25 X 3 mm
17	RE559659	1	Breakaway Coupler	Low Profile SUB FOR RE262015
18	RE559660	2	Breakaway Coupler	Mid Profile SUB FOR RE262016
19	RE559661	2	Breakaway Coupler	High Profile SUB FOR RE262017
20	RE260570	1	Manifold	-
21	RE292728	1	Manifold	ORDER RE271469
22	RE190805	3	Diagnostic Coupling	-
23	R77175	3	Cover	-
24	R116115	1	Fitting	ALSO ORDER 51M7045; USE WITH RE292728
25	RE588375	5	Selective Control Valve	SUB FOR RE580227 OR RE337466
26	RE46684	1	Fitting Plug	-
27	RE283443	1	Stud Kit	USE WITH BRE10048
27	RE283444	1	Stud Kit	USE WITH BRE10123
28	14M7327	3	Lock Nut	M8
29	24M7095	23	Washer	8.400 X 15 X 1.600 mm
30	R266977	20	Socket Head Screw	-
31	R267667	2	Cap	-
32	RE308338	1	Selective Control Valve	-
32	RE588379	1	Selective Control Valve	SUB FOR RE580524
33	RE574941	1	Cover	Number I, Green, SCV Coupler
34	RE574660	1	Cover	Number II, Blue, SCV Coupler
35	RE574942	1	Cover	Number III, Brown, SCV Coupler
36	RE574943	1	Cover	Number IV, Black, SCV Coupler
37	RE574944	1	Cover	Number V, Violet, SCV Coupler
38	51M7045	1	O-Ring	19.300 X 2.200 mm, USE WITH RE292728
39	RE271469	1	Manifold	-

Selective Control Valve, 5 Rear SCV, W/ Hitch, Standard Flow
