Открытый узел

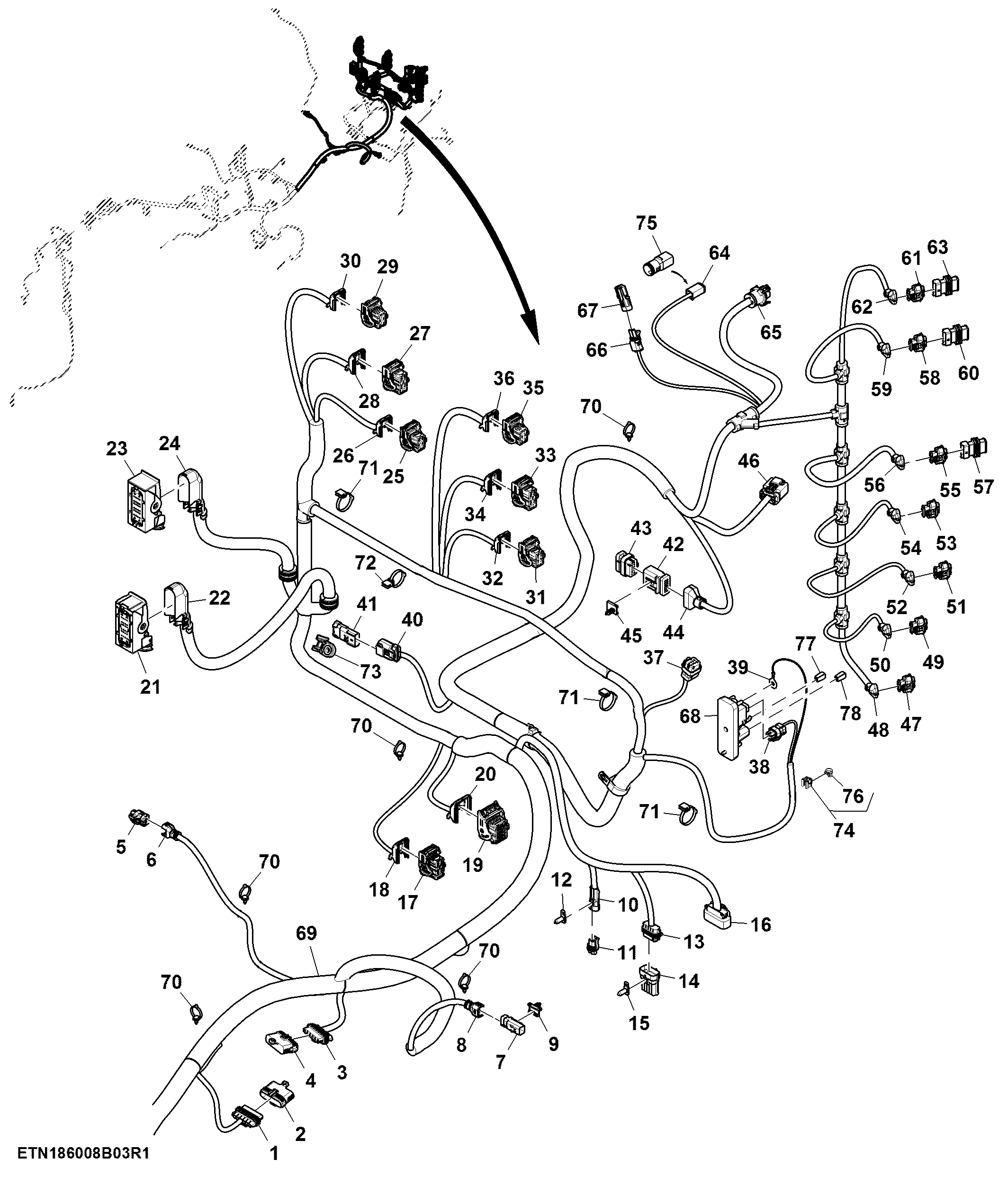

Chassis Wiring Harness, T3 Engine (3/4) (920001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8326	1	Electrical Connector Assy	-
1	57M10432	1	Elec.Connect Locking Device	-
1	RWA11089	1	Repair Wire Assembly	Cavity A, B, C, D, E, F
1	57M9406	1	Elec. Connector Accessory	SPK02, Circuit 0010 Splice Pack
2	57M8611	1	Electrical Connector Assy	-
3	57M9406	1	Elec. Connector Accessory	SPK01, Circuit 0050 Splice Pack
3	57M8326	1	Electrical Connector Assy	-
3	57M10432	1	Elec.Connect Locking Device	-
3	RWA11089	1	Repair Wire Assembly	Cavity B, E, D, A, F
4	57M8611	1	Electrical Connector Assy	-
5	57M9772	1	Elec. Connector Housing	XX023-A, Fuel Level Sensor Jumper/Chassis Interconnect
5	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
6	57M9837	1	Elec. Connector Accessory	-
7	57M9776	1	Elec. Connector Housing	XX060, Chassis to Secondary Brake Harness Interconnect
7	RWA11025	1	Repair Wire Assembly	Cavity 1
8	57M9837	1	Elec. Connector Accessory	-
9	57M9940	1	Elec. Connector Accessory	-
10	57M7256	1	Elec. Connector Housing	XX014, Chassis to Backup Alarm Harness Interconnect
10	RWA11082	1	Repair Wire Assembly	Cavity B, A
10	57M9712	1	Elec. Connector Accessory	-
11	57M7254	1	Elec. Connector Housing	Dust Cap
11	57M9712	1	Elec. Connector Accessory	-
12	57M8910	1	Clip	-
13	57M7262	1	Elec. Connector Housing	XX116, Rear Option Configuration Connector
13	CB01489384	1	Elec. Connector Accessory	-
13	RWA11083	1	Repair Wire Assembly	Cavity G, E, D, F, A, B, C, J, K, H
14	57M9213	1	Elec. Connector Housing	Dust Cap
14	CB01489384	1	Elec. Connector Accessory	-
15	57M8910	1	Clip	-
16	57M8156	1	Elec. Connector Housing	XX330, Chassis to Transmission Harness Interconnect 1
16	57M11996	1	Elec. Connector Accessory	-
16	RWA10703	1	Repair Wire Assembly	Cavity E, D, C, B, N, L, K, M, G, R, P, F
16	RWA11102	1	Repair Wire Assembly	Cavity A
17	RWA11030	1	Repair Wire Assembly	Cavity A1, F1, H3, A3, A2, B2, B1, G1, G2, J3, D2, F4, J2, C1, H1, K2, E4, H2, B3, G3, K1
17	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L4, M2, M3, M4, M1
17	57M10614	1	Elec. Connector Housing	A570-1, Rear Chassis Control Unit Connector
18	57M10613	1	Elec. Connector Housing	-
19	57M10367	1	Elec. Connector Housing	A570-2, Rear Chassis Control Unit Connector
19	RWA11030	1	Repair Wire Assembly	Cavity 7, 9, 19, 22, 23, 24, 11, 12, 35, 34, 20, 33, 25, 13, 28, 14, 26, 37, 40, 38, 39
19	RWA11034	1	Repair Wire Assembly	Cavity 1, 4, 5, 2, 3
19	RWA11032	1	Repair Wire Assembly	Cavity 6, 53, 18, 29, 41, 42
20	57M10401	1	Elec. Connector Accessory	-
21	RWA11118	1	Repair Wire Assembly	Cavity 2, 1, 27, 28
21	RWA11029	1	Repair Wire Assembly	Cavity 26, 25, 24, 23, 20, 19, 16, 15, 13, 11, 10, 3
21	57M11523	1	Elec. Connector Housing	XX501, Cab to Chassis Harness Interconnect 2
22	57M11528	1	Elec. Connector Accessory	-
23	57M11524	1	Elec. Connector Housing	XX500, Cab to Chassis Harness Interconnect 1
23	RWA11029	1	Repair Wire Assembly	Cavity 26, 25, 17, 24, 23, 21, 20, 19, 18, 16, 15, 14, 13, 12, 11, 10, 9, 8, 7, 6, 3
23	RWA11026	1	Repair Wire Assembly	Cavity 22
23	RWA11118	1	Repair Wire Assembly	Cavity 2, 1, 27, 28
24	57M11528	1	Elec. Connector Accessory	-
25	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A4, B1, B2, B4, C2, C3, D3, E2, F2, F3
25	RWA11032	1	Repair Wire Assembly	Cavity G1, G4
25	57M10605	1	Elec. Connector Housing	A985-1, Activecommand Steering A-Box Connector
26	57M10604	1	Elec. Connector Housing	-
27	57M10614	1	Elec. Connector Housing	A985-2, Activecommand Steering A-Box Connector
27	RWA11030	1	Repair Wire Assembly	Cavity A1, K3, A2, C2, C3, F4, A4, C4, F2, K4, H3, H2, J2, H4, E1, G2, G3, B4, E2, K1, J4, K2, J3, B1, D3
27	RWA11032	1	Repair Wire Assembly	Cavity L1, L4, L3, L2, M3, M2, M4, M1
28	57M10613	1	Elec. Connector Housing	-
29	57M10611	1	Elec. Connector Housing	A985-3, Activecommand Steering A-Box Connector
29	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C3, C4, D1, D2, D3, E2, E3, F1, F3, F4
29	RWA11032	1	Repair Wire Assembly	Cavity G2, G4, H1, H2
30	57M10604	1	Elec. Connector Housing	-
31	57M10605	1	Elec. Connector Housing	A986-1, Activecommand Steering B-Box Connector
31	RWA11030	1	Repair Wire Assembly	Cavity A2, B1, C3, C4, D2, D3, E4, F3, F4
31	RWA11032	1	Repair Wire Assembly	Cavity G1, G2, G4, H2
32	57M10604	1	Elec. Connector Housing	-
33	57M10614	1	Elec. Connector Housing	A986-2, Activecommand Steering B-Box Connector
33	RWA11032	1	Repair Wire Assembly	Cavity L1, L4, L2, M2, M4, M1
33	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A3, C2, C3, A4, C4, F2, K4, H3, H2, J2, D4, E1, G2, G3, E2, G4, K1, J4, K2, J3, B1
34	57M10613	1	Elec. Connector Housing	-
35	57M10611	1	Elec. Connector Housing	A986-3, Activecommand Steering B-Box Connector
35	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C3, C4, D1, D2, D3, E3, F1, F3, F4
35	RWA11032	1	Repair Wire Assembly	Cavity G1, G2, H1, H2
36	57M10604	1	Elec. Connector Housing	-
37	57M9792	1	Elec. Connector Housing	XX780, Cab to Chassis Harness Interconnect
37	RWA11029	1	Repair Wire Assembly	Cavity 4, 5, 6, 7
38	57M9772	1	Elec. Connector Housing	A100-2, Implement Power Relay Module Connector
38	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
39	57M11530	1	Elec. Connector Terminal	A100-3, Implement Power Relay Module Connector
40	57M10303	1	Elec. Connector Housing	XX208, Chassis to Trailer Brake Extension Interconnect
40	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
41	57M10304	1	Elec. Connector Housing	Dust Cap
42	57M9805	1	Elec. Connector Housing	XX790-1, HYD Trailer Brake Jumper/ Chassis Interconnect
42	RWA11025	1	Repair Wire Assembly	Cavity 2, 1, 3, 6, 5, 4, 11, 7, 10, 9, 8
43	57M9801	1	Elec. Connector Housing	Dust Cap
44	57M9844	1	Elec. Connector Accessory	-
45	57M9939	1	Elec. Connector Accessory	-
46	57M10299	1	Elec. Connector Housing	XX016, Chassis to Rear Trailer Light Extension Harness Interconnect
46	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8
47	57M9498	1	Elec. Connector Housing	A701, Selective Control Valve Unit 1
47	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
48	57M11897	1	Elec. Connector Accessory	-
49	57M9498	1	Elec. Connector Housing	A702, Selective Control Valve Unit 2
49	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
50	57M11897	1	Elec. Connector Accessory	-
51	57M9498	1	Elec. Connector Housing	A703, Selective Control Valve Unit 3
51	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
52	57M11897	1	Elec. Connector Accessory	-
53	57M9498	1	Elec. Connector Housing	A800, Hitch Control Valve Unit
53	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
54	57M11897	1	Elec. Connector Accessory	-
55	57M9498	1	Elec. Connector Housing	A704, Selective Control Valve Unit 4
55	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
55	57M9500	1	Elec. Connector Accessory	-
56	57M11897	1	Elec. Connector Accessory	-
57	57M11354	1	Elec. Connector Housing	-
58	57M9498	1	Elec. Connector Housing	A705, Selective Control Valve Unit 5
58	57M9500	1	Elec. Connector Accessory	-
58	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
59	57M11897	1	Elec. Connector Accessory	-
60	57M11354	1	Elec. Connector Housing	-
61	57M9498	1	Elec. Connector Housing	A706, Selective Control Valve Unit 6
61	57M9500	1	Elec. Connector Accessory	-
61	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
62	57M11897	1	Elec. Connector Accessory	-
63	57M11354	1	Elec. Connector Housing	Dust Cap
64	RWA11058	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
64	57M10530	1	Elec. Connector Housing	A914, Implement CAN Bus Active Terminator
64	57M8016	1	Elec.Connect Locking Device	-
65	57M14213	1	Elec. Connector Housing	X221, ISO Implement Connector
66	RE12363	1	Electrical Connector Assy	S549, Implement Switch
66	RWA11147	1	Repair Wire Assembly	Cavity B, A
67	R78053	1	Electrical Connector Assy	-
68	RE336303	1	Relay Module	INCLUDES 57M10797 AND 57M12929
69	RE588139	1	Chassis Wiring Harness	-
70	RE258807	23	Tie Band	-
71	57M9229	5	Clip	-
72	57M12042	1	Elec. Connector Accessory	-
73	H224072	1	Clamp	-
74	AH225364	1	Clip	-
75	57M10475	1	Elec. Connector Accessory	-
76	R44302	1	Tie Band	-
77	57M10797	1	Fuse	60A
78	57M12929	1	Fuse	30A

Chassis Wiring Harness, T3 Engine (3/4) (920001 - )

Нет текстового описания
