Selective Control Valve, W/ Hitch, 4 Rear SCV, Standard Flow ( - 100512)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE574941	1	Cover	Number I, Green, SCV Coupler
2	RE574660	1	Cover	Number II, Blue, SCV Coupler
3	RE574942	1	Cover	Number III, Brown, SCV Coupler
4	RE574943	1	Cover	Number IV, Black, SCV Coupler
5	RE561937	1	Hydraulic Hose	SCV Load Sense ORDER RE581740; ALSO ORDER (2) H127589 AND 19M7798
6	T122075	2	O-Ring	-
7	14M7275	2	Nut	M12
8	42M7062	1	Stud	-
9	L169038	1	Stud	-
10	38H5025	1	Elbow Fitting	-
11	51M7041	5	O-Ring	11.300 X 2.200 mm
12	T77814	1	O-Ring	-
13	R267668	2	Hose Fitting	-
14	RE272882	6	Tube	Drain
15	24M7240	2	Washer	13 X 25 X 3 mm
16	RE559659	1	Breakaway Coupler	Low Profile SUB FOR RE262015
17	RE559660	2	Breakaway Coupler	Mid Profile SUB FOR RE262016
18	RE559661	1	Breakaway Coupler	High Profile SUB FOR RE262017
19	RE260570	1	Manifold	-
20	RE271469	1	Manifold	-
21	RE190805	3	Diagnostic Coupling	-
22	R77175	3	Cover	-
23	19M7798	1	Screw	M8 X 40, USE WITH RE581740
24	RE588375	4	Selective Control Valve	140 LPM, SUB FOR RE580227 OR RE337466
25	RE46684	1	Fitting Plug	-
26	R10093	12	O-Ring	-
27	RE588380	1	Selective Control Valve	Hitch Control Valve Unit (HV1) SUB FOR RE580525 OR RE563557; V800
28	24M7095	19	Washer	8.400 X 15 X 1.600 mm
29	R266977	16	Socket Head Screw	-
30	R267667	2	Cap	-
31	14M7327	3	Lock Nut	M8
32	RE283442	1	Stud Kit	-
33	RE581740	1	Hydraulic Hose	SCV Load Sense
34	H127589	2	Clamp	USE WITH RE581740

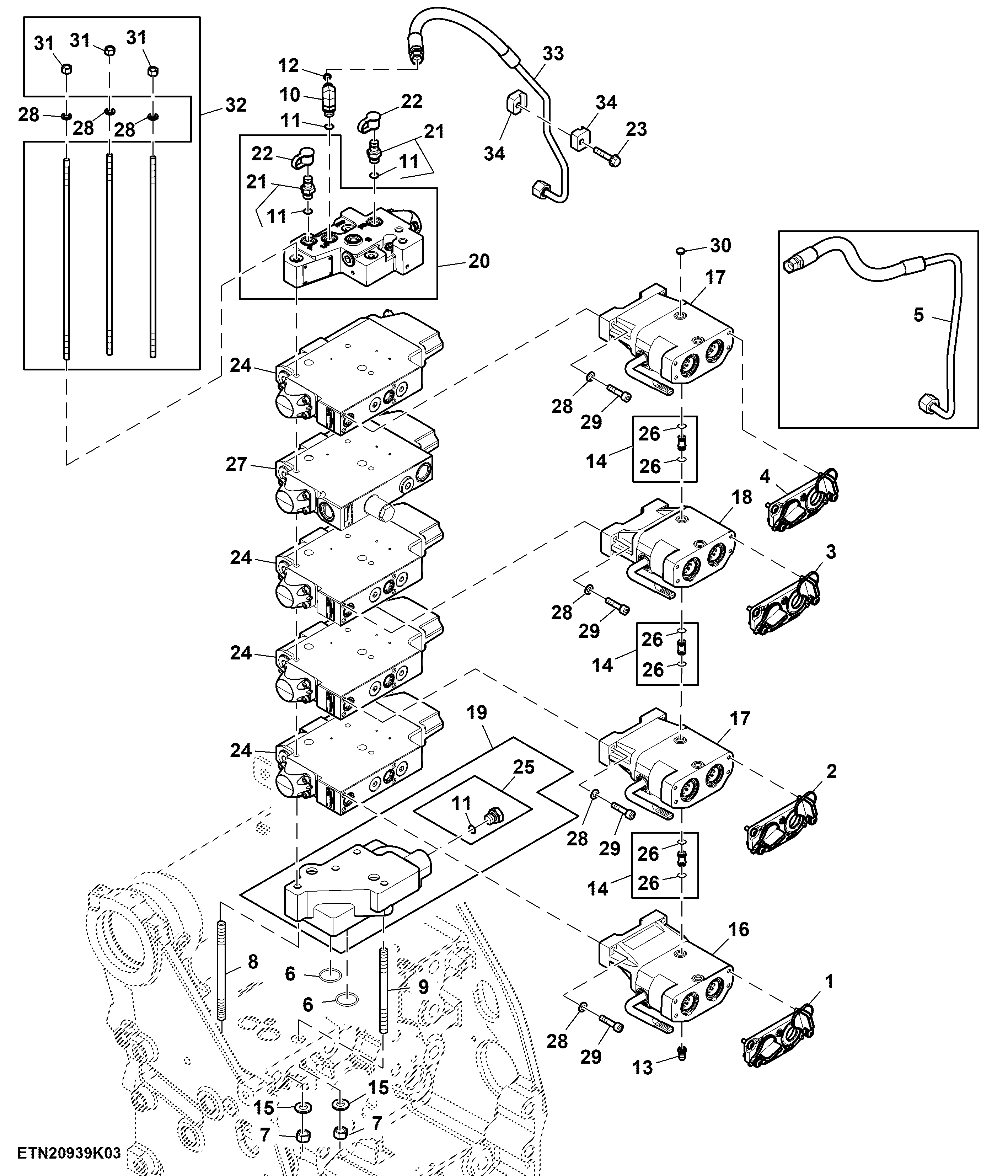

Selective Control Valve, W/ Hitch, 4 Rear SCV, Standard Flow ( - 100512)
