Тип техники

Бренд

Машина

Открытый узел

30D Engine 6090HBM07-DZ117395-ETN220771

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

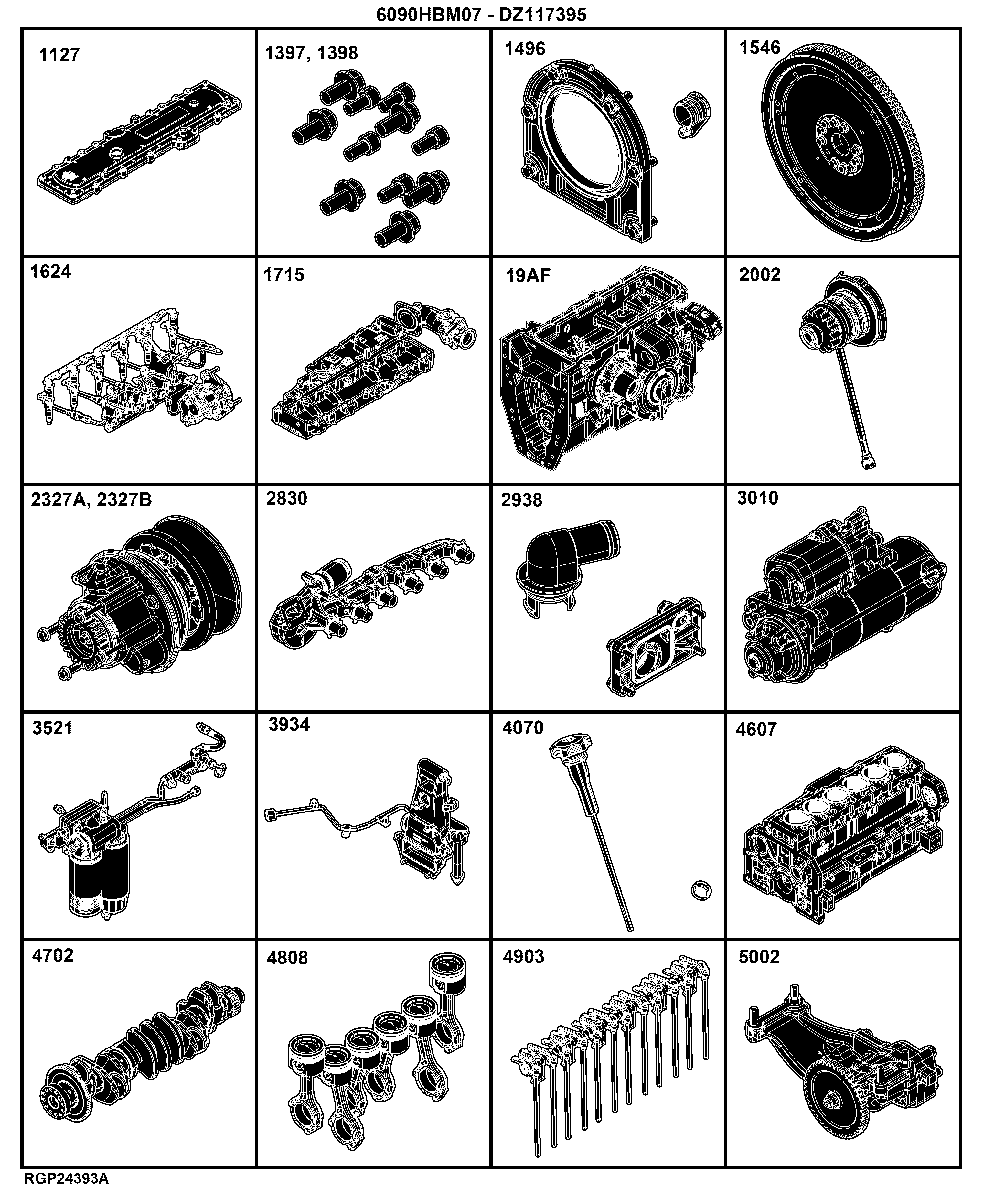

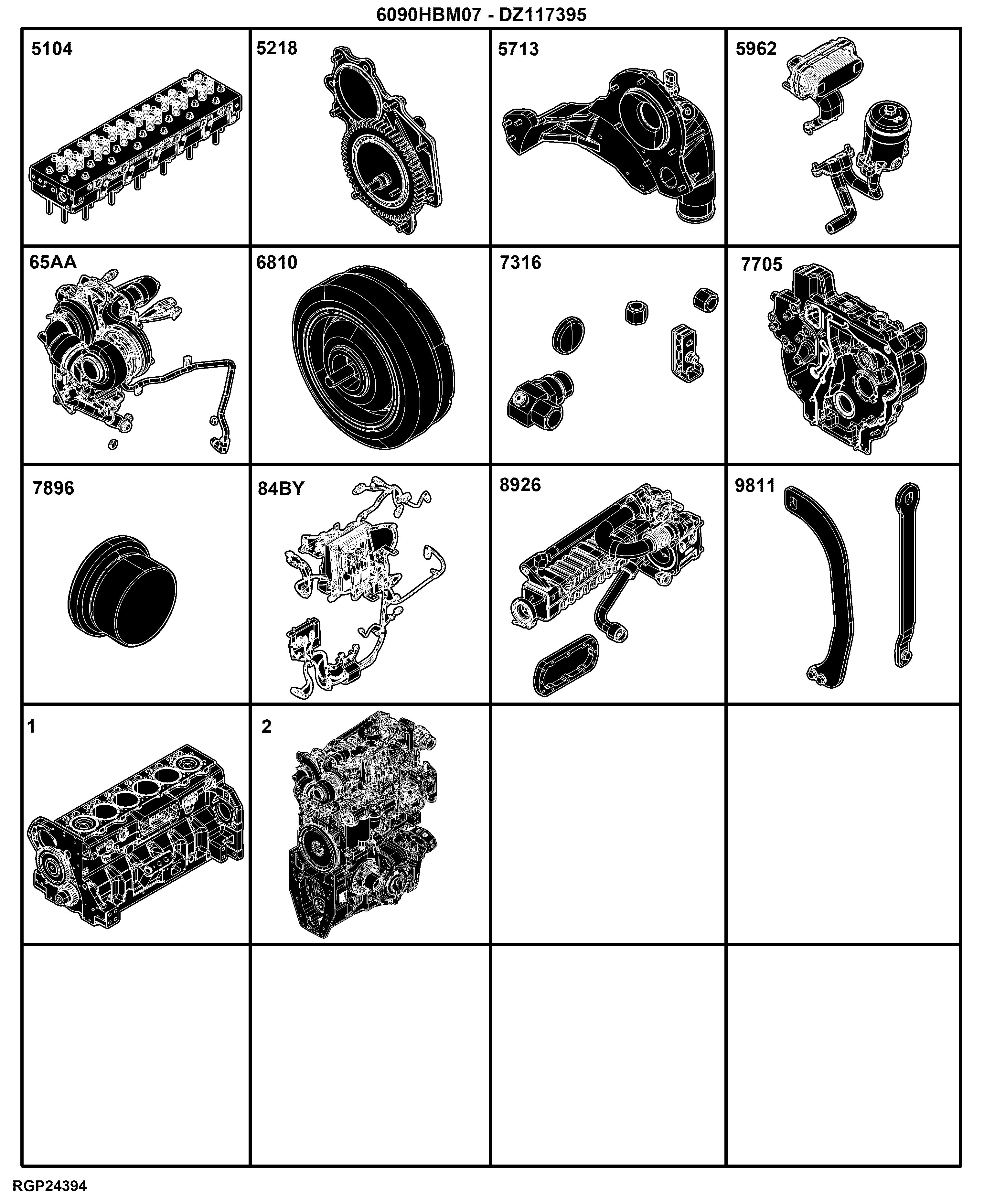

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	6810 Torsional Damper	-
-	-	1	4808 Connecting Rods and Pistons	-
-	-	1	4903 Valve Actuating Mechanism	-
-	-	1	5002 Engine Oil Pump	-
-	-	1	5104 Cylinder Head with Valves	-
-	-	1	5218 Auxiliary Drive	-
-	-	1	5713 Water Pump Inlet	-
-	-	1	5962 Engine Oil Cooler and Oil Filter	-
-	-	1	65AA Turbocharger	-
-	-	1	4702 Crankshaft and Bearings	-
-	-	1	7316 Fuel Dosing System	-
-	-	1	7705 Timing Gear Cover	-
-	-	1	7896 Air Compressor Mounting Plug	-
-	-	1	84BY Engine Wiring Harness	-
-	-	1	8926 Exhaust Gas Recirculation	-
-	-	1	9811 Lift Straps Hardware	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	2327 Fan Drive (1/2)	-
-	-	1	1397 Crankshaft Pulley Hardware	-
-	-	1	1398 Crankshaft Pulley Hardware	-
-	-	1	1496 Flywheel Housing	-
-	-	1	1546 Flywheel	-
-	-	1	1624 Fuel Injection System	-
-	-	1	1715 Air Intake Manifold	-
-	-	1	19AF Oil Pan	-
-	-	1	2002 Water Pump	-
-	-	1	1127 Valve Cover	-
-	-	1	2327 Fan Drive (2/2)	-
-	-	1	2830 Exhaust Manifold	-
-	-	1	2938 Ventilating System	-
-	-	1	3010 Starting Motor	-
-	-	1	3521 Fuel Filter	-
-	-	1	3934 Thermostat Housing	-
-	-	1	4070 Engine Oil Dipstick	-
-	-	1	4607 Cylinder Block	-

30D Engine 6090HBM07-DZ117395-ETN220771

Нет текстового описания
