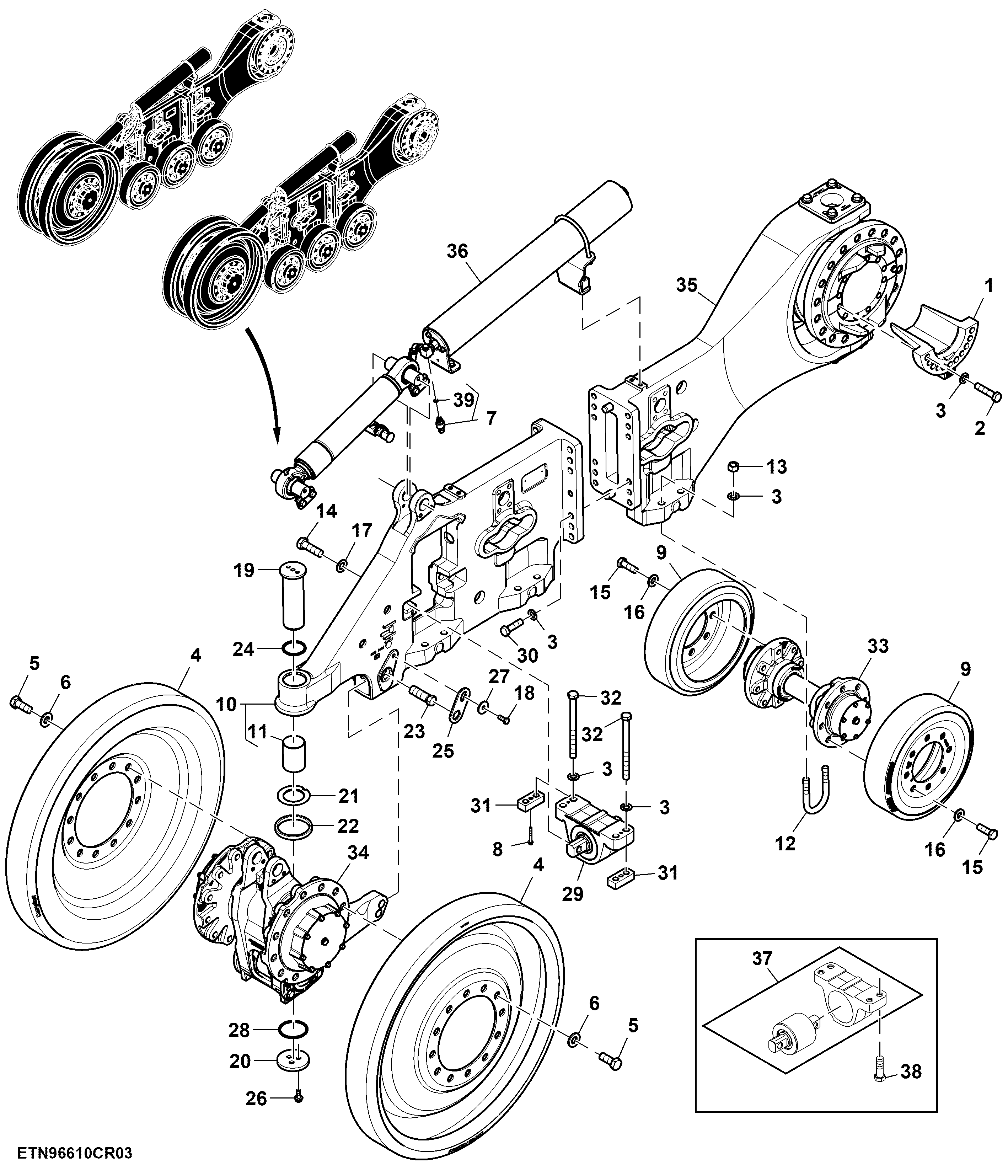

Track Frame Assembly, Narrow Undercarriage, Polyurethane Midroller Wheels (LH Illustrated)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R266335	4	Tapered Sleeve	-
2	19M9162	24	Cap Screw	M20 X 90
3	24M7344	80	Washer	22 X 37 X 3 mm
4	RE265435	4	Wheel	Idler
5	19M7888	24	Cap Screw	M24 X 60
6	24M7243	24	Washer	25.400 X 50 X 6 mm
7	RE204264	2	Trans Oil Pressure Sensor	Track Tension Sensor
8	19M7801	2	Screw	M8 X 60
9	RE329210	12	Wheel	Midroller ORDER RE576549
9	RE576549	12	Wheel	-
10	RE594580	2	Frame	SUB FOR RE272353
11	R289697	2	Bushing	-
12	R247177	12	U-Bolt	-
13	14M7277	24	Nut	M20
14	19M7889	4	Cap Screw	M24 X 80
15	19M9154	96	Cap Screw	M20 X 60
16	24M7242	96	Washer	21.400 X 42 X 5 mm
17	L113738	4	Washer	-
18	19M8011	4	Cap Screw	M12 X 30
19	R272475	2	Pin	-
20	R272476	2	Plate	-
21	R272387	2	Washer	-
22	R289709	2	Seal	-
23	R565887	4	Set Screw	SUB FOR R274558
24	R289713	2	O-Ring	-
25	AT364555	4	Plate	-
26	19M7789	6	Screw	M12 X 30
27	R273543	4	Spacer	-
28	R289696	2	O-Ring	-
29	RE590186	2	Bushing	SUB FOR APPL RE580101
30	19M9133	24	Cap Screw	M20 X 70
31	R556258	4	Plate	-
32	19M9749	8	Cap Screw	M20 X 250
33	RE272359	6	Axle	Midroller
34	-	2	Part 35	Tensioner
35	-	2	Part 36	Reaction Arm
36	-	2	Part 37	Tensioner
37	RE272352	2	Bushing	ORDER RE580101; ALSO ORDER (4) R556258 AND (8) 19M9749
38	19M9148	8	Cap Screw	M20 X 210
39	R240021	2	O-Ring	-

Track Frame Assembly, Narrow Undercarriage, Polyurethane Midroller Wheels (LH Illustrated)
