Открытый узел

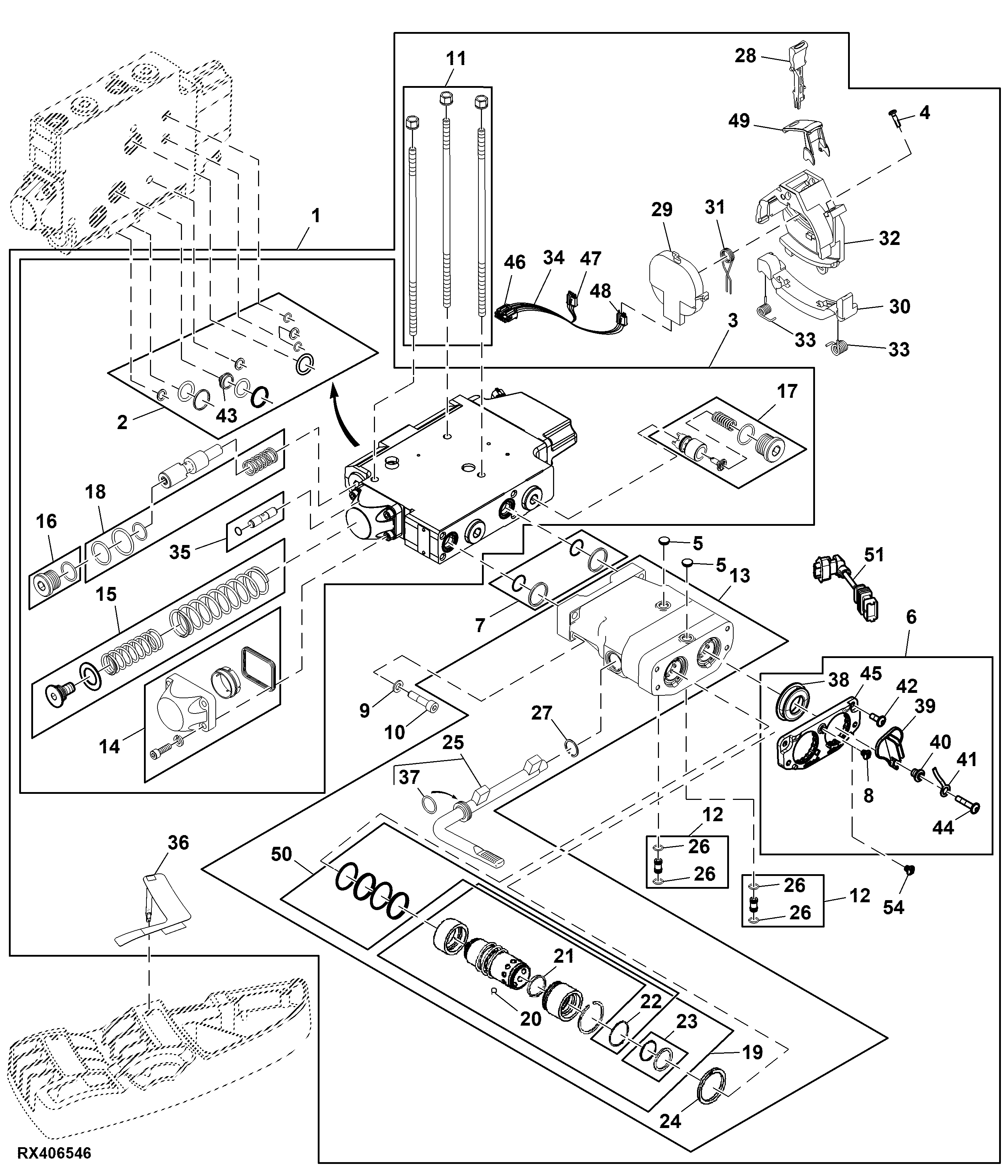

Selective Control Valve, Remote Control, 4th / 5th SCV, Attachment ( - 907100)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE343866	1	Selective Control Valve	(5th SCV)
1	RE343865	1	Selective Control Valve	(4th SCV)
2	RE279692	1	Seal Kit	-
3	RE588375	1	Selective Control Valve	SUB FOR RE580227 AND RE308284
4	R250192	2	Screw	-
5	R267667	2	Cap	-
6	RE574943	1	Cover	Number IV, Black, SCV Coupler
6	RE574944	1	Cover	Number V, Violet, SCV Coupler
7	RE281895	1	Seal Kit	-
8	L102157	1	Plug	(4th SCV/ Black)
8	L200312	1	Plug	(5th SCV/ Violet)
9	24M7095	5	Washer	8.400 X 15 X 1.600 mm
10	R266977	5	Socket Head Screw	-
11	RE283442	1	Stud Kit	(4th SCV)
11	RE283443	1	Stud Kit	(5th SCV)
12	RE272882	4	Tube	Inter Coupler Drain
13	RE559661	1	Breakaway Coupler	(5th SCV) INCLUDES RE256693 AND RE271733, R186598; SUB FOR RE262017
13	RE559660	1	Breakaway Coupler	(4th SCV) INCLUDES RE256693 AND RE271733, R186598; SUB FOR RE262016
14	RE279694	1	Cap Kit	-
15	RE279695	1	Spring Kit	-
16	RE279696	3	Plug Kit	-
17	RE279697	2	Valve Kit	-
18	RE279699	1	Spring Kit	-
19	RE577560	2	Breakaway Coupler	SUB FOR RE256693
20	R107859	10	Ball	-
21	R222761	1	O-Ring	-
22	R257100	1	Snap Ring	-
23	RE186599	1	Seal	-
24	R186598	2	Snap Ring	-
25	RE271733	1	Lever	INCLUDES R27564
26	R10093	2	O-Ring	-
27	R207188	1	Ring	-
28	RE273298	1	Control Lever	(5th SCV)
28	RE273297	1	Control Lever	(4th SCV)
29	RE267676	1	Potentiometer	-
30	R125878	1	Arm	-
31	R125879	1	Torsion Spring	-
32	R171535	1	Bracket	-
33	R217571	2	Torsion Spring	-
34	RE223879	1	Cab Wiring Harness	(5th SCV)
35	RE279693	1	Valve Kit	-
36	RE288663	1	Label	(4th SCV)
36	RE288661	1	Label	(5th SCV)
37	R27564	1	O-Ring	-
38	L214847	2	Grommet	-
39	-	2	Part 46	(5th SCV/ Violet)
39	-	2	Part 47	(4th SCV/ Black)
40	-	2	Part 48	-
41	-	2	Part 49	-
42	19M8648	2	Screw	M6 X 16
43	R540643	1	Valve	-
44	19M8648	2	Screw	M6 X 16
45	R552383	1	Retainer	-
46	-	1	Part 54	USE WITH (6) 57M7427_Pins; PCB Connector
47	57M7708	1	Electrical Connector Assy	USE WITH (4) 57M7427_Pins; SCV 6 Paddle POT
48	57M7708	1	Electrical Connector Assy	USE WITH (4) 57M7427_Pins; SCV 5 Paddle POT
49	R290068	1	Cover	-
50	RE186600	2	Seal	-
51	RE343006	1	Wiring Harness	-
52	RE567656	1	Electronic Control Unit	(5th SCV/ Violet)
53	RE341710	1	Valve Kit	(5th SCV/ Violet)
54	L157882	1	Plug	(5th SCV)

Selective Control Valve, Remote Control, 4th / 5th SCV, Attachment ( - 907100)

Нет текстового описания
