Load Sense Line, Primary Resolution Manifold (907101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE264764	1	Check Valve	-
2	38H5090	1	Nut	9/16"
3	19M8006	1	Screw	M8 X 120
4	RE297862	1	Oil Line	Load Sense Manifold to Load Sense Pump Drive Priority
5	R184064	1	Clamp	-
6	R184060	1	Cover	-
7	T77814	4	O-Ring	-
8	38H5004	1	Adapter Fitting	-
9	51M7045	1	O-Ring	19.300 X 2.200 mm
10	38H5008	1	Adapter Fitting	-
11	51M7040	1	O-Ring	9.300 X 2.200 mm
12	T77613	10	O-Ring	USE WITH RE341867
13	38H5002	5	Adapter Fitting	USE WITH RE341867
14	51M7041	7	O-Ring	11.300 X 2.200 mm
15	RE297863	1	Oil Line	Load Sense Manifold to Load Sense Pump
16	RE578880	1	Oil Line	P Port Manifold To P Port Pump SUB FOR RE570993
17	T77932	2	O-Ring	-
18	38H5003	1	Adapter Fitting	-
19	51M7043	1	O-Ring	15.300 X 2.200 mm
20	RE586779	1	Oil Line	SUB FOR APPL RE297854
21	38H5145	1	Elbow Fitting	-
22	RE315494	1	Hydraulic Hose	SCV Load Sense to Primary Resolution Manifold
23	38H5016	1	Elbow Fitting	-
24	T77857	1	O-Ring	-
25	RE309675	1	Oil Line	Load Sense Line on Pump
26	H120362	4	Clamp	-
27	H112567	3	Plate	-
28	19M7802	1	Screw	M8 X 65
29	14M7396	2	Lock Nut	M8
30	RE341867	1	Hydraulic Hose	SCV Load Sense to Check Valve ORDER RE583546; ALSO ORDER 38H5025, 51M7041, T77814
31	38H1284	1	Adapter Fitting	-
32	RE330582	1	Oil Line	Turn Brake Valve to Primary Resolution Manifold
33	R126027	1	Stud	-
34	28H3385	1	Bushing	0.423" X 0.675" X 1/2"
35	RE297860	1	Oil Line	ORDER RE570993
36	RE297861	1	Oil Line	ORDER RE570993
37	RE583546	1	Hydraulic Hose	-
38	38H5025	1	Elbow Fitting	-

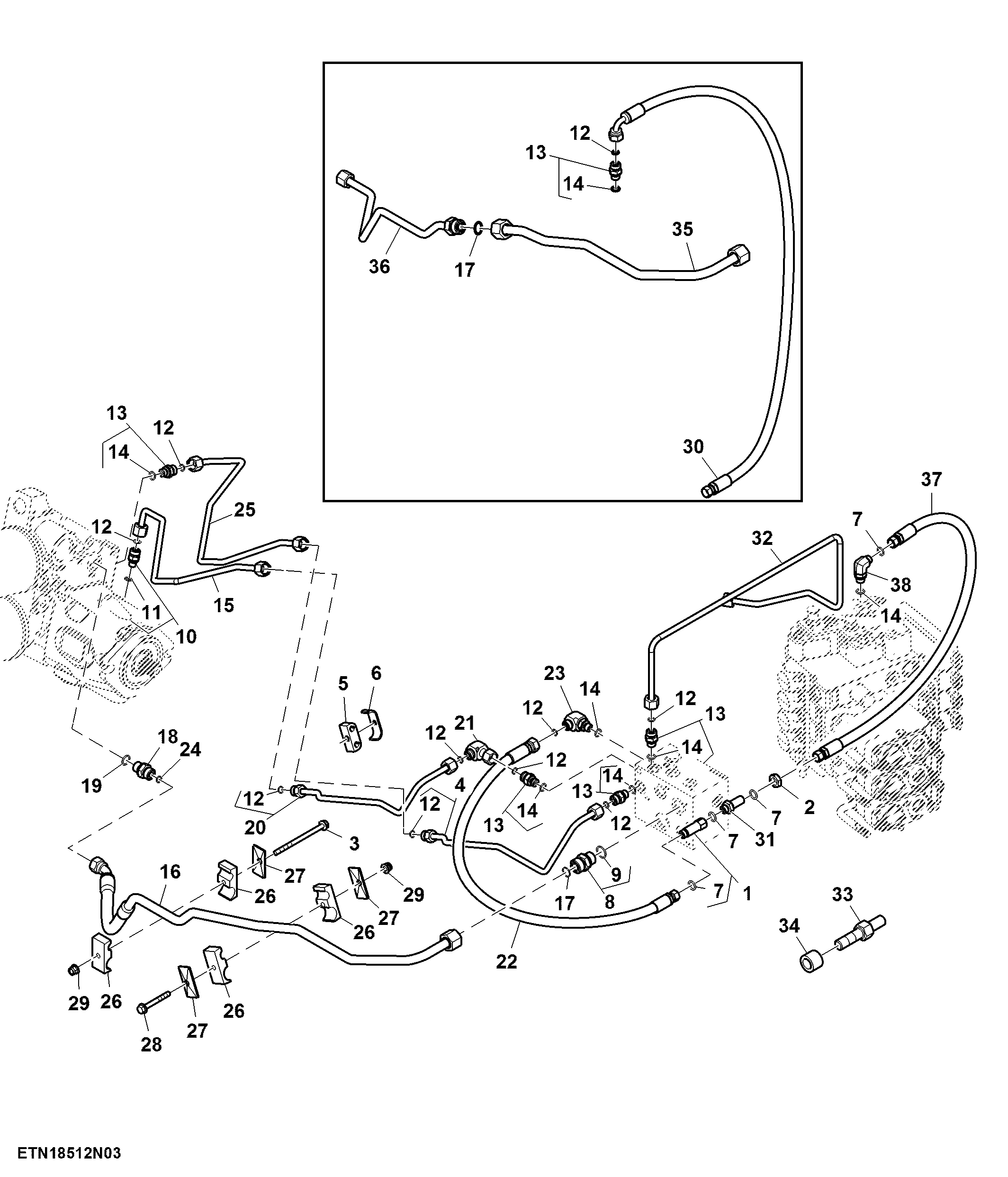

Load Sense Line, Primary Resolution Manifold (907101 - )
