Chassis Wiring Harness, IT4 Engine (1/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	4	Part 1	-
2	-	1	Part 2	-
3	57M7290	1	Elec. Connector Accessory	-
3	57M7255	1	Elec. Connector Housing	Radar (USE WITH(3) 57M7494_Pins, (3) 57M9215_Seals)
4	57M7257	1	Elec. Connector Housing	Dust Cap
4	57M7290	1	Elec. Connector Accessory	-
5	57M9786	1	Elec. Connector Housing	Headlight Extension (R2) (USE WITH(5) 57M9807_Pins)
6	57M9789	1	Elec. Connector Housing	-
7	57M7254	1	Elec. Connector Housing	Coolent Level (USE WITH 57M9808_Pin, 57M7494_Pin, 57M9215_Seal)
7	57M7289	1	Elec.Connect Locking Device	-
8	57M7254	1	Elec. Connector Housing	Coolent Loss (USE WITH57M9808_Pin, 57M7494_Pin, 57M9215_Seal)
8	57M7289	1	Elec.Connect Locking Device	-
9	57M8633	1	Elec. Connector Accessory	-
9	57M8924	1	Elec. Connector Housing	Fan Speed Sensor (USE WITH57M8560_Pin, 57M9808_Pin, 57M8566_Seal)
10	R77478	1	Electrical Connector Assy	Ether Solenoid (USE WITH(2) 57M9200_Pins)
11	57M9800	1	Elec. Connector Housing	Engine Harness (USE WITH(2) 57M8377_Pins, (5) 57M9808_Pins, (2) 57M9218_Seals)
12	RE538505	1	Elec. Connector Accessory	ECU J3 Connector (USE WITH(6) 57M9808_Pins, (2) 57M8165_Pins, (9) 57M9806_Pins, (2) 57M7494_Pins(2) 57M8560_Pins, (2) 57M9215_Seals, 57M8566_Seal)
13	57M9222	1	Elec. Connector Housing	-
13	57M8633	1	Elec. Connector Accessory	-
14	57M8924	1	Elec. Connector Housing	Countershaft Speed Sensor (USE WITH(2) 57M8560_Pins, (2) 57M8566_Seals)
14	57M8633	1	Elec. Connector Accessory	-
15	57M10297	1	Elec. Connector Housing	Hood Harness (USE WITH(8) 57M8565_Pins, (2) 57M8543_Pins, 57M8545_Pin)
16	57M7293	1	Elec. Connector Housing	A/C Clutch (USE WITH 57M7285_Pin, 57M9218_Seal)
16	57M7295	1	Elec.Connect Locking Device	-
17	-	2	Part 25	A/C Clutch Ground
18	57M7289	1	Elec.Connect Locking Device	-
18	57M7254	1	Elec. Connector Housing	Fan Speed Up Valve (USE WITH(2) 57M7494_Pins,(2) 57M9215_Seals)
19	57M7254	1	Elec. Connector Housing	Fan Speed Down Valve (USE WITH(2) 57M7494_Pins, (2) 57M9215_Seals)
19	57M7289	1	Elec.Connect Locking Device	-
20	57M7689	1	Fuse	Front Load Center (USE WITH57M7707_Pin, (2) 57M8377_Pins, 57M8868_Pin, (2) 57M9218_Seals, 57M9219_Seal)
20	57M7690	1	Fuse	-
20	57M7691	1	Fuse	-
21	-	1	Part 33	Alt +12V
22	-	1	Part 34	-
23	57M9786	1	Elec. Connector Housing	Front Console Harness (USE WITH 57M9200_Pin, 57M7707_Pin, 57M9219_Seal)
24	57M8326	1	Electrical Connector Assy	-
24	57M9406	1	Elec. Connector Accessory	Ground Stud Splice Pack (USE WITH57M8901_Pin, 57M7297_Pin, (2) 57M7494_Pins, 57M8569_Pin, 57M9218_Seal, (2) 57M9215_Seals)
25	57M7262	1	Elec. Connector Housing	Steering Input Device (USE WITH(3) R104846_Pins, (5) 57M7494_Pins, 57M8901_Pin, (3) 57M7258_Seals, (5) 57M9215Seals)
25	57M8907	1	Elec.Connect Locking Device	-
26	-	3	Part 40	Single Point Ground Stud
27	R77476	1	Electrical Connector Assy	Front Washer Pump (USE WITH (2) 57M9200_Pins)
28	R77476	1	Electrical Connector Assy	Rear Washer Pump (USE WITH (2) 57M9200_Pins)
29	57M9772	1	Elec. Connector Housing	Fuel Level Sender (USE WITH (2) 57M9809_Pins)
30	57M9817	1	Elec. Connector Housing	After treatment Temp Assy (USE WITH (2) 57M9808_Pins)
31	57M9780	1	Elec. Connector Housing	After Treatment Delta Pressure (USE WITH 57M9808_Pin)
32	57M9792	1	Elec. Connector Housing	Suspension Harness (USE WITH (7) 57M9809_Pins)
33	57M8611	1	Electrical Connector Assy	-
34	RE308991	1	Chassis Wiring Harness	-

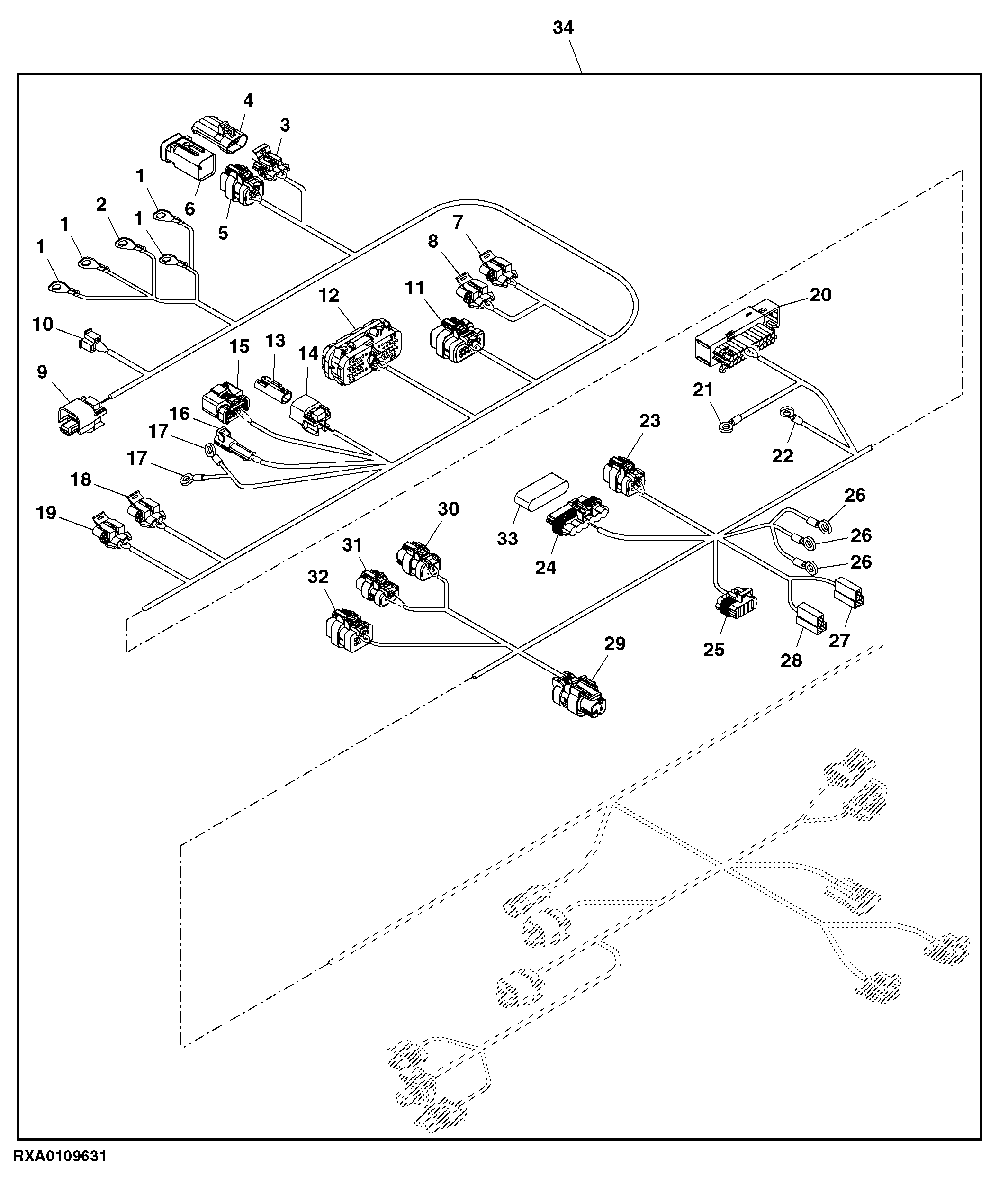

Chassis Wiring Harness, IT4 Engine (1/3)
