Открытый узел

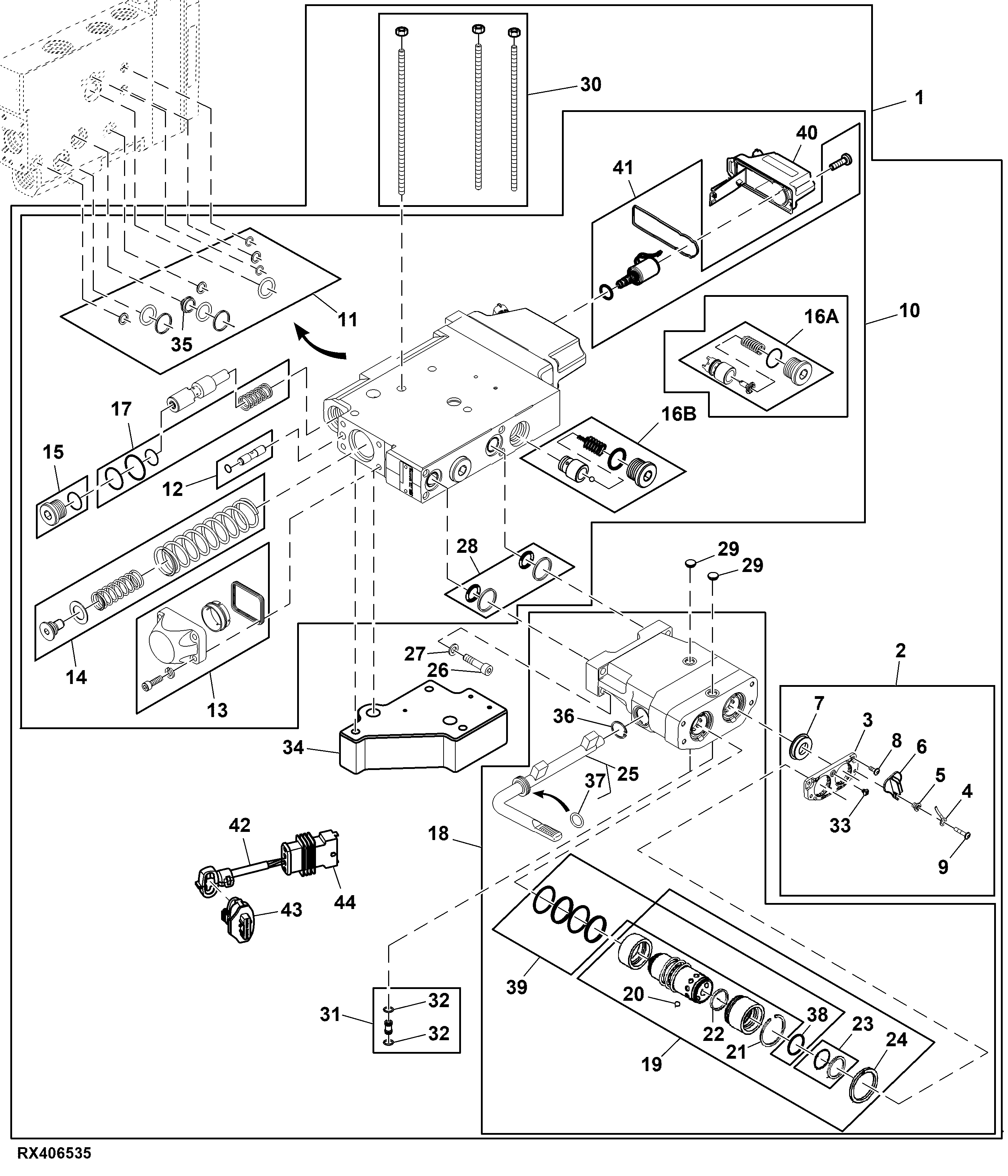

6th Rear SCV, EHS-1, IVT™/CommandQuad™, Attachment (053101 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE327560	1	Selective Control Valve	SCV Kit
2	RE574945	1	Cover	Number VI, Gray, SCV Coupler SUB FOR RE289060
3	R552383	1	Retainer	-
4	-	2	Part 4	-
5	-	2	Part 5	-
6	-	2	Part 6	ORDER RE574945
7	L214847	2	Grommet	-
8	19M8648	2	Screw	M6 X 16
9	19M9178	2	Screw	M6 X 30
10	RE308284	1	Selective Control Valve	ORDER RE588375
10	RE580227	1	Selective Control Valve	ORDER RE588375
10	RE588375	1	Selective Control Valve	-
11	RE582808	1	Seal Kit	SUB FOR RE279692
12	RE279693	1	Valve Kit	Workport Shuttle Valve USE WITH RE308284
13	RE279694	1	Cap Kit	-
14	RE279695	1	Spring Kit	USE WITH RE308284
14	RE568184	1	Spring Kit	USE WITH RE580227 OR RE588375
15	RE279696	3	Plug Kit	-
17	RE279699	1	Spring Kit	USE WITH RE308284
17	RE568186	1	Spring Kit	USE WITH RE580227 OR RE588375
18	RE559660	1	Breakaway Coupler	Horizontal SUB FOR RE262016
19	RE577560	2	Breakaway Coupler	SUB FOR RE256693
20	R107859	20	Ball	-
21	-	2	Part 27	-
22	R222761	2	O-Ring	-
23	RE186599	2	Seal	-
24	R186598	2	Snap Ring	-
25	RE271733	1	Lever	-
26	R266977	4	Socket Head Screw	-
27	24M7095	4	Washer	8.400 X 15 X 1.600 mm
28	RE281895	1	Seal Kit	-
29	R267667	2	Cap	-
30	RE304819	3	Stud Kit	-
31	RE272882	2	Tube	Inter-Coupler Drain
32	R10093	4	O-Ring	-
33	L200313	1	Plug	Gray
34	RE283453	1	Manifold	-
35	R540643	1	Valve	-
36	R207188	1	Ring	-
37	R27564	1	O-Ring	-
38	R257100	2	Snap Ring	-
39	RE186600	2	Seal	-
40	RE567656	1	Electronic Control Unit	USE WITH RE308284
40	RE567604	1	Electronic Control Unit	USE WITH RE580227
40	RE588373	1	Electronic Control Unit	USE WITH RE588375
41	RE580941	1	Valve Kit	SCV Pilot USE WITH RE580227 OR RE308284
41	RE588372	1	Valve Kit	SCV Pilot USE WITH RE588375
42	RE343006	1	Wiring Harness	-
43	57M9498	1	Elec. Connector Housing	-
44	57M9500	1	Elec. Connector Accessory	-
16A	RE279697	2	Valve Kit	Load Check Valve USE WITH RE308284
16A	RE568185	2	Check Valve	Load Check Valve ORDER RE591268
16B	RE591268	2	Check Valve	Load Check Valve USE WITH RE588375 OR RE580227

6th Rear SCV, EHS-1, IVT™/CommandQuad™, Attachment (053101 - )
