Открытый узел

5th Rear SCV, EHS-1, Attachment (053101 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE327559	1	Selective Control Valve	SCV Kit ALSO ORDER RE331559, RE265579 AND RE288661
2	R250192	2	Screw	-
3	R290068	1	Cover	-
4	RE267676	1	Potentiometer	-
5	RE273298	1	Control Lever	-
6	RE306874	1	Cab Wiring Harness	-
7	RE308284	1	Selective Control Valve	ORDER RE588375
7	RE580227	1	Selective Control Valve	ORDER RE588375
7	RE588375	1	Selective Control Valve	-
8	RE582808	1	Seal Kit	SUB FOR RE279692
9	RE279693	1	Valve Kit	Workport Shuttle Valve USE WITH RE308284
10	RE279694	1	Cap Kit	-
11	RE279695	1	Spring Kit	USE WITH RE308284
11	RE568184	1	Spring Kit	USE WITH RE588375 OR RE580227
12	RE279696	1	Plug Kit	-
14	RE279699	1	Spring Kit	USE WITH RE308284
14	RE568186	1	Spring Kit	USE WITH RE588375 OR RE580227
15	R267667	2	Cap	-
16	RE574944	1	Cover	Number V, Violet, SCV Coupler SUB FOR RE289059
17	R552383	1	Retainer	-
18	L214847	2	Grommet	-
19	-	2	Part 25	ORDER RE574944
20	-	2	Part 26	-
21	-	2	Part 27	-
22	19M9178	2	Screw	M6 X 30
23	19M8648	2	Screw	M6 X 16
24	L200312	1	Plug	-
25	RE281895	1	Seal Kit	-
26	24M7095	4	Washer	8.400 X 15 X 1.600 mm
27	R266977	4	Socket Head Screw	-
28	RE283443	1	Stud Kit	-
29	RE272882	2	Tube	-
30	R10093	4	O-Ring	-
31	RE559661	1	Breakaway Coupler	High Profile SUB FOR RE262017
32	RE577560	2	Breakaway Coupler	SUB FOR RE256693
33	R107859	20	Ball	-
34	-	2	Part 40	-
35	R222761	2	O-Ring	-
36	RE186599	2	Seal	-
37	R186598	2	Snap Ring	-
38	RE271733	1	Lever	-
39	R540643	1	Valve	-
40	R207188	1	Ring	-
41	R27564	1	O-Ring	-
42	RE343006	1	Wiring Harness	-
43	57M7708	1	Electrical Connector Assy	-
44	57M7712	1	Electrical Connector Assy	-
44	57M7718	1	Electrical Connector Assy	-
45	57M7470	1	Elec. Connector Housing	-
45	57M7474	1	Elec. Connector Terminal	-
46	RE186600	2	Seal	-
47	RE567656	1	Electronic Control Unit	USE WITH RE308284
47	RE567604	1	Electronic Control Unit	USE WITH RE580227
47	RE588373	1	Electronic Control Unit	USE WITH RE588375
48	RE580941	1	Valve Kit	SCV Pilot USE WITH RE580227 OR RE308284
48	RE588372	1	Valve Kit	SCV Pilot USE WITH RE588375
49	57M9498	1	Elec. Connector Housing	-
50	57M9500	1	Elec. Connector Accessory	-
13A	RE279697	2	Valve Kit	Load Check Valve USE WITH RE308284
13A	RE568185	2	Check Valve	Load Check Valve ORDER RE591268
13B	RE591268	2	Check Valve	Load Check Valve USE WITH RE588375, RE580227 OR RE337466

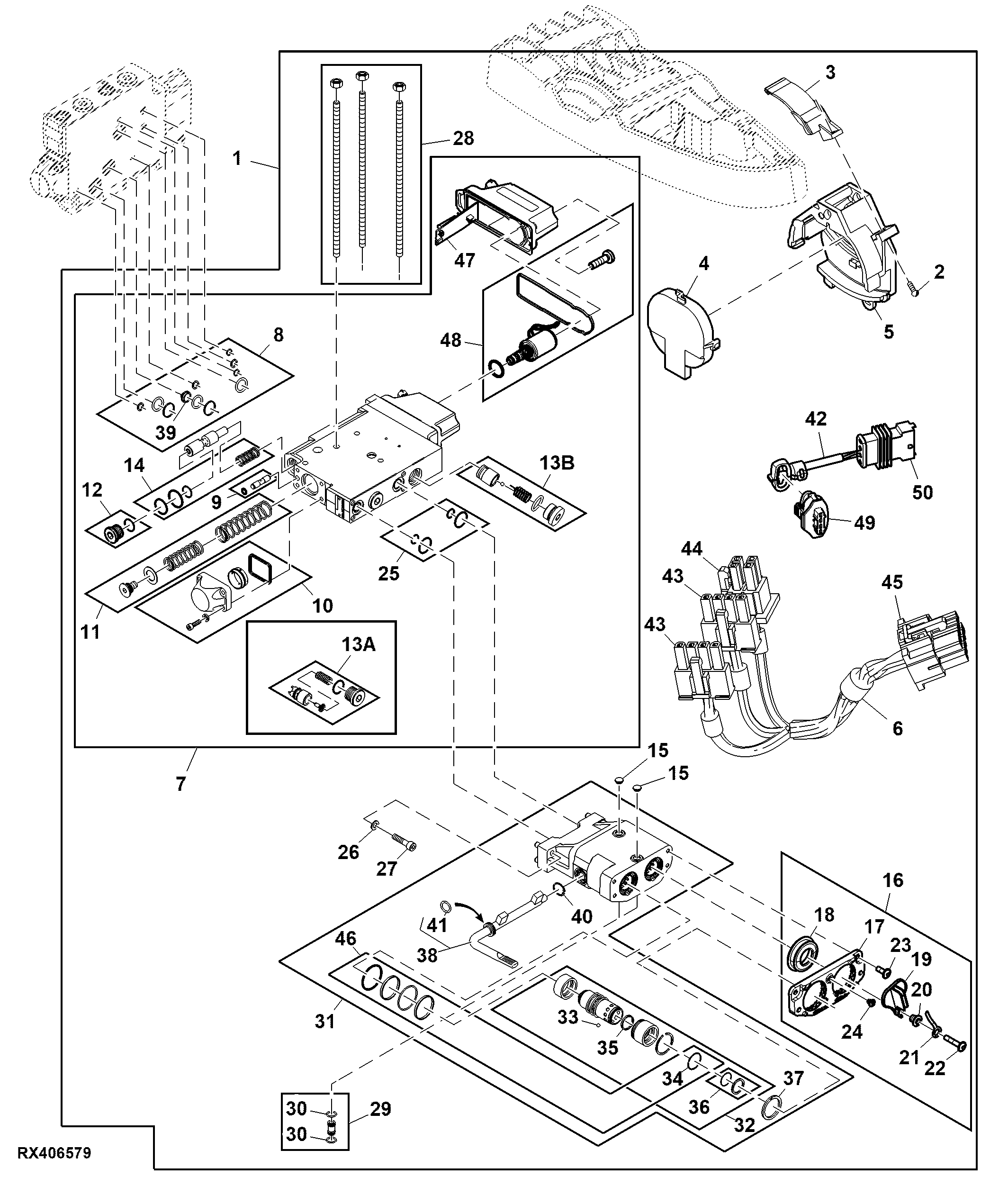

5th Rear SCV, EHS-1, Attachment (053101 - )
