Wiring Harness, Chassis, T2 Engine (2/4) ( - 914100)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RWA11029	3	Repair Wire Assembly	Cavity 3, 4, 1
1	57M9786	1	Elec. Connector Housing	X028A
2	57M7290	1	Elec. Connector Accessory	-
2	57M7255	1	Elec. Connector Housing	X201A
2	RWA11083	3	Repair Wire Assembly	Cavity A, B, C
3	57M7257	2	Elec. Connector Housing	-
4	57M10302	1	Elec. Connector Housing	X570A
4	RWA11136	6	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
5	57M7257	1	Elec. Connector Housing	X062A
5	57M7290	1	Elec. Connector Accessory	-
5	RWA11082	3	Repair Wire Assembly	Cavity A, B, C
6	RWA11097	2	Repair Wire Assembly	Cavity A, B
6	57M8633	1	Elec. Connector Accessory	-
6	57M8924	1	Elec. Connector Housing	B5303_S2
7	57M9776	1	Elec. Connector Housing	A912
8	57M9940	1	Elec. Connector Accessory	-
9	57M11134	1	Elec. Connector Housing	-
10	57M8812	1	Elec. Connector Housing	Y101
10	RWA11076	2	Repair Wire Assembly	Cavity A, B
11	57M7254	1	Elec. Connector Housing	B5009
11	57M9712	1	Elec. Connector Accessory	-
11	RWA11083	2	Repair Wire Assembly	Cavity A, B
12	RWA11083	2	Repair Wire Assembly	Cavity A, B
12	57M7254	1	Elec. Connector Housing	B5010
12	57M9712	1	Elec. Connector Accessory	-
13	RE538505	1	Elec. Connector Accessory	A5505-J3
13	RWA11027	21	Repair Wire Assembly	Cavity 1, 2, 7, 12, 13, 14, 15, 22, 23, 24, 25, 29, 31, 32, 33, 36, 38, 43, 44, 48, 50
14	R78053	1	Electrical Connector Assy	B5111
14	RWA11147	2	Repair Wire Assembly	Cavity A, B
15	RE12363	1	Electrical Connector Assy	-
16	57M7175	1	Elec. Connector Terminal	S501_1
17	57M7293	1	Elec. Connector Housing	S501-A
17	57M7295	1	Elec.Connect Locking Device	-
17	RWA11088	1	Repair Wire Assembly	Cavity A
18	57M7255	1	Elec. Connector Housing	X289
18	RWA11083	3	Repair Wire Assembly	Cavity A, B, C
18	57M7290	1	Elec. Connector Accessory	-
19	RE258807	22	Tie Band	-
20	57M8937	1	Elec. Connector Terminal	M301_S2
21	57M8924	1	Elec. Connector Housing	Y5014
21	57M8633	1	Elec. Connector Accessory	-
21	RWA11097	2	Repair Wire Assembly	Cavity A, B
22	57M8924	1	Elec. Connector Housing	Y5015
22	57M8633	1	Elec. Connector Accessory	-
22	RWA11097	2	Repair Wire Assembly	Cavity A, B
23	57M7571	1	Elec. Connector Terminal	G301B+
24	57M8875	1	Elec. Connector Terminal	G301D+
25	57M12905	1	Elec. Connector Terminal	FEXX-1
26	RE554429	1	Fuse Holder	FEXX
26	RWA11045	4	Repair Wire Assembly	Cavity B10, B4, B5, B9
27	57M10297	1	Elec. Connector Housing	X180B
27	RWA11137	13	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 12, 13, 14
28	57M11374	1	Elec. Connector Accessory	-
29	57M9800	1	Elec. Connector Housing	X981B_ACS
29	RWA11029	12	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
30	57M9844	1	Elec. Connector Accessory	-
31	57M7567	1	Elec. Connector Terminal	XGND2_46A
32	57M7567	1	Elec. Connector Terminal	XGND2_46B
33	57M7567	1	Elec. Connector Terminal	XGND2_46C
34	57M7567	1	Elec. Connector Terminal	XGND2_46D
35	57M9726	1	Elec. Connector Housing	B303
35	RWA11027	2	Repair Wire Assembly	Cavity 2, 1
36	57M9837	1	Elec. Connector Accessory	-
37	57M9792	1	Elec. Connector Housing	X030A
37	RWA11029	7	Repair Wire Assembly	Cavity 5, 7, 6, 4, 1, 2, 3
38	57M9792	1	Elec. Connector Housing	B249
38	RWA11029	5	Repair Wire Assembly	Cavity 7, 5, 8, 1, 2
39	57M9842	1	Elec. Connector Accessory	-
40	57M7257	1	Elec. Connector Housing	X061A
40	RWA11082	3	Repair Wire Assembly	Cavity A, B, C
40	57M7290	1	Elec. Connector Accessory	-
41	57M7144	1	Elec. Connector Housing	M02
41	RWA11076	2	Repair Wire Assembly	Cavity A, B
42	57M7144	1	Elec. Connector Housing	M01
42	RWA11076	2	Repair Wire Assembly	Cavity A, B
43	57M7144	1	Elec. Connector Housing	M03
43	RWA11076	2	Repair Wire Assembly	Cavity A, B
44	57M12137	2	Clamp	SUB FOR 57M10837
45	AH225363	1	Clip	-
46	57M9857	2	Clamp	-
47	57M11231	1	Clip Kit	-
48	57M9229	1	Clip	-
49	57M9789	1	Elec. Connector Housing	-
50	57M8910	1	Clip	-
51	R528122	1	Elec. Connector Accessory	-
52	RE572011	1	Chassis Wiring Harness	-
53	RE554428	1	Cover	-
54	RE554430	1	Cover	-
55	R536493	1	Nut	-
56	57M10421	2	Elec. Connector Accessory	-
57	57M9190	1	Clip	-

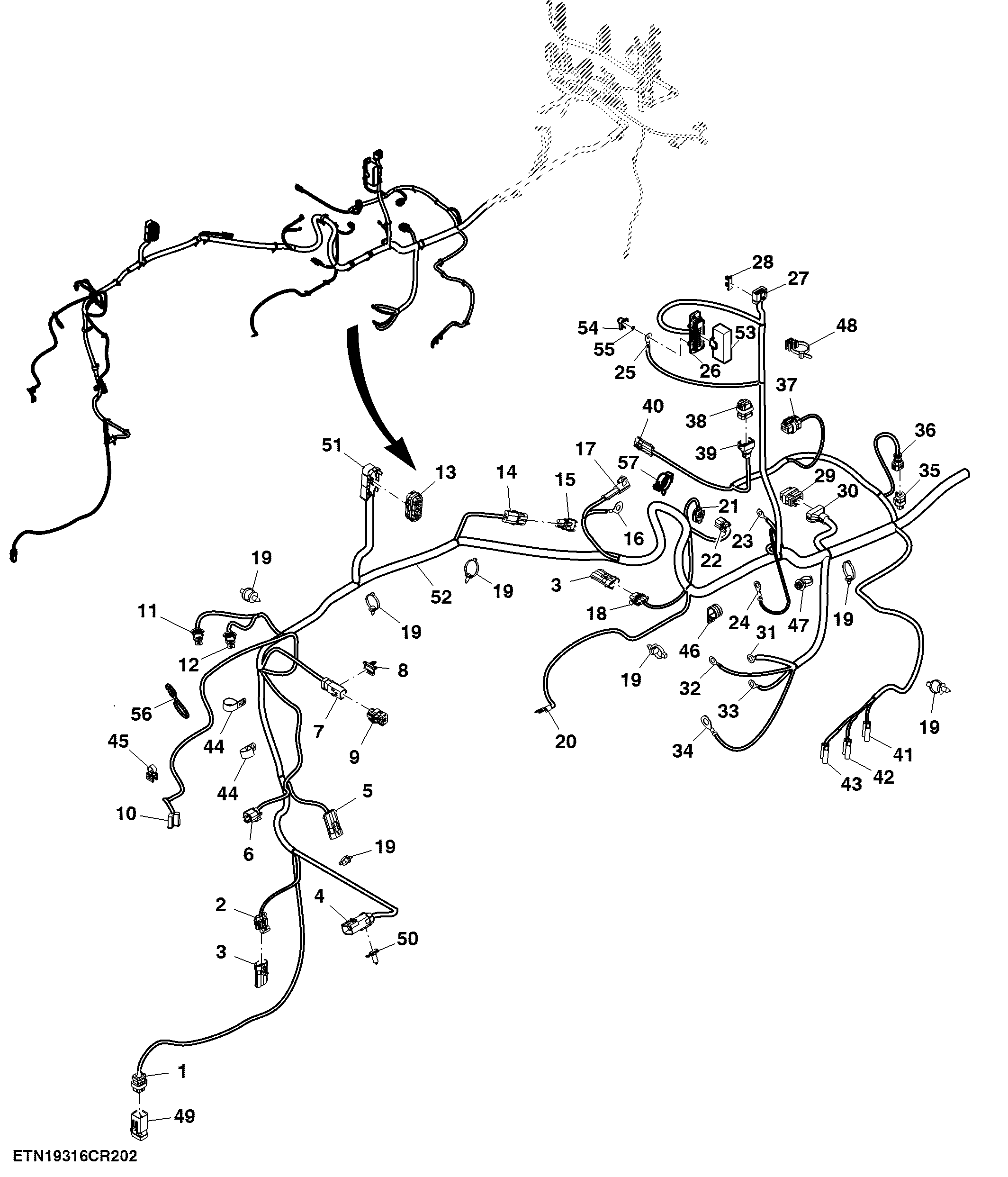

Wiring Harness, Chassis, T2 Engine (2/4) ( - 914100)
