Wiring Harness, Chassis, IT4 Engine (2/4) (914101 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE586980	1	Chassis Wiring Harness	SUB FOR RE581466 OR RE579230 OR RE576308
2	57M10302	1	Elec. Connector Housing	X570A, Relay Module
2	RWA11136	6	Repair Wire Assembly	-
3	57M8910	1	Clip	-
4	57M7255	1	Elec. Connector Housing	X201A, Radar Interconnect
4	57M7290	1	Elec. Connector Accessory	-
4	RWA11083	3	Repair Wire Assembly	-
5	57M7257	1	Elec. Connector Housing	-
6	57M9786	1	Elec. Connector Housing	X028A, R2 Head Light Extension Interconnect
6	RWA11029	1	Repair Wire Assembly	Cavity 1, 3, 4
7	57M11336	1	Elec. Connector Accessory	-
8	RWA11082	3	Repair Wire Assembly	-
8	57M7290	1	Elec. Connector Accessory	-
8	57M7257	1	Elec. Connector Housing	X062A, R2 Clearance Light
9	57M9776	1	Elec. Connector Housing	A912, Vehicle Chassis CAN Bus Terminator
10	57M11134	1	Elec. Connector Housing	-
11	57M9940	1	Elec. Connector Accessory	-
12	57M8812	1	Elec. Connector Housing	Y101, Ether Solenoid
12	RWA11076	2	Repair Wire Assembly	-
13	57M7254	1	Elec. Connector Housing	B5009, Coolant Level Loss
13	57M9712	1	Elec. Connector Accessory	-
13	RWA11083	2	Repair Wire Assembly	-
14	57M7254	1	Elec. Connector Housing	B5010, Coolant Level Service
14	RWA11083	2	Repair Wire Assembly	-
14	57M9712	1	Elec. Connector Accessory	-
15	57M9800	1	Elec. Connector Housing	X502, S3B Engine Interface
15	RWA11027	1	Repair Wire Assembly	Cavity 2, 5, 6, 7, 8, 9, 10
15	RWA11026	1	Repair Wire Assembly	Cavity 3, 4
16	57M9844	2	Elec. Connector Accessory	-
17	RE538505	1	Elec. Connector Accessory	A5505-J3, ECU J3 Connector
17	RWA11026	1	Repair Wire Assembly	Cavity 1, 2, 7, 12, 15, 22, 25, 27, 29, 32, 33, 36, 38, 43, 44, 48, 50
17	RWA11026	1	Repair Wire Assembly	Cavity 13, 14, 23, 24
18	R528122	1	Elec. Connector Accessory	-
19	57M7175	1	Elec. Connector Terminal	S501_1, A/C Comp Ground
20	57M7293	1	Elec. Connector Housing	S501-A, A/C Comp Clutch
20	57M7295	1	Elec.Connect Locking Device	-
20	RWA11088	1	Repair Wire Assembly	Cavity A
21	57M7255	1	Elec. Connector Housing	X289, Diagnostic Pressure 1
21	57M7290	2	Elec. Connector Accessory	-
21	RWA11083	3	Repair Wire Assembly	-
22	57M7257	1	Elec. Connector Housing	-
23	57M8937	1	Elec. Connector Terminal	M301_FT4_S3, Starter Solenoid
24	57M8633	1	Elec. Connector Accessory	-
24	57M8924	1	Elec. Connector Housing	Y5014, Fan Solenoid - Increase
24	RWA11097	2	Repair Wire Assembly	-
25	57M8924	1	Elec. Connector Housing	Y5015, Fan Solenoid - Decrease
25	57M8633	1	Elec. Connector Accessory	-
25	RWA11097	2	Repair Wire Assembly	-
26	57M8875	1	Elec. Connector Terminal	G301D+, Alternator Excitation
27	57M8897	1	Elec. Connector Terminal	G301B+, Power To Load Center
28	57M12905	1	Elec. Connector Terminal	FEXX-1, Load Center
29	RE554429	1	Fuse Holder	FEXX, Front Load Center
29	RWA11045	1	Repair Wire Assembly	Cavity B4, B5, B6, B7, B9, B10
30	RE554428	1	Cover	-
31	RE554430	1	Cover	-
32	R536493	1	Nut	-
33	57M10297	1	Elec. Connector Housing	X180B, Hood Intecon
33	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 12, 13, 14
34	57M11374	1	Elec. Connector Accessory	-
35	57M9800	1	Elec. Connector Housing	X981B_ACS, Front Console Harness Interface
35	RWA10614	12	Repair Wire Assembly	-
36	57M7567	1	Elec. Connector Terminal	XGND2_46A, Single Point Ground Stud
37	57M7567	1	Elec. Connector Terminal	XGND2_46B, Single Point Ground Stud
38	57M7567	1	Elec. Connector Terminal	XGND2_46C, Single Point Ground Stud
39	57M7567	1	Elec. Connector Terminal	XGND2_46D, Single Point Ground Stud
40	57M7144	1	Elec. Connector Housing	M02, Rear Washer Pump
40	RWA11076	2	Repair Wire Assembly	-
41	57M7144	1	Elec. Connector Housing	M01, Front Washer Pump
41	RWA11076	2	Repair Wire Assembly	-
42	57M7144	1	Elec. Connector Housing	M03, Right Washer Pump
42	RWA11076	2	Repair Wire Assembly	-
43	RE258807	24	Tie Band	-
44	57M12137	2	Clamp	SUB FOR 57M10837
45	57M10421	2	Elec. Connector Accessory	-
46	AH225363	1	Clip	-
47	57M9229	2	Clip	-
48	57M9190	1	Clip	-
49	57M9437	2	Clamp	-
50	57M11231	1	Clip Kit	-
51	57M8924	1	Elec. Connector Housing	B5303_MFWD, Fan Speed
51	57M8633	1	Elec. Connector Accessory	-
51	RWA11099	2	Repair Wire Assembly	-

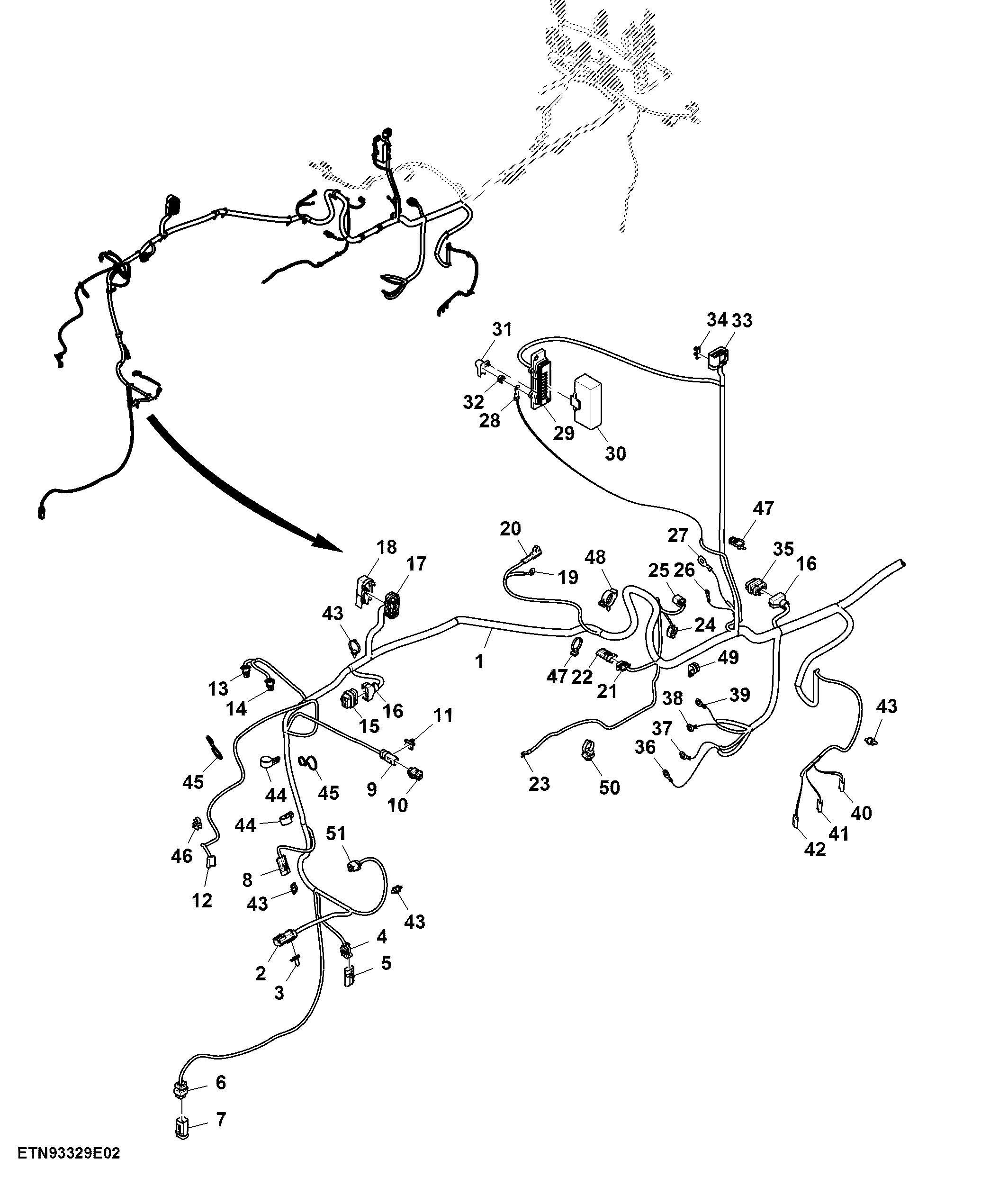

Wiring Harness, Chassis, IT4 Engine (2/4) (914101 - )
