Открытый узел

Selective Control Valve, W/ Hitch, 5 Rear SCV, High Flow

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE289056	1	Cover	Number II, Blue, SCV Coupler ORDER RE574660
2	RE289057	1	Cover	Number III, Brown, SCV Coupler ORDER RE574942
3	RE289058	1	Cover	Number IV, Black, SCV Coupler ORDER RE574943
4	RE289059	1	Cover	Number V, Violet, SCV Coupler ORDER RE574944
5	RE309618	1	Cover	Number I, Green, Breakaway Coupler ORDER RE574695
6	T122075	2	O-Ring	-
7	14M7275	2	Nut	M12
8	24M7240	2	Washer	13 X 25 X 3 mm
9	42M7064	2	Stud	-
10	14M7299	1	Flange Nut	M12
11	57M9498	1	Elec. Connector Housing	To SCV Valve
12	19M7837	1	Screw	M12 X 110
13	57M9500	1	Elec. Connector Accessory	-
13	57M7259	1	Elec. Connector Seal	-
13	57M11354	1	Elec. Connector Housing	To Chassis Harness
14	R537659	1	Bracket	ORDER R554437
15	RE342632	1	Wiring Harness	-
16	RE260570	1	Manifold	-
17	51M7041	4	O-Ring	11.300 X 2.200 mm
18	R10093	16	O-Ring	-
19	RE312613	2	Tube	-
20	RE46684	1	Fitting Plug	-
21	51M7045	3	O-Ring	19.300 X 2.200 mm, USE WITH RE292728
22	RE292728	1	Manifold	ORDER RE271469
23	RE588379	1	Selective Control Valve	SUB FOR RE580524
23	RE308338	1	Selective Control Valve	-
24	RE283453	2	Manifold	-
25	RE588376	1	Selective Control Valve	SUB FOR RE580229 OR RE337471
26	RE573039	1	Breakaway Coupler	-
27	RE588375	4	Selective Control Valve	SUB FOR RE580227 OR RE337466
28	R77175	3	Cover	-
29	RE190805	3	Diagnostic Coupling	-
30	R116115	1	Fitting	ALSO ORDER 51M7045; USE WITH RE292728
31	RE559660	2	Breakaway Coupler	Mid Profile
32	RE559661	2	Breakaway Coupler	High Profile
33	R267667	2	Cap	-
34	R267668	2	Hose Fitting	-
35	RE272882	6	Tube	-
36	R266977	16	Socket Head Screw	-
37	14M7327	3	Lock Nut	M8
38	24M7095	19	Washer	8.400 X 15 X 1.600 mm
39	38H5121	2	Adapter Fitting	-
40	T77858	2	O-Ring	-
41	R554437	1	Bracket	-
42	RE574660	1	Cover	Number II, Blue, SCV Coupler
43	RE574942	1	Cover	Number III, Brown, SCV Coupler
44	RE574943	1	Cover	Number IV, Black, SCV Coupler
45	RE574944	1	Cover	Number V, Violet, SCV Coupler
46	RE574695	1	Cover	Number I, Green, Breakaway Coupler
47	RE304819	1	Stud Kit	-
48	RE271469	1	Manifold	-

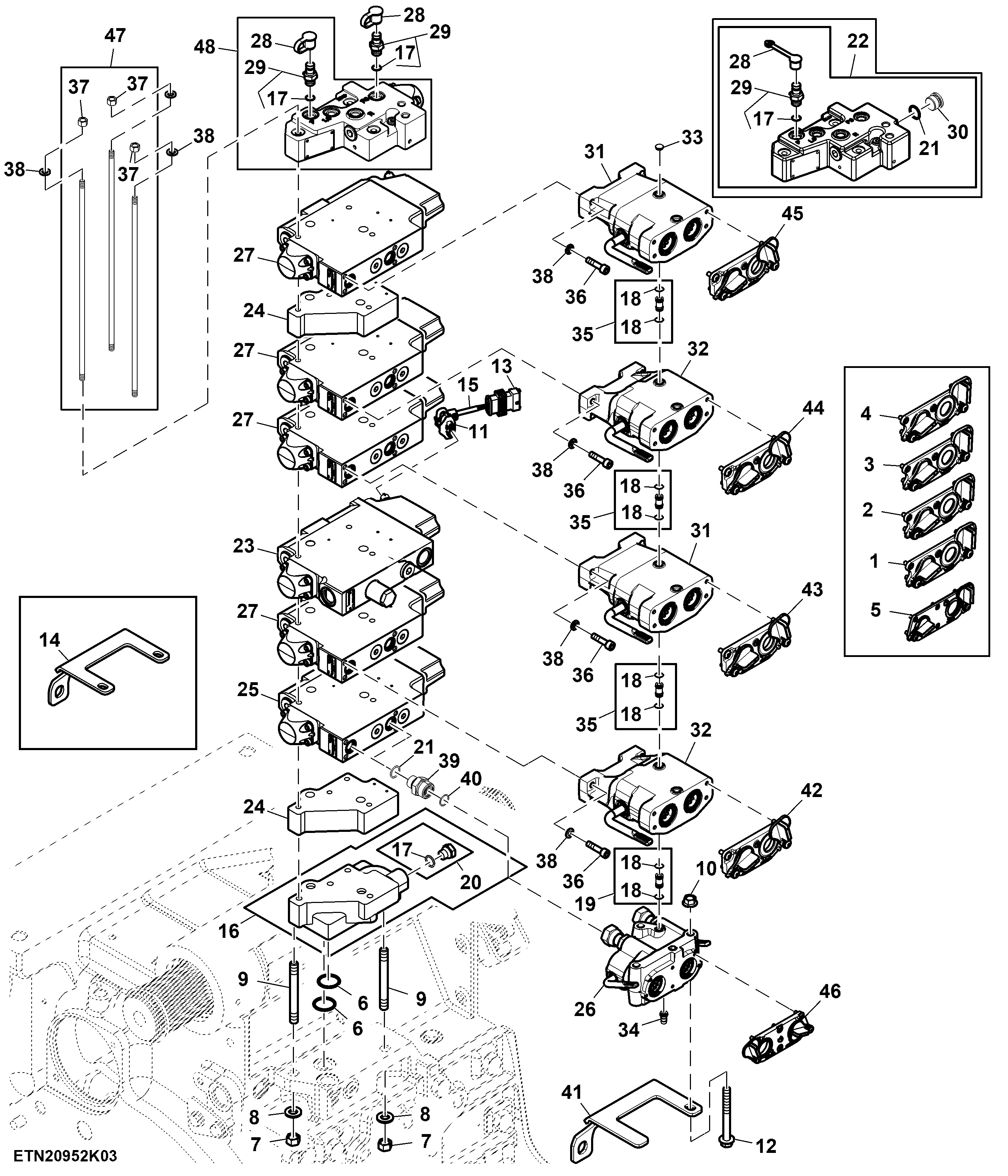

Selective Control Valve, W/ Hitch, 5 Rear SCV, High Flow

Нет текстового описания
