Открытый узел

HVAC Lines, Operator's Station, T2/T3 Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH76882	1	Clip	ORDER R561326; ALSO ORDER 19M10361
2	AH78237	1	Clamp	ORDER R561326; ALSO ORDER 19M10361
3	RE286820	1	Line	AC Suction, A-Post
4	RE286824	1	Line	AC High Pressure, Roof
5	RE286825	1	Line	AC Suction, Roof
6	RE305823	1	Line	Refrigerant, High Pressure
7	RE332499	1	Hose	Condensate Drain, RH Rear
8	R44302	5	Tie Band	-
9	RE332500	1	Hose	Condensate Drain, RH Rear
10	RE57589	2	Clip	-
11	R115466	2	Plug	-
12	R551492	1	Hose	-
13	R125223	1	Plate	-
14	R183409	4	O-Ring	-
15	R183412	3	O-Ring	-
16	R289547	3	Hose	Condensate Drain
17	R286827	1	Half Clamp	-
18	R286832	1	Hose	Heater Supply
19	R559859	1	Clamp	SUB FOR R286834
20	R289546	1	Strap	-
21	R291221	4	Grommet	-
22	R293158	3	Half Clamp	-
23	R294567	3	Half Clamp	-
24	T184924	2	Hose Clamp	-
25	19M8666	1	Screw	M6 X 16
26	24M7100	4	Washer	6.600 X 22 X 2 mm
27	37M7092	1	Screw	M8 X 16, USE WITH AH76882 AND AH78237
28	37M7352	6	Screw	-
29	57M8902	2	Clip	-
30	19M7979	2	Screw	M8 X 55
31	H120847	4	Clamp	-
32	H121168	2	Plate	-
33	R280791	2	Push Nut	-
34	R332503	1	Hose	Condensate Drain, RH Front
35	RE574463	1	Line	Coolant Return SUB FOR RE572823
36	RE574464	1	Line	Coolant Return SUB FOR RE572824
37	RE560644	1	Hose	Condensate Drain, LH Rear
38	R332501	1	Hose	Condensate Drain, LH Front
39	R294565	3	Half Clamp	-
40	R542019	3	Half Clamp	-
41	RE573278	1	Hose	SUB FOR RE560635
42	R552672	1	Plate	-
43	24M7024	1	Washer	9 X 28 X 3 mm
44	R215302	2	Clip	-
45	L206271	2	Clamp	-
46	19M10361	1	Socket Head Screw	M8 X 35, SUB FOR APPL R552448; USE WITH R561326
47	R561326	1	Clamp	-

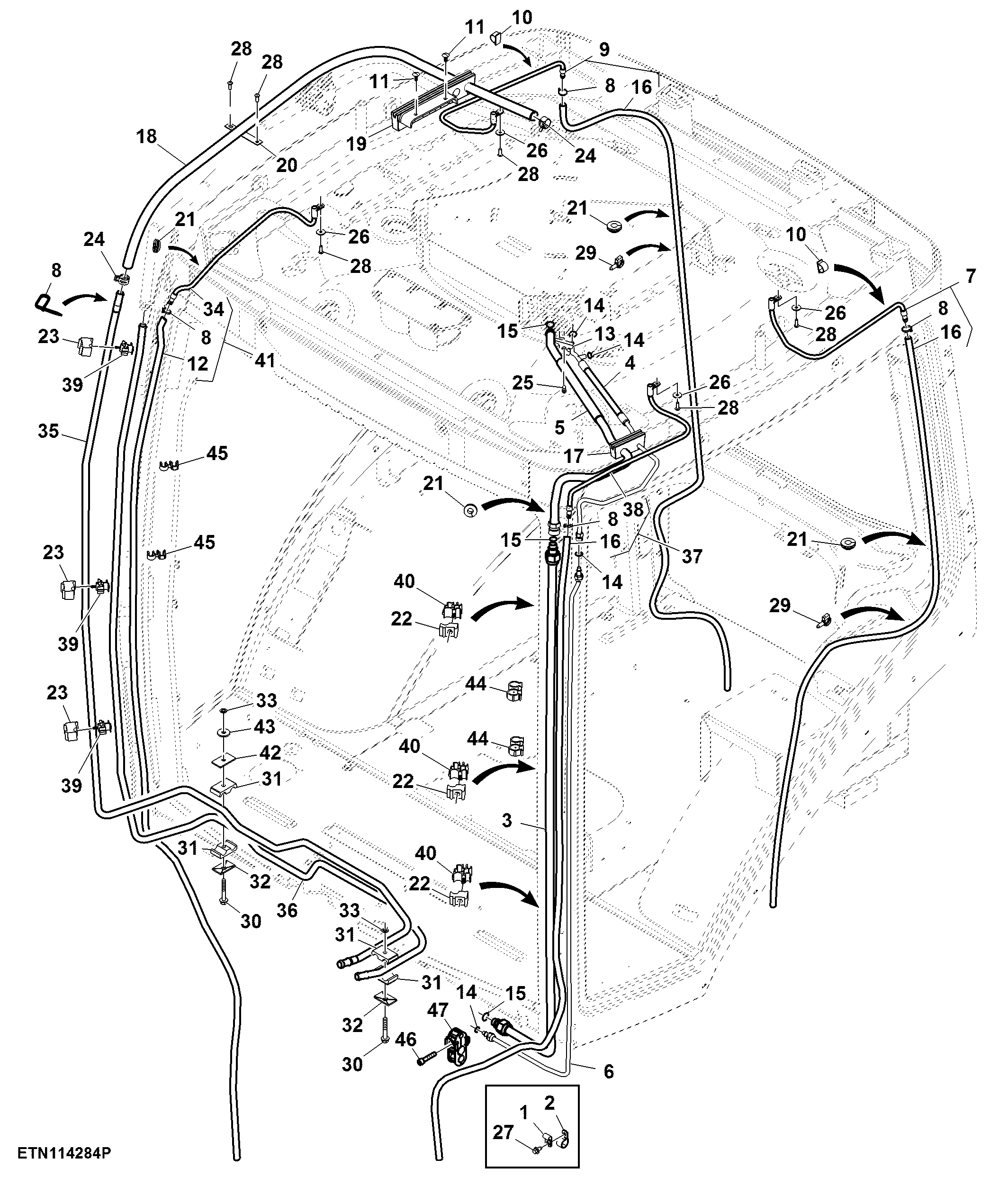

HVAC Lines, Operator's Station, T2/T3 Engine
