Battery Cable, W/ Battery Disconnect, IVT™, FT4 Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE337820	1	Battery Cable	Negative
2	RE574134	1	Battery Cable	Positive, FT4 / IT4, SUB FOR RE572515
3	RE574139	1	Battery Cable	Cab Power, INCLUDES 57M8902; SUB FOR RE572516
4	RE572517	1	Battery Cable	Roof Power, INCLUDES (4) 57M9229
5	RE572520	1	Battery Cable	Positive, Back Up Pump, INCLUDES (6) 57M8902
6	RE572518	1	Battery Cable	Alternator
7	RE572542	1	Bracket	-
8	T102934	3	Clamp	-
9	T74416	3	Clamp	-
10	T75197	2	Clamp	-
11	RE574141	1	Battery Cable	Battery Disconnect, SUB FOR RE572526
12	14M7296	4	Flange Nut	M10
13	14M7299	1	Flange Nut	M12
14	19M7784	2	Screw	M10 X 20
15	19M7797	2	Screw	M6 X 40
16	19M7866	9	Screw	M8 X 20
17	19M7910	2	Screw	M16 X 55
18	24M7055	1	Washer	8.400 X 16 X 1.600 mm
19	H168854	2	Clamp	-
20	M84972	2	Nut	-
21	R135871	1	Elec. Connector Terminal	-
22	R96066	1	Cover	-
23	RE285712	1	Nut	-
24	RE304437	1	Battery Cable	Cab Control
25	RE331826	1	Bracket	-
26	14M7298	6	Flange Nut	M8
27	M84971	1	Nut	-
28	RE574142	1	Battery Cable	Battery Disconnect, SUB FOR RE572136
29	R343208	1	Clamp	-
30	AA27556	4	Hose Clamp	-
31	14M7400	1	Lock Nut	M10
32	AH90990	2	Clip	-
33	RE569403	1	Battery Cable	Cab Ground
34	19M7798	2	Screw	M8 X 40
35	28H3376	1	Spacer	0.364" X 0.540" X 9/16"
36	T295912	3	Clamp	-
37	57M8902	6	Clip	-
38	57M9229	4	Clip	-
39	R555400	1	Clamp	USE WITH RE577812
40	24H1122	1	Washer	3/8" X 7/8" X 0.083"

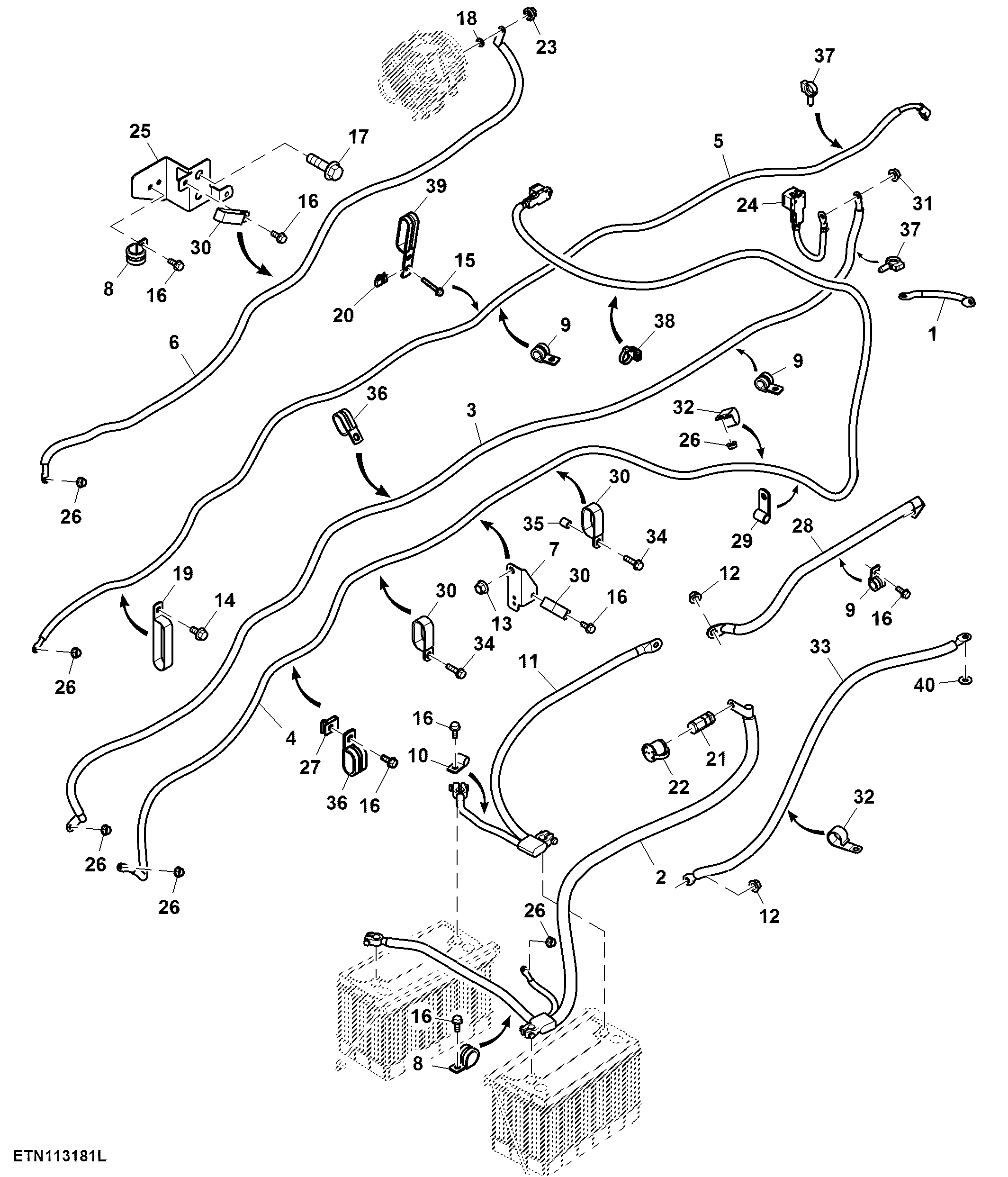

Battery Cable, W/ Battery Disconnect, IVT™, FT4 Engine
