Открытый узел

6569 Turbocharger

6569 Turbocharger

6569 Turbocharger

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

6569 Turbocharger

Нет текстового описания

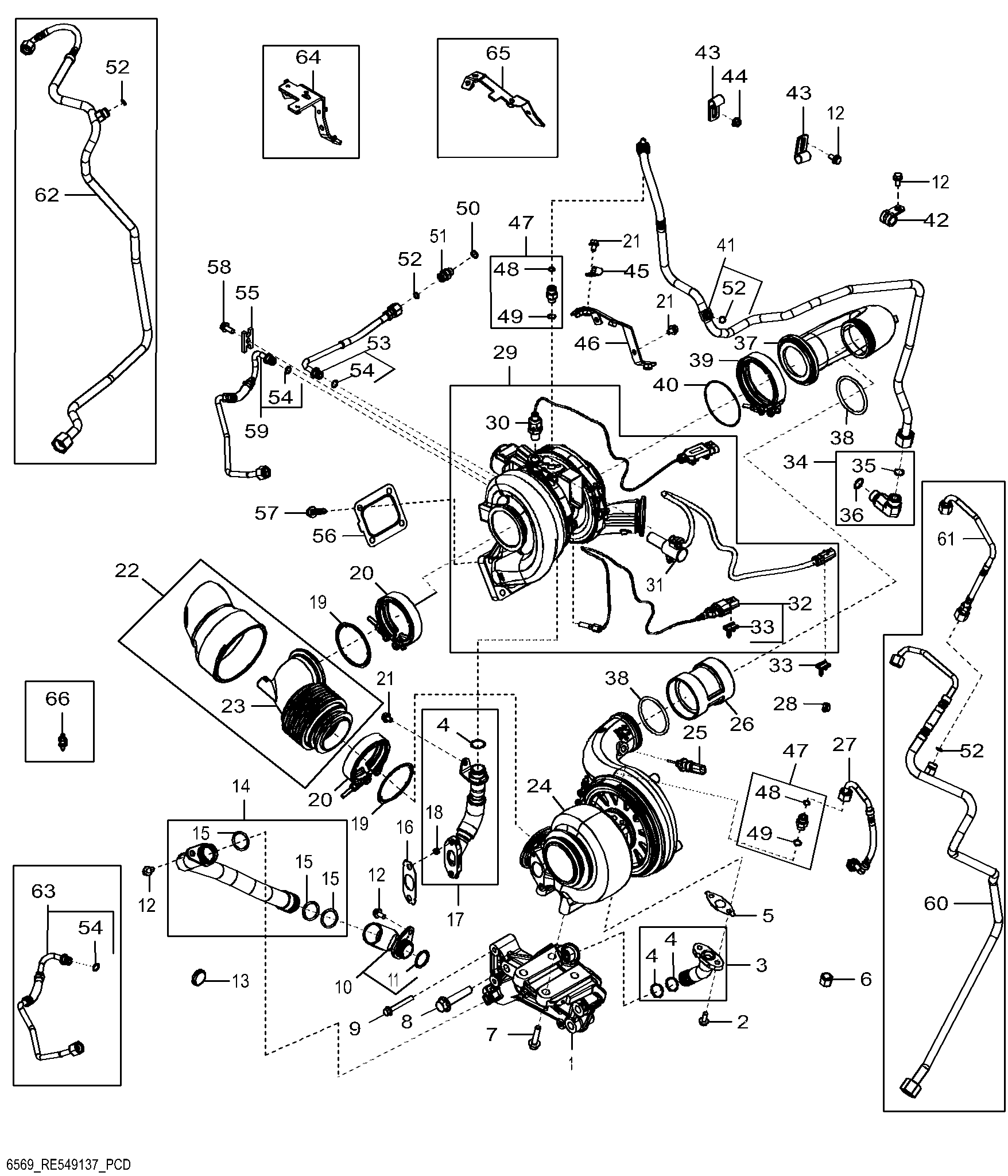

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R536253	1	Support	Low Pressure Turbocharger MARKED R536254
2	19M8062	2	Screw	M8 X 20
3	RE540403	1	Line	Low Pressure Turbo Oil Return
4	R56466	3	O-Ring	-
5	R521158	1	Gasket	Turbo Oil Return
6	38H1415	1	Fitting	-
7	R528196	4	Cap Screw	-
8	19M10175	4	Screw	M14 X 70
9	19M7802	2	Screw	M8 X 65
10	RE540185	1	Elbow Fitting	Turbo Oil Drain MARKED R529210
11	R63185	1	O-Ring	-
12	19M7865	4	Screw	M8 X 16
13	R529512	1	Plug	-
14	RE540046	1	Line	Turbo Oil Return
15	R71732	3	O-Ring	-
16	R529141	1	Gasket	Turbo Oil Return
17	RE541186	1	Line	High Pressure Turbo Oil Return MARKED R529708 AND R529707; INCLUDES (2) 34M7189 AND R56466
18	34M7189	2	Spring Pin	11 X 8 mm
19	R528112	2	Seal	Interstate Duct USE WITH RE547967 OR RE548755
19	R538777	2	Gasket	Interstate Duct USE WITH RE572504 OR RE572497
20	RE289839	2	Clamp	-
21	RE524730	6	Cap Screw	-
22	RE572504	1	Air Flow Tube	Insulated SUB FOR RE547967
23	RE572497	1	Air Flow Tube	Exhaust SUB FOR RE548755
24	RE547970	1	Turbocharger	-
24	SE502547	1	Turbocharger Reman	REMAN FOR RE547970
25	DZ122879	1	Temperature Sensor	Exhaust Gas Recirculation Temperature Sensor SUB FOR RE537636
26	R527792	1	Pipe	Interstage Coupler MARKED R542203
27	DZ103950	1	Line	Low Pressure Oil Supply ORDER DZ116201; SUB FOR RE570758
27	DZ116201	1	Line	Low Pressure Oil Supply
28	R44302	1	Tie Band	-
29	DZ120173	1	Turbocharger	SUB FOR DZ118538 OR RE549136
30	RE572398	1	Sensor	Vane Position Sensor SUB FOR RE539016
31	RE539017	1	Sensor	Valve Actuator Sensor
32	RE539015	1	Sensor	Turbo Speed Sensor
33	57M9940	2	Elec. Connector Accessory	-
34	DZ121468	1	Elbow Fitting	-
35	R534793	1	O-Ring	-
36	R534283	1	O-Ring	-
37	RE539934	1	Air Duct	Turbocharger Compressor Interstage MARKED R528090; INCLUDES R86588
38	R86588	2	O-Ring	-
39	RE285844	1	Clamp	-
40	R528247	1	O-Ring Kit	-
41	DZ108603	1	Line	High Pressure Oil Supply ORDER DZ116200
41	DZ116200	1	Line	High Pressure Oil Supply
42	57M10837	1	Clamp	SUB FOR APPL R538778
43	R123324	2	Clamp	-
44	14M7524	1	Flange Nut	M8
45	57M10899	4	Clamp	SUB FOR APPL 57M9854 OR 57M10828 OR 57M10947
46	DZ104059	1	Bracket	Wiring Harness
47	RE539472	2	Fitting	-
48	R63548	2	O-Ring	-
49	51M7095	2	O-Ring	11.300 X 2.200 mm
50	51M7041	1	O-Ring	11.300 X 2.200 mm
51	38H5002	1	Adapter Fitting	-
52	T77613	2	O-Ring	-
53	RE550320	1	Line	Coolant Return
54	T15712	2	O-Ring	-
55	R534737	1	Clamp	-
56	R535094	1	Gasket	-
57	R534121	4	Cap Screw	-
58	19M7866	1	Screw	M8 X 20
59	RE569133	1	Line	Coolant Supply
60	RE553433	1	Line	High Pressure Oil Supply INCLUDES T77613; ORDER DZ116200 AND DZ116201
61	RE553434	1	Line	Low Pressure Turbo Oil Supply USE WITH RE553433
62	RE570759	1	Line	High Pressure Turbo Oil Supply ORDER DZ116200; INCLUDES T77613
63	RE550319	1	Line	Coolant Supply ORDER RE569133
64	RE561111	1	Bracket	Wiring Harness ORDER DZ104059
65	RE547021	1	Bracket	Wiring Harness ORDER DZ104059
66	RE258807	1	Tie Band	-
67	R76477	1	Tie Band	Not Illustrated
