Chassis Wiring Harness Connectors, T3 Engine (1/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE316469	1	Chassis Wiring Harness	SUB FOR RE267939
2	-	1	Part 2	Suspension Harness USE WITH (7) 57M9809_Pins
3	57M8924	1	Elec. Connector Housing	Fuel Level Sender USE WITH (2) 57M8560_Pins, (2) 57M8566_Seals
3	57M8633	1	Elec. Connector Accessory	-
4	57M9498	1	Elec. Connector Housing	Auxillary Valve USE WITH (4) 57M8625_Pins, (4) 57M7400_Seals
4	57M9500	1	Elec. Connector Accessory	-
4	57M9499	1	Elec. Connector Accessory	-
5	57M9498	1	Elec. Connector Housing	SCV V Valve USE WITH (4) 57M8625_Pins, (4) 57M7400_Seals
5	57M9500	1	Elec. Connector Accessory	-
5	57M9499	1	Elec. Connector Accessory	-
6	57M9498	1	Elec. Connector Housing	SCV IV Valve USE WITH (4) 57M8625_Pins, (4) 57M7400_Seals
6	57M9500	1	Elec. Connector Accessory	-
6	57M9499	1	Elec. Connector Accessory	-
7	57M9498	1	Elec. Connector Housing	Hitch Valve USE WITH (4) 57M8625_Pins, (4) 57M7400_Seals
7	57M9500	1	Elec. Connector Accessory	-
7	57M9499	1	Elec. Connector Accessory	-
8	57M9498	1	Elec. Connector Housing	SCV III Valve USE WITH (4) 57M8625_Pins, (4) 57M7400_Seals
9	57M9498	1	Elec. Connector Housing	SCV II Valve USE WITH (4) 57M8625_Pins, (4) 57M7400_Seals
9	57M9500	1	Elec. Connector Accessory	-
9	57M9499	1	Elec. Connector Accessory	-
10	57M9498	1	Elec. Connector Housing	SCV I Valve USE WITH (4) 57M8625_Pins, (4) 57M7400_Seals
10	57M9500	1	Elec. Connector Accessory	-
10	57M9499	1	Elec. Connector Accessory	-
11	RE12363	1	Electrical Connector Assy	Implement Switch USE WITH (2) R82928_Pins, (2) 57M9219_Seals
12	-	1	Part 25	Trailer Connector 2 USE WITH (5) 57M9807_Pins, 57M9809_Pins
13	57M7309	1	Elec. Connector Housing	Trailer connector 1 USE WITH (2) 57M7299_Pins, 57M9217_Seals, 57M9216_Seals
13	57M7306	1	Elec.Connect Locking Device	-
14	RE210023	1	Electrical Connector Assy	Implement Can Data Connector USE WITH (2) 57M7614_Pins, (2) R78067_Pins
14	57M8884	1	Elec. Connector Accessory	-
15	57M8015	1	Electrical Connector Assy	Implement can USE WITH (4) 57M8165_Pins
15	57M8016	1	Elec.Connect Locking Device	-
16	57M7262	1	Elec. Connector Housing	Hitch Following USE WITH (10) 57M7494_Pins, (10) 57M9215_Seals
16	L116274	1	Elec. Connector Accessory	-
16	57M8907	1	Elec.Connect Locking Device	-
17	-	1	Part 35	Left Fender Hitch Extension Switch USE WITH (6) 57M9809_Pins
18	-	1	Part 36	Power Relay Module Coil Connection USE WITH (4) 57M9809_Pins
19	-	1	Part 37	Power Relay Module Switched Power Outlet USE WITH 57M9196_Pins
20	57M8519	1	Elec. Connector Housing	Hydraulic Controller J1 USE WITH (9) 57M8530_Pins, (2) 57M8531_Pins; ORDER 57M10605
20	57M8528	1	Electrical Connector Cap	-
20	57M10605	1	Elec. Connector Housing	-
21	57M8527	1	Elec. Connector Housing	Hydraulic Controller J2 USE WITH (25) 57M8530_Pins, (5) 57M8531_Pins; ORDER 57M10615
21	57M8529	1	Electrical Connector Cap	-
21	57M10615	1	Elec. Connector Housing	-
22	57M8520	1	Elec. Connector Housing	Hydraulic Controller J3 USE WITH (8) 57M8530_Pins, (3) 57M8531_Pins; ORDER 57M10607
22	57M8528	1	Electrical Connector Cap	-
22	57M10607	1	Elec. Connector Housing	-
23	57M7307	1	Electrical Connector Assy	-
23	57M7305	1	Elec. Connector Housing	Transmission Harness USE WITH (3) 57M7527_Pins, (3) 57M9216_Seals
24	57M8944	1	Elec. Connector Housing	Transmission Harness USE WITH (7) 57M8942_Pins, (9) 57M8621_Pins, (7) 57M7399_Seals, (9) 57M7400_Seals
24	57M8943	1	Elec.Connect Locking Device	-
25	57M8070	1	Elec. Connector Housing	Transmission Harness USE WITH (8) 57M8733_Pins, (14) 57M8732_Pins, (8) 57M7399_Seals, (14) 57M7400_Seals
25	57M8943	1	Elec.Connect Locking Device	-
25	57M8076	1	Elec. Connector Terminal	-
26	57M8523	1	Elec. Connector Housing	ECU J3 USE WITH (18) 57M8530_Pins, (6) 57M8531_Pins; ORDER 57M10606
26	57M8528	1	Electrical Connector Cap	-
26	57M10606	1	Elec. Connector Housing	-
27	57M8527	1	Elec. Connector Housing	ECU J2 USE WITH (10) 57M8530_Pins, (7) 57M8531_Pins; ORDER 57M10615
27	57M8529	1	Electrical Connector Cap	-
27	57M10615	1	Elec. Connector Housing	-
28	57M8519	1	Elec. Connector Housing	ECU J1 USE WITH (13) 57M8530_Pins, (8) 57M8531_Pins; ORDER 57M10605
28	57M8528	1	Electrical Connector Cap	-
28	57M10605	1	Elec. Connector Housing	-

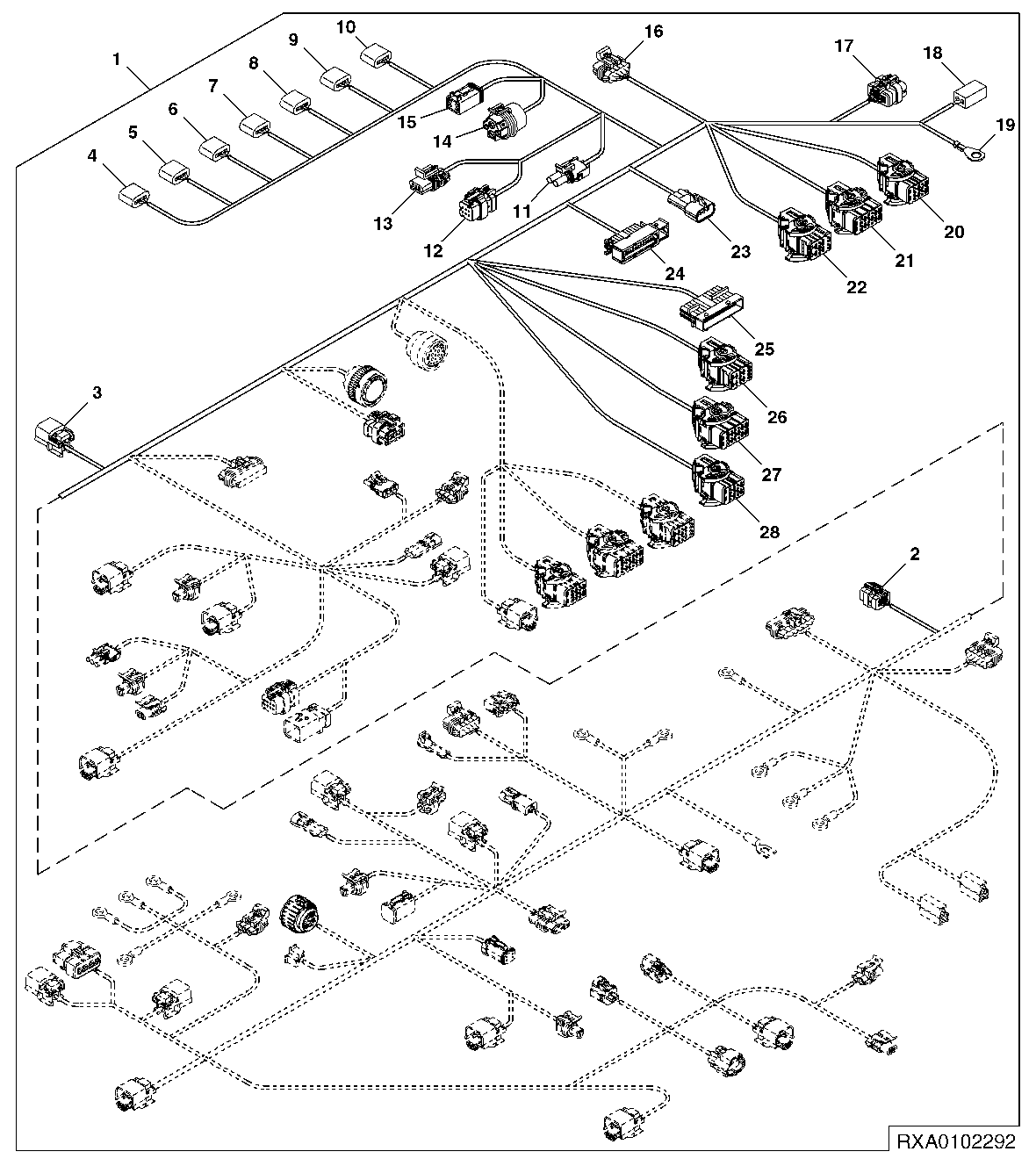

Chassis Wiring Harness Connectors, T3 Engine (1/3)
