Открытый узел

Selective Control Valve, 2 SCV W/O Front PTO

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R537854	1	Manifold	-
2	AL231434	1	Valve Cover	SUB FOR AL206035
3	AT333808	1	Solenoid Valve Coil	-
4	RE345418	1	Oil Line	Front SCV Coupler, RH Pressure
5	AL229870	3	Selective Control Valve	Selective Control Valve, W/ O stepper motor SUB FOR AL213976
6	AL172968	1	Cap	-
7	AL172974	3	Fitting Plug	-
8	AL180447	2	Check Valve	Low Leak Ball Version
9	AL203292	2	Seal Kit	-
10	AL205619	1	Valve Kit	USE WITH AL213976
10	AL231130	1	Valve Kit	USE WITH AL229870
11	L205093	2	Clip	-
12	AL207509	2	Seal Kit	USE WITH AL213976 AND AL206035
12	AL231108	2	Seal Kit	USE WITH AL229870 AND AL231434
13	AL209465	1	Valve Spool	-
14	AL209466	1	Fitting Plug	-
15	AL209467	1	Seal Kit	USE WITH AL213976
15	AL231435	1	Seal Kit	USE WITH AL229870
16	AL214530	2	Spool Kit	-
17	L209245	1	Compression Spring	-
18	RE345830	1	Valve Stack	-
19	R564727	1	Manifold	-
19	R345831	1	Manifold	ORDER R564727
20	RE345828	1	Valve Stack	Order Components
21	38H5017	1	Elbow Fitting	-
22	51M7043	1	O-Ring	15.300 X 2.200 mm
23	T77857	3	O-Ring	-
24	38H5040	1	Tee Fitting	-
25	51M7045	6	O-Ring	19.300 X 2.200 mm
26	AN207423	1	Seal Kit	-
27	AN279595	1	Spool Valve	-
28	51M7041	6	O-Ring	11.300 X 2.200 mm
29	14M7273	6	Nut	M8
30	L173497	3	Stud	-
31	19M8705	9	Screw	M6 X 65
32	AL218230	3	Motor	SUB FOR APPL AL216464
33	64M1017	6	Drain Plug	-
34	L173495	3	Stud	-
35	RE46687	5	Drain Plug	INCLUDES (5) 51M7045
36	AL207508	2	Seal Kit	USE WITH AL206035

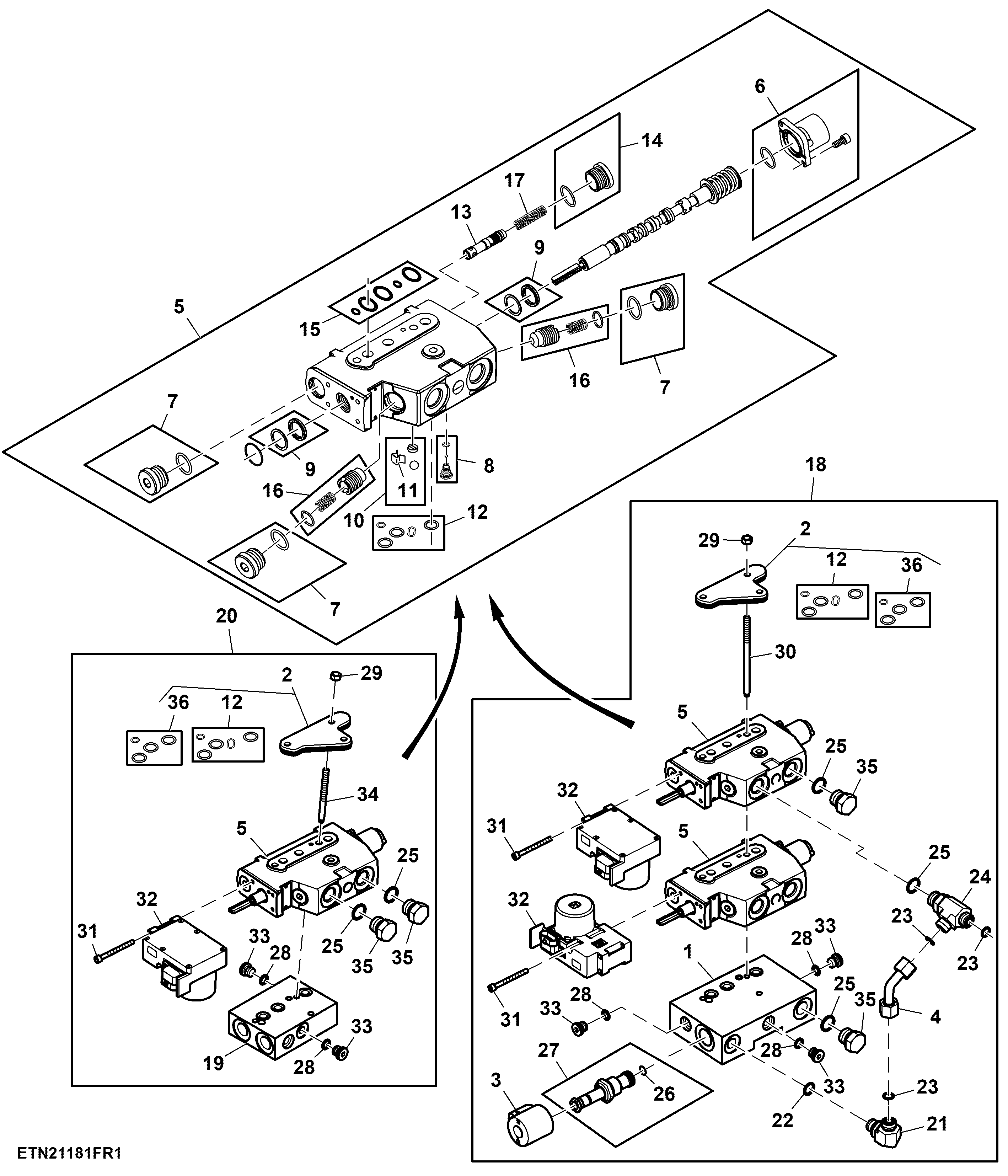

Selective Control Valve, 2 SCV W/O Front PTO

Нет текстового описания
