Открытый узел

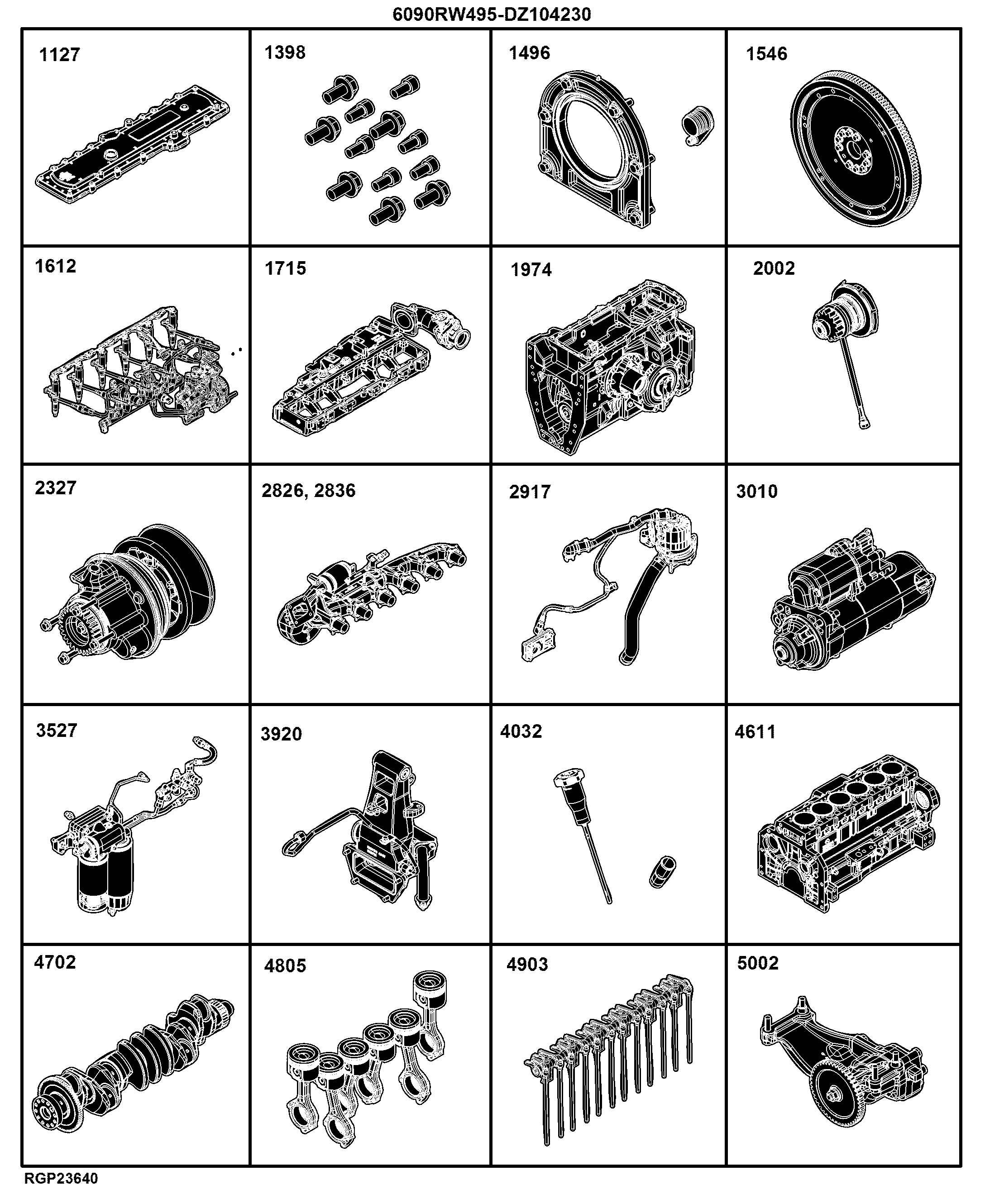

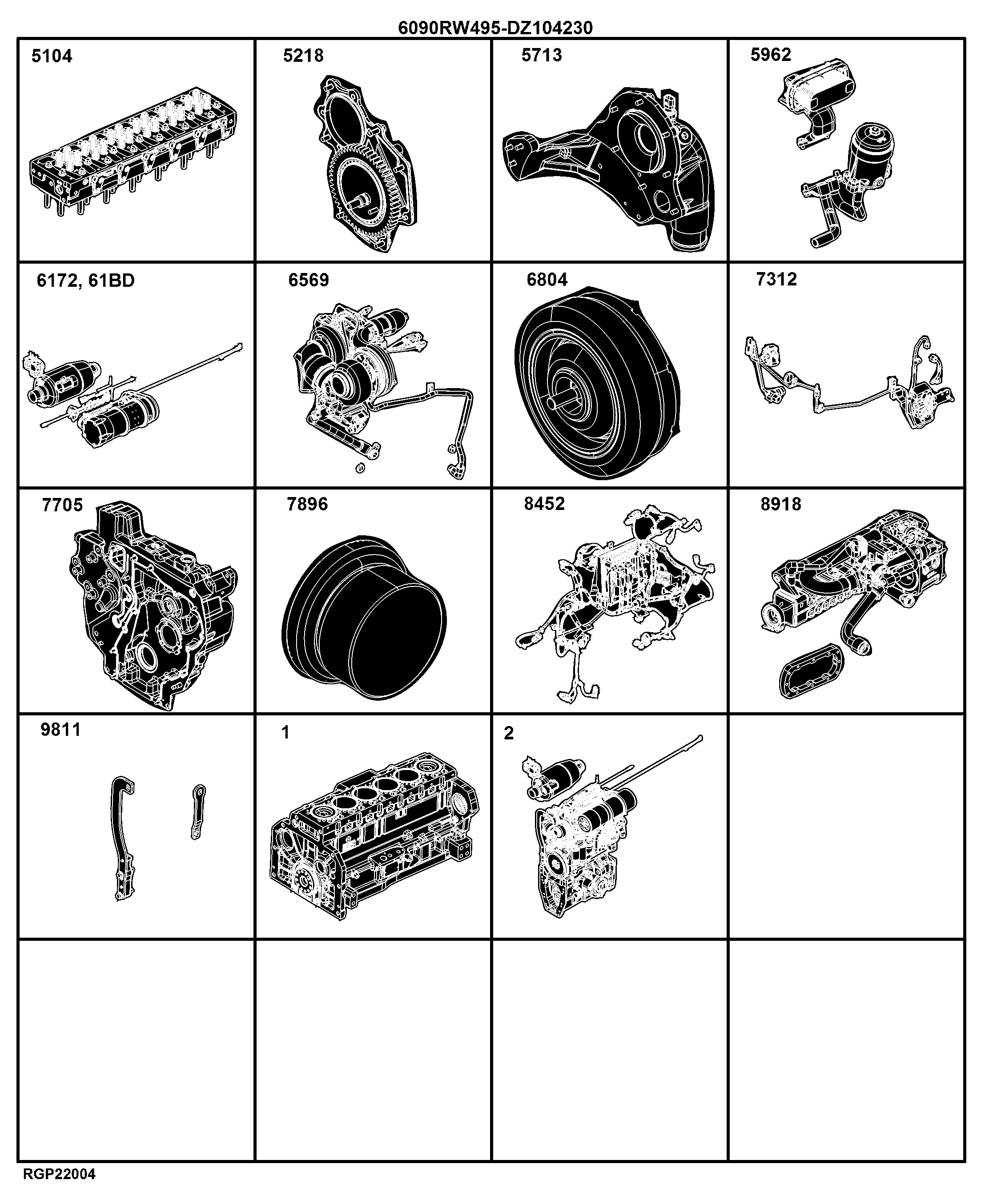

8 Engine 6090RW495-DZ104230-ETN144367

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Main Bearing Kit	-
-	-	1	7312 Fuel Dosing System	-
-	-	1	7705 Timing Gear Cover	-
-	-	1	7896 Air Compressor Mounting Plug	-
-	-	1	8452 Engine Wiring Harness	-
-	-	1	8918 Exhaust Gas Recirculation	-
-	-	1	9811 Lift Straps Hardware	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Crankshaft Thrust Bearing Kit	-
-	-	1	9901 Engine Gasket Kit (1/2)	-
-	-	1	9901 Engine Gasket Kit (2/2)	-
-	-	1	9901 Engine Overhaul Kit (1/3)	-
-	-	1	9901 Engine Overhaul Kit (2/3)	-
-	-	1	9901 Engine Overhaul Kit (3/3)	-
-	-	1	9901 Gasket Kit, Cylinder Head Removal	-
-	-	1	6804 Crankshaft Damper	-
-	-	1	9901 Nozzle kit	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Service Kit, Cylinder Head Bolts	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Short Block Hardware Kit (1/4)	-
-	-	1	9901 Short Block Hardware Kit (2/4)	-
-	-	1	9901 Short Block Hardware Kit (3/4)	-
-	-	1	9901 Short Block Hardware Kit (4/4)	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Water Pump Repair Kit	-
-	-	1	3920 Thermostat Housing	-
-	-	1	1398 Crankshaft Pulley Hardware	-
-	-	1	1496 Flywheel Housing	-
-	-	1	1546 Flywheel	-
-	-	1	1612 Fuel Injection System	-
-	-	1	1715 Air Intake Manifold	-
-	-	1	1974 Oil Pan	-
-	-	1	2002 Water Pump	-
-	-	1	2327 Fan Drive (1/2)	-
-	-	1	2327 Fan Drive (2/2)	-
-	-	1	2826 Exhaust Manifold ( - 062655)	-
-	-	1	2836 Exhaust Manifold (062656 - )	-
-	-	1	2917 Ventilating System	-
-	-	1	3010 Starting Motor	-
-	-	1	3527 Fuel Filter	-
-	-	1	1127 Valve Cover	-
-	-	1	4032 Engine Oil Dipstick	-
-	-	1	4611 Cylinder Block	-
-	-	1	4702 Crankshaft and Bearings	-
-	-	1	4805 Connecting Rods and Pistons	-
-	-	1	4903 Valve Actuating Mechanism	-
-	-	1	5002 Engine Oil Pump	-
-	-	1	5104 Cylinder Head with Valves	-
-	-	1	5218 Auxiliary Drive	-
-	-	1	5713 Water Pump Inlet	-
-	-	1	5962 Engine Oil Cooler and Oil Filter	-
-	-	1	6172 Aftertreatment, Exhaust System (8345-8370R Tractor)	-
-	-	1	61BD Aftertreatment, Exhaust System	-
-	-	1	6569 Turbocharger	-

8 Engine 6090RW495-DZ104230-ETN144367

Нет текстового описания
