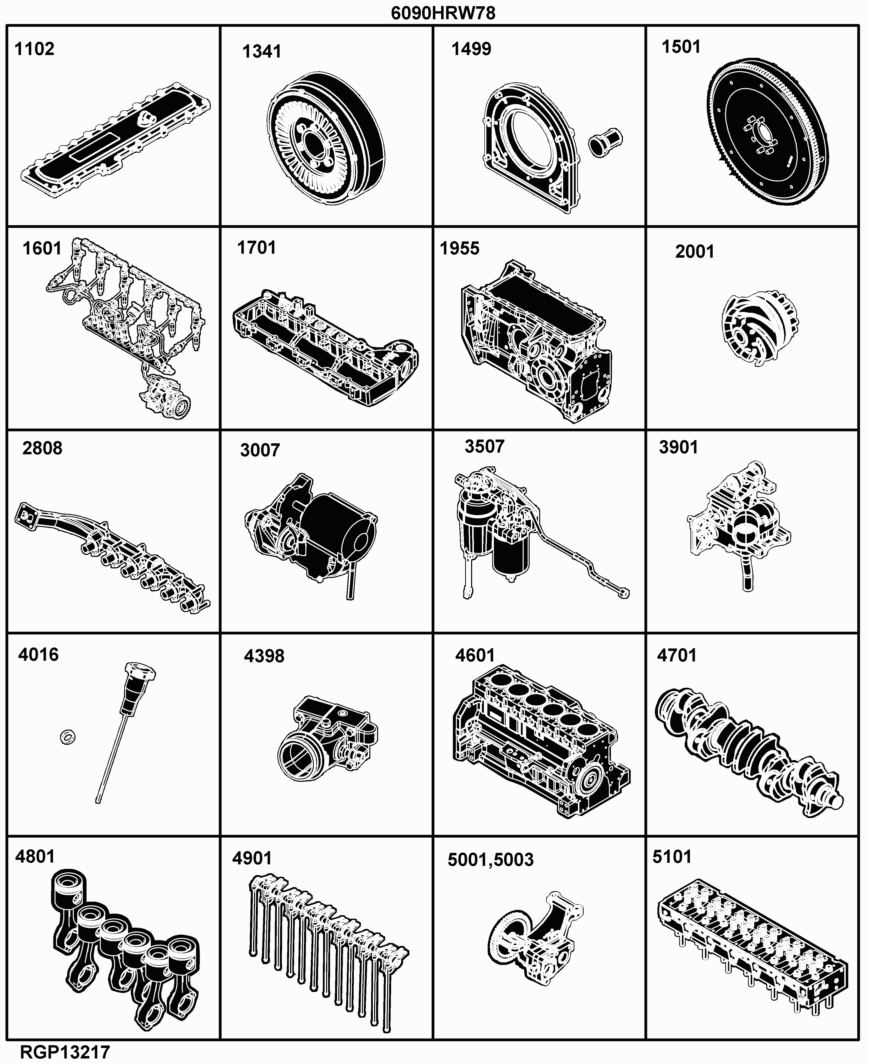

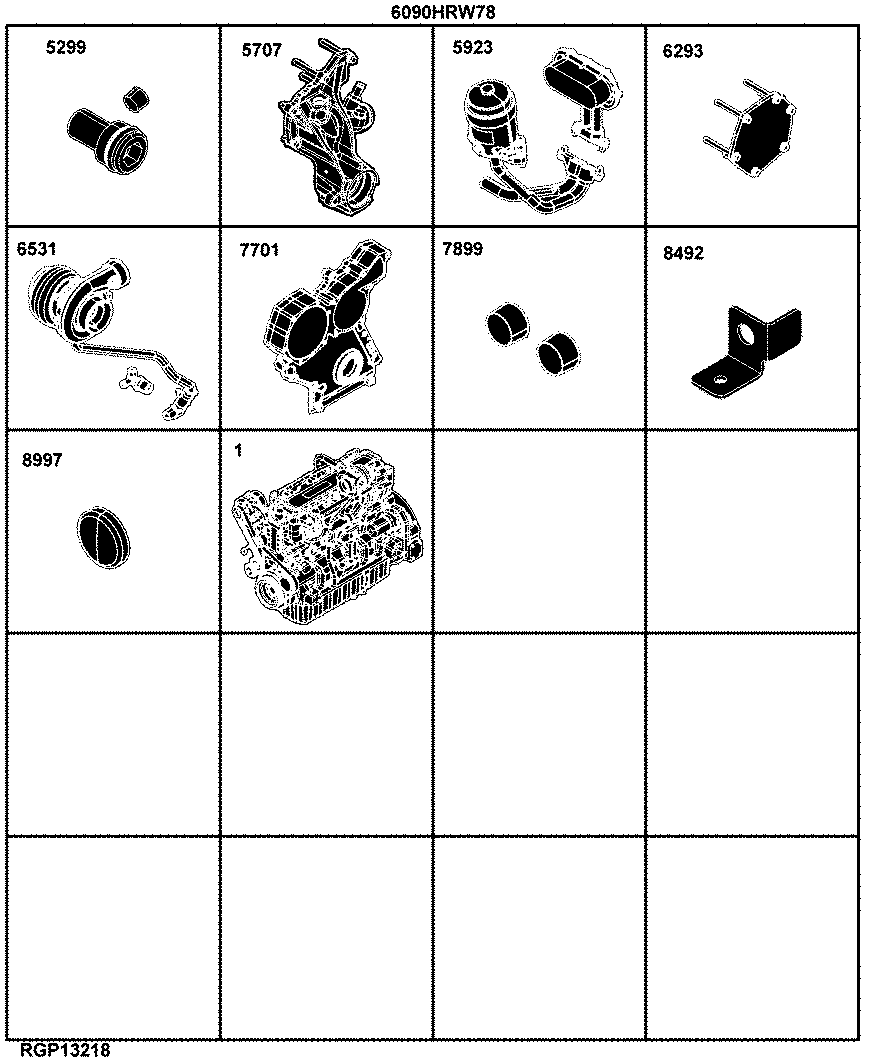

27 Engine 6090HRW78, 6090HRW86-RE541042-RE541050

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	4801 Connecting Rods and Pistons	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Complete Block Assembly	-
-	-	1	8997 Exhaust Gas Recirculation Plug	-
-	-	1	8492 Engine Wiring Harness Brackets	-
-	-	1	7899 Air Compressor Mounting Plug	-
-	-	1	7701 Timing Gear Cover	-
-	-	1	6531 Turbocharger	-
-	-	1	6293 Alternator Mounting	-
-	-	1	5923 Engine Oil Cooler and Oil Filter	-
-	-	1	5707 Water Pump Inlet	-
-	-	1	5299 Cylinder Block Fittings	-
-	-	1	5101 Cylinder Head with Valves	-
-	-	1	5003 Engine Oil Pump	-
-	-	1	5001 Engine Oil Pump	-
-	-	1	4901 Valve Actuating Mechanism	-
-	-	1	1102 Valve Cover	-
-	-	1	4701 Crankshaft and Bearings	-
-	-	1	4601 Cylinder Block	-
-	-	1	4398 Air Intake	-
-	-	1	4016 Engine Oil Dipstick	-
-	-	1	3901 Thermostat Housing, Thermostat and Cover	-
-	-	1	3507 Fuel Filter	-
-	-	1	3007 Starting Motor	-
-	-	1	2808 Exhaust Manifold	-
-	-	1	2001 Water Pump	-
-	-	1	1955 Oil Pan	-
-	-	1	1707 Intake Manifold	-
-	-	1	1601 Fuel Injection System	-
-	-	1	1501 Flywheel	-
-	-	1	1499 Flywheel Housing	-
-	-	1	1341 Damper	-

27 Engine 6090HRW78, 6090HRW86-RE541042-RE541050
