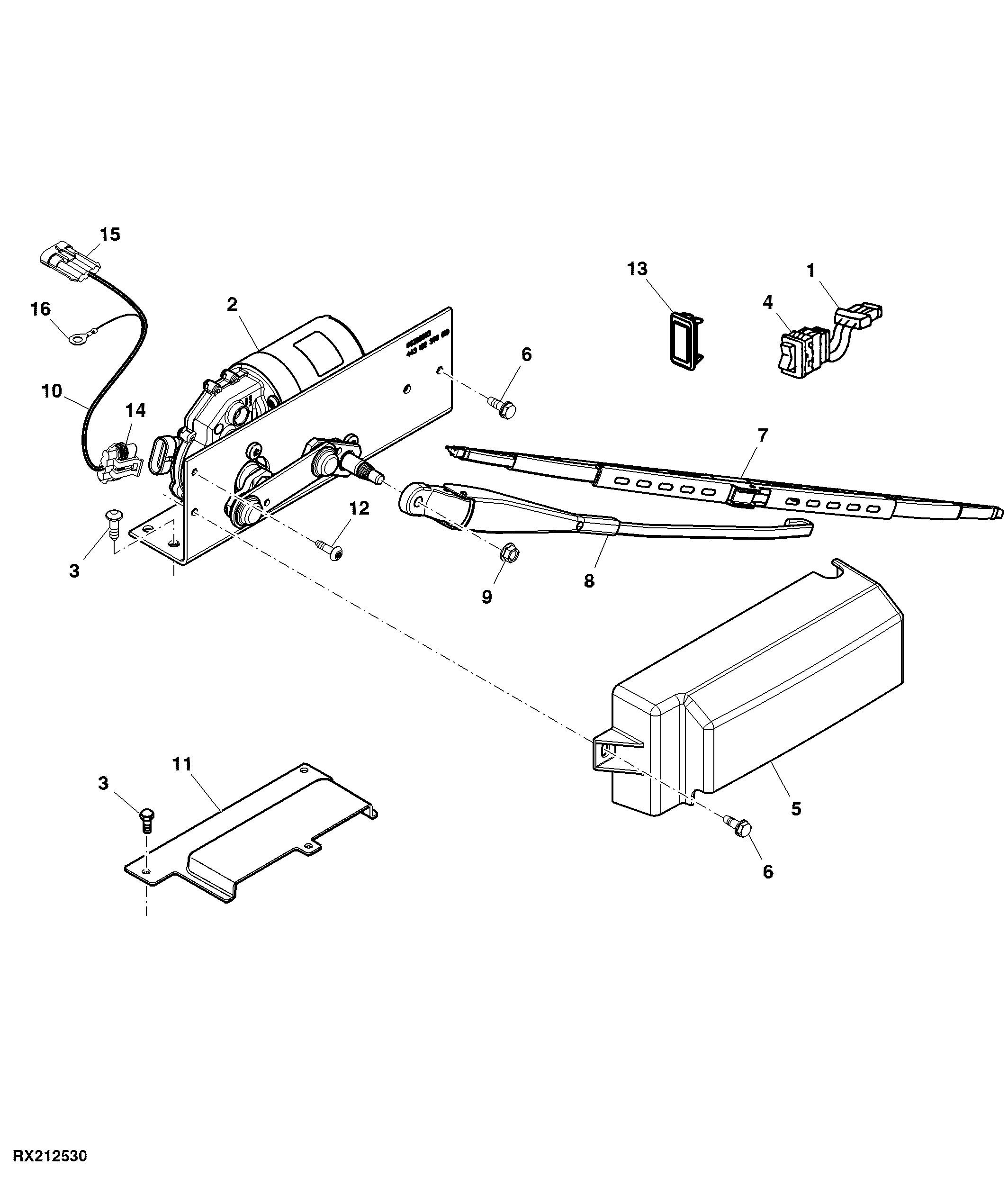

Windshield Wiper Motor Assembly, Front and Rear

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7730	2	Electrical Connector Assy	-
1	57M7791	1	Elec. Connector Housing	USE WITH (6) 57M8293_Pins
2	RE282983	1	Wiper Motor	SUB FOR APPL RE151494; ALSO ORDER RE311063
3	37M7352	3	Screw	(W/ Rear Wiper)
3	37M7352	6	Screw	(W/O Rear Wiper)
4	RE571942	1	Toggle/Rocker Switch	SUB FOR RE295458
5	R161356	1	Shield	-
6	37M7361	2	Screw	M6 X 16
7	AL153661	1	Wiper Blade	SUB FOR AT399275
8	RE245399	1	Wiper Arm	SUB FOR RE305296
9	14M7298	1	Flange Nut	M8
10	RE311063	1	Wiring Harness	(W/ Rear Wiper)
11	R261503	1	Cover	(W/O Rear Wiper)
12	GC00093	1	Screw	M5 X 16, ORDER GX22576
12	GX22576	1	Screw	-
13	M115279	1	Plug	(W/O Rear Wiper)
14	-	1	Part 17	USE WITH (5) 57M8602_Pins, (5) 57M8321_Seals
15	57M8415	1	Elec. Connector Housing	Roof Harness USE WITH (4) 57M7252_Pins, (4) 57M9215_Seals
15	57M7469	1	Electrical Connector Assy	-
16	57M8873	1	Elec. Connector Terminal	-

Windshield Wiper Motor Assembly, Front and Rear
