Heater and A/C Module, Automatic Temperature Control

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	CTL 800 mm, MF R83066
2	M114063	8	Screw	-
3	21M7466	4	Screw	M6 X 30
4	R537883	1	Grommet	SUB FOR R306576
5	14M7450	4	Flange Nut	M5
6	R537882	1	Plate	SUB FOR R313350
7	M84972	4	Nut	-
8	R44302	3	Tie Band	-
9	RE556940	1	Blower	SUB FOR RE310358 OR RE566280
10	RE176393	1	Sensor	(B222 Ambient Temperature Sensor)
11	R279386	2	Gasket	-
12	R292813	2	Air Duct	-
13	R269455	4	Stud	-
14	R537881	1	Air Duct	SUB FOR R271544
15	RE556938	1	Heat Exchanger	SUB FOR RE322948
16	R288946	1	Washer	-
17	RE187654	2	Sensor	(B220 Cab Temperature Sensor and B223 Outlet Air Temperature Sensor)
18	RE283957	1	Valve	-
19	RE556936	1	Sensor	(B221 Evaporator Temperature Sensor) SUB FOR RE288944
20	RE190340	1	Transducer	(B224 Refrigerant Pressure Sensor)
21	24M7100	1	Washer	6.600 X 22 X 2 mm
22	37M7352	9	Screw	-
23	R33259	1	O-Ring	-
24	R306856	1	Plate	-
25	T184924	2	Hose Clamp	-
26	R286833	1	Hose	Heater Return
27	RE261183	1	Line	Heater Outlet
28	R545242	1	Door	Actuated Door, Black
29	R292976	1	Plate	-
30	R113050	1	O-Ring	-
31	RE592839	1	Valve	(Y221 Water Valve Motor) SUB FOR RE310721 OR RE569729
32	57M7256	1	Elec. Connector Housing	USE WITH (2) 57M7495_Pins AND (2) 57M9214_Seals
32	57M9712	1	Elec. Connector Accessory	-
33	R261190	1	Door	Non Actuated Door, White
34	57M8958	1	Elec. Connector Housing	USE WITH (2) 57M7527_Pins AND (2) R78062_Seals
34	57M8129	1	Elec. Connector Terminal	-
35	T181522	1	Plate	-
36	FH312800	1	Lock Washer	-
37	R117721	2	Clamp	-
38	R557957	1	HVAC Equipment	-

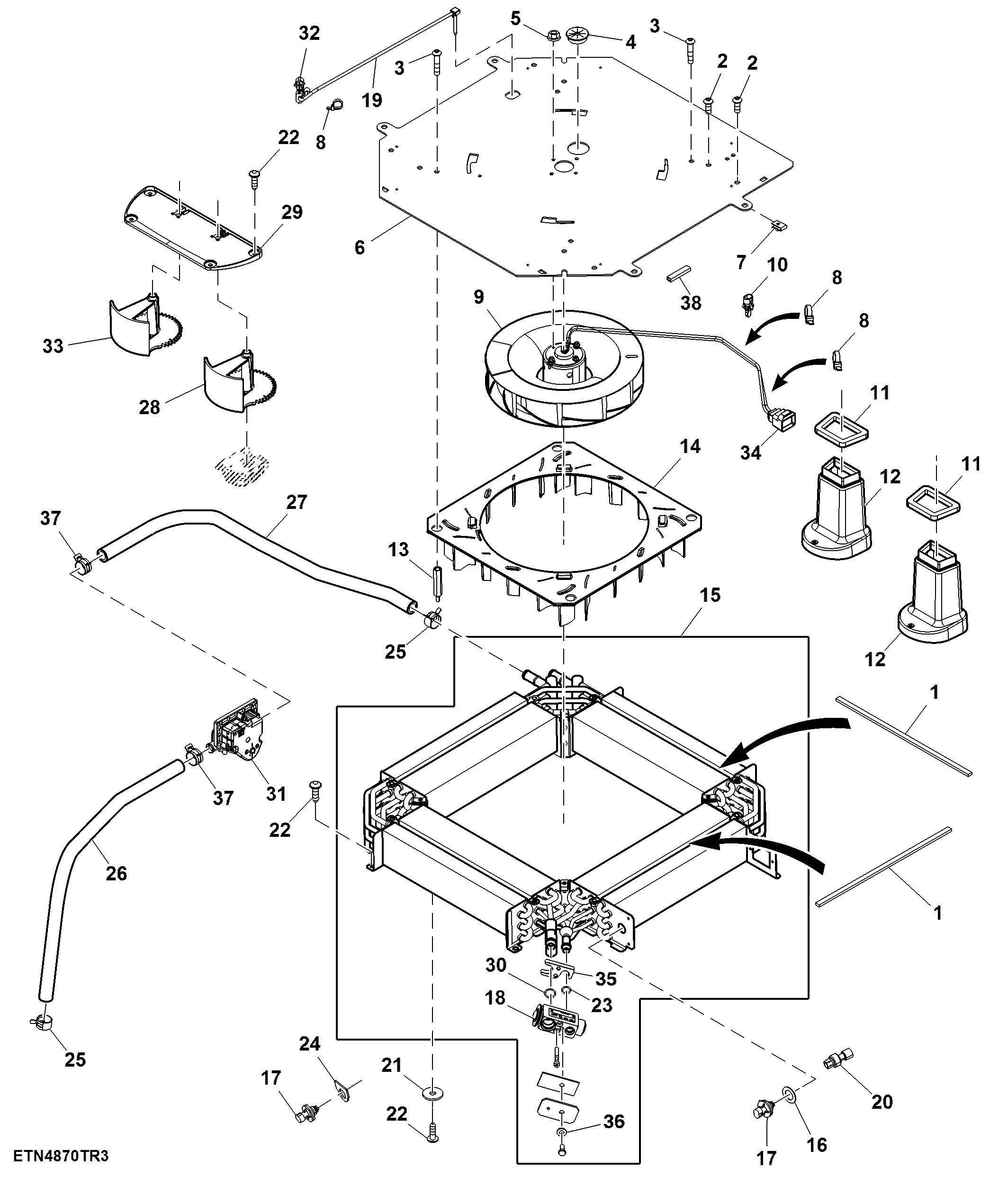

Heater and A/C Module, Automatic Temperature Control
