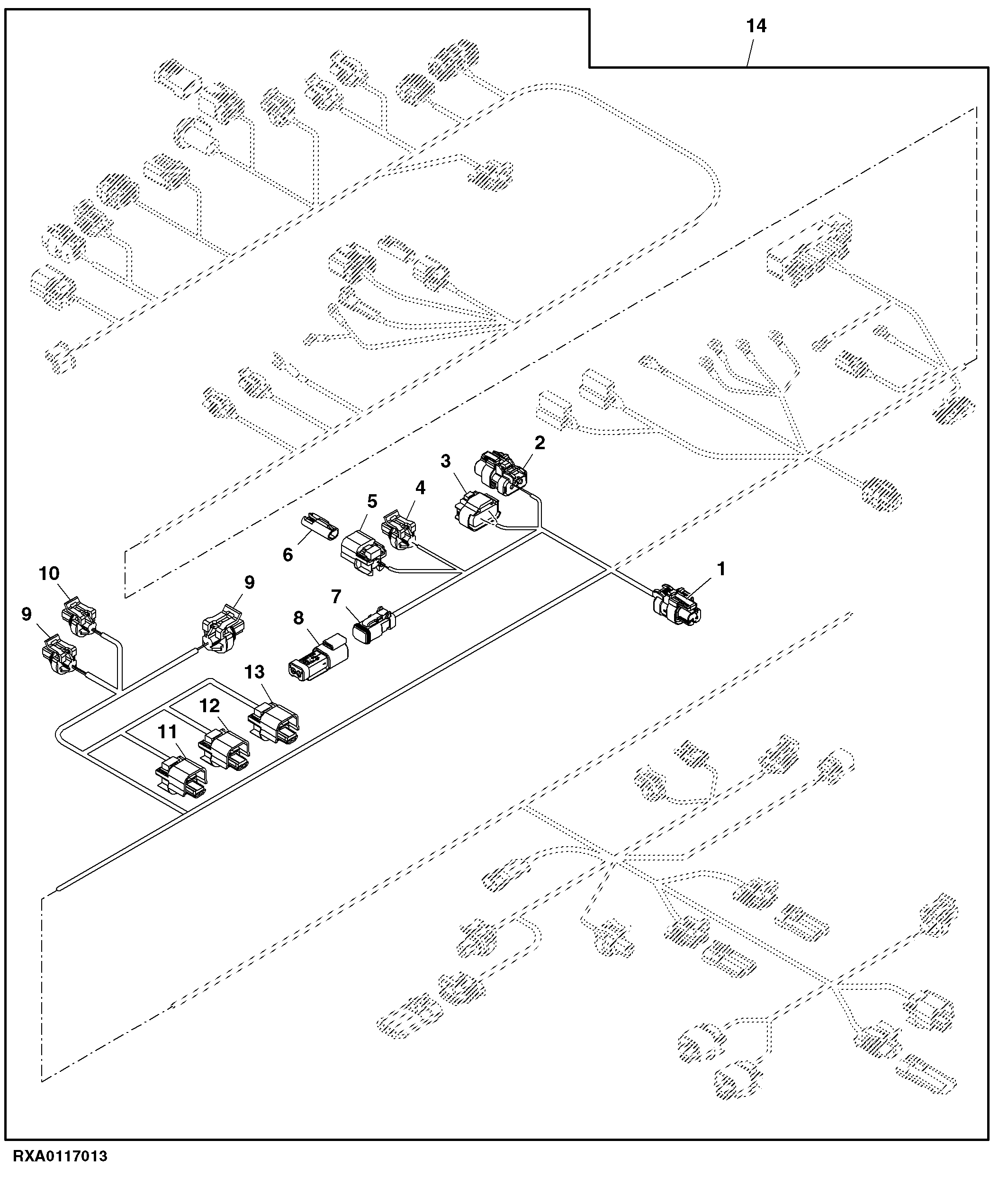

Chassis Wiring Harness , ILS™, IT4 Engine (3/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9772	1	Elec. Connector Housing	Fuel Level Sender (USE WITH (2) 57M8902_Pins)
2	57M9780	1	Elec. Connector Housing	After Treatment Delta Pressure (USE WITH (3) 57M9808_Pins)
3	57M8917	1	Elec. Connector Housing	After Treatment Temp Assembly (USE WITH (4) 57M9808_Pins)
4	57M8625	1	Elec. Connector Housing	Secondary Brake Pressure (USE WITH (3) 57M8560_Pins and (3) 57M8566_Seals)
4	57M8624	1	Elec.Connect Locking Device	-
4	57M8931	1	Electrical Connector Cap	-
5	57M8924	1	Elec. Connector Housing	Sec Brake Off Solenoid (USE WITH (3) 57M8560_Pins and (3) 57M8566_Seals)
5	57M8633	1	Elec. Connector Accessory	-
6	57M9222	1	Elec. Connector Housing	Dust Cap
6	57M8633	1	Elec. Connector Accessory	-
6	57M9112	1	Elec. Connector Cavity Plug	-
7	57M8639	1	Elec. Connector Housing	Secondary Brake Valve (USE WITH (2) 57M8165_Pins)
7	57M8022	1	Elec.Connect Locking Device	-
8	57M8023	1	Elec. Connector Housing	Dust Cap
8	57M7621	1	Elec.Connect Locking Device	-
9	57M8625	2	Elec. Connector Housing	Pump Press (USE WITH (3) 57M8560_Pins, (3) 57M8566_Seals)
9	57M8624	2	Elec.Connect Locking Device	-
10	57M8625	1	Elec. Connector Housing	Backup Pump Press (USE WITH (3) 57M8560_Pins, (3) 57M8566_Seals)
10	57M8624	1	Elec.Connect Locking Device	-
11	57M9210	1	Elec. Connector Housing	Steer RH (USE WITH (2) 57M8560_Pins and 57M8566_Seals)
11	57M8633	1	Elec. Connector Accessory	-
12	57M9210	1	Elec. Connector Housing	Steer LH (USE WITH (2) 57M8560_Pins and 57M8566_Seals)
12	57M8633	1	Elec. Connector Accessory	-
13	57M8924	1	Elec. Connector Housing	Steer Off (USE WITH (2) 57M8560_Pins and 57M8566_Seals)
13	57M8633	1	Elec. Connector Accessory	-
14	RE304410	1	Chassis Wiring Harness	-

Chassis Wiring Harness , ILS™, IT4 Engine (3/5)

Нет текстового описания
