Chassis Wiring Harness, ILS™, IT4 Engine (1/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R77478	1	Electrical Connector Assy	Ether Solenoid (USE WITH (2) 57M9200_Pins)
2	57M8924	1	Elec. Connector Housing	Fan Speed Sensor (USE WITH (2) 57M8560_Pins and (2) 57M8566_Seals)
2	57M8633	1	Elec. Connector Accessory	-
3	57M9817	1	Elec. Connector Housing	Left Wheel Angle Ext (USE WITH (4) 57M9809_Pins)
3	57M9839	1	Elec. Connector Accessory	-
4	57M7254	1	Elec. Connector Housing	Coolant Level (USE WITH (2) 57M7494_Pins and (2) 57M9215_Seals)
4	57M7289	1	Elec.Connect Locking Device	-
5	57M7254	1	Elec. Connector Housing	Coolant Loss (USE WITH (2) 57M7494_Pins and (2) 57M9215_Seals)
5	57M7289	1	Elec.Connect Locking Device	-
6	57M9800	1	Elec. Connector Housing	Engine Harness (USE WITH (9) 57M9808_Pins)
6	57M9839	1	Elec. Connector Accessory	-
7	RE538505	1	Elec. Connector Accessory	ECU J3 Connector (USE WITH (10) 57M9808_Pins and (9) 57M9806_Pins)
7	R528122	1	Elec. Connector Accessory	-
8	57M9222	1	Elec. Connector Housing	Dust Cap
8	57M8633	1	Elec. Connector Accessory	-
9	57M8924	1	Elec. Connector Housing	Countershaft Speed Sensor (USE WITH (2) 57M8560_Pins and (2) 57M8566_Seals)
9	57M8633	1	Elec. Connector Accessory	-
10	57M10297	1	Elec. Connector Housing	Hood Harness (USE WITH (2) 57M8543_Pins, (8) 57M8565_Pins and 57M8545_Pin)
11	57M7293	1	Elec. Connector Housing	A/C Clutch (USE WITH 57M7285_Pin, 57M9218_Seal)
11	57M7295	1	Elec.Connect Locking Device	-
12	57M8869	2	Elec. Connector Terminal	A/C Clutch Ground
13	57M8868	1	Elec. Connector Terminal	Starter Solenoid
13	T296620	1	Insulator	-
14	57M7254	1	Elec. Connector Housing	Fan Speed Up Valve (USE WITH (2) 57M7494_Pins, (2) 57M9215_Seals)
14	57M7289	1	Elec.Connect Locking Device	-
15	57M7254	1	Elec. Connector Housing	Fan Speed Down Valve (USE WITH (2) 57M7494_Pins, (2) 57M9215_Seals)
15	57M7289	1	Elec.Connect Locking Device	-
16	57M7255	1	Elec. Connector Housing	Left Side Cylinder Pos (USE WITH (3) 57M7494_Pins, (3) 57M9215_Seals)
16	57M7290	1	Elec. Connector Accessory	-
17	57M9800	1	Elec. Connector Housing	ILS™ Manifold Connector 2 (USE WITH (9) 57M9809_Pins)
18	57M9804	1	Elec. Connector Housing	ILS™ Manifold Connector 1 (USE WITH (12) 57M9813_Pins)
19	57M7803	1	Elec. Connector Housing	Front Hitch Jumper (USE WITH (9) 57M7494_Pins, R104846_Pin, (9) 57M9215_Seals, 57M7258_Seal)
19	57M8907	1	Elec.Connect Locking Device	-
19	L116274	1	Elec. Connector Accessory	-
20	57M10299	1	Elec. Connector Housing	Front Trailer Connector 1 (USE WITH (5) 57M8565_Pins, 57M8545_Pin and (2) 57M8543_Pins)
21	57M10330	1	Elec. Connector Terminal	Dust Cap
22	57M8625	1	Elec. Connector Housing	Front Brake Pressure (USE WITH (3) 57M8560_Pins and (3) 57M8566_Seals)
22	57M8624	1	Elec.Connect Locking Device	-
22	L116274	1	Elec. Connector Accessory	-
23	57M7255	1	Elec. Connector Housing	Right Side Cylinder Pos (USE WITH (3) 57M7494_Pins and (3) 57M9215_Seals)
23	57M7290	1	Elec. Connector Accessory	-
24	-	1	Part 42	Front Load Center (USE WITH (5) 57M8377_Pins, 57M7707_Pin, 57M8866_Pin, (5) 57M9218_Seals, 57M9219_Seal)
25	57M8866	1	Elec. Connector Terminal	ALT +12V
26	57M9789	1	Elec. Connector Housing	Power Module (USE WITH (5) 57M9813_Pins)
27	57M9406	1	Elec. Connector Accessory	Ground Stud Splice Pack (USE WITH 57M8901_Pin, 57M7297_Pin, 57M7491_Pin, 57M8569_Pin, (2) 57M9218_Seals)
27	57M8326	1	Electrical Connector Assy	-
27	57M8611	1	Electrical Connector Assy	Dust Cap
28	57M9786	1	Elec. Connector Housing	Front Console Harness (USE WITH (4) 57M9809_Pins, 57M9200_Pin, 57M7707_Pin, 57M9219_Seal)
29	57M8873	1	Elec. Connector Terminal	ALTERNATOR
30	57M8868	1	Elec. Connector Terminal	Start Relay
31	57M8901	4	Elec. Connector Terminal	Single Point Ground Stud
31	57M8865	4	Elec. Connector Terminal	Single Point Ground Stud
32	R77476	1	Electrical Connector Assy	Front Washer Pump (USE WITH (2) 57M9200_Pins)
33	R77476	1	Electrical Connector Assy	Rear Washer Pump (USE WITH (2) 57M9200_Pins)
34	RE304410	1	Chassis Wiring Harness	-

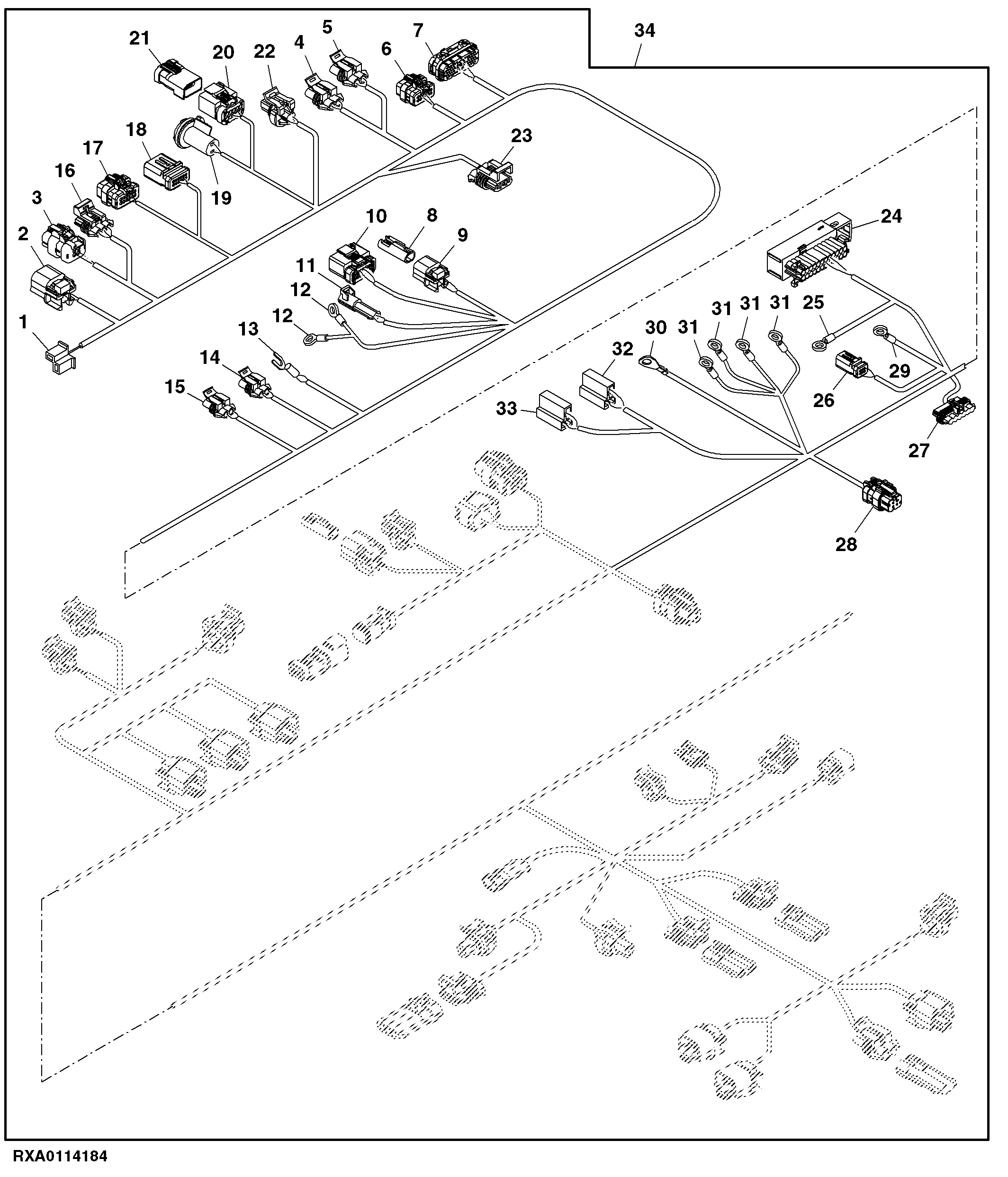

Chassis Wiring Harness, ILS™, IT4 Engine (1/5)
