Открытый узел

Radiator/ Aftercooler/ Condenser/ Fuel Cooler/ Hyd Oil Cooler

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R242907	1	Seal	-
2	R328614	1	Support	SUB FOR R243210
3	RE210733	1	Support	-
4	RE319045	1	Bracket	SUB FOR RE210933
5	R210736	1	Seal	-
6	R210738	1	Isolator	-
7	AT139776	2	Isolator	-
8	24M7180	2	Washer	13 X 37 X 3 mm
9	14M7275	2	Nut	M12
10	R230240	8	Washer	-
11	R230233	1	Bracket	RH
11	R230232	1	Bracket	LH
12	RE242256	1	Radiator	-
13	53M7003	2	Screw	M8 X 25
14	24H1122	2	Washer	3/8" X 7/8" X 0.083"
15	RE210864	1	Aftercooler	ORDER RE251687, RE230241, 19M8324 AND 24M7028
15	RE251687	1	Aftercooler	-
16	RE230241	1	Handlebar	-
17	AT13740	1	Drain Valve	-
18	RE242252	1	Oil Cooler	-
19	RE241176	1	Fuel Cooler	-
20	RE242255	1	Vapor Condenser	-
21	RE576835	1	Receiver-Dryer	SUB FOR RE291796 OR RE214440
22	14M7298	8	Flange Nut	M8
23	H144468	2	Clamp	-
24	R242454	1	Seal	-
25	RE210886	1	Support	-
26	R230237	1	Isolator	-
27	R230239	1	Seal	-
28	37M7083	6	Screw	M8 X 12
29	RE210877	1	Support	LH
29	RE210879	1	Support	RH
30	RE230665	2	Latch	-
31	RE230231	4	Latch	-
32	19M7897	2	Screw	M8 X 35
33	19M7932	4	Cap Screw	M8 X 16
34	19M8324	1	Cap Screw	M10 X 16
35	24M7028	1	Washer	10.500 X 20 X 2 mm
36	R238617	2	Bracket	-
37	21M7312	4	SCREW	M6 X 12
38	14M7303	4	Flange Nut	M6
39	RE190805	1	Diagnostic Coupling	-
40	51M7041	1	O-Ring	11.300 X 2.200 mm
41	R238619	2	Strap	-
42	R238618	2	Washer	-
43	R238930	4	Bolt	-
44	19M9225	4	Cap Screw	M8 X 150
45	14M7426	4	Lock Nut	M8
46	R230234	1	Isolator	-
47	M133730	2	Latch	-
48	RE242918	1	Refrigerant Hose	-
49	19M7799	4	Screw	M8 X 45
50	R183409	3	O-Ring	-
51	RE524730	10	Cap Screw	-

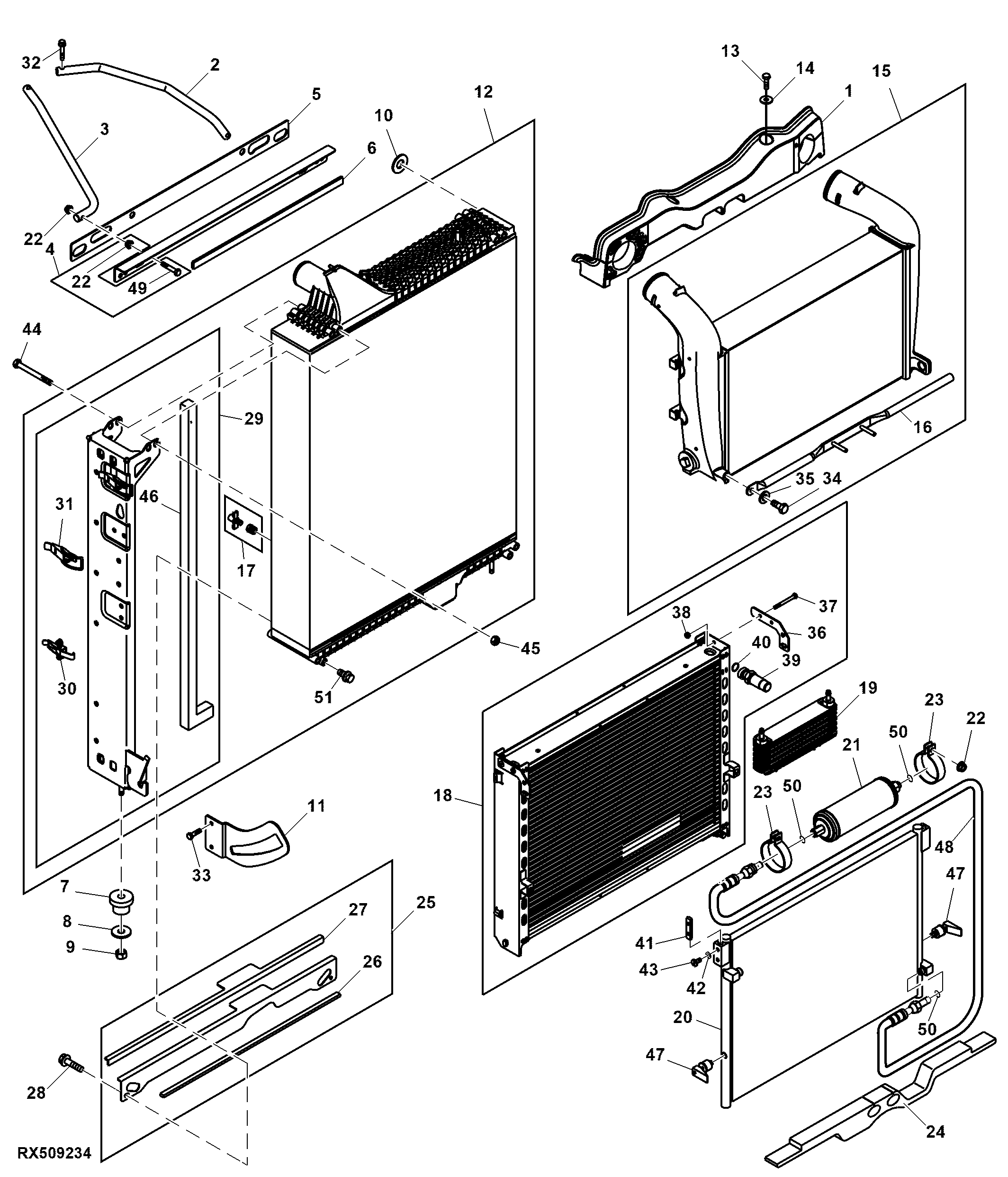

Radiator/ Aftercooler/ Condenser/ Fuel Cooler/ Hyd Oil Cooler

Нет текстового описания
