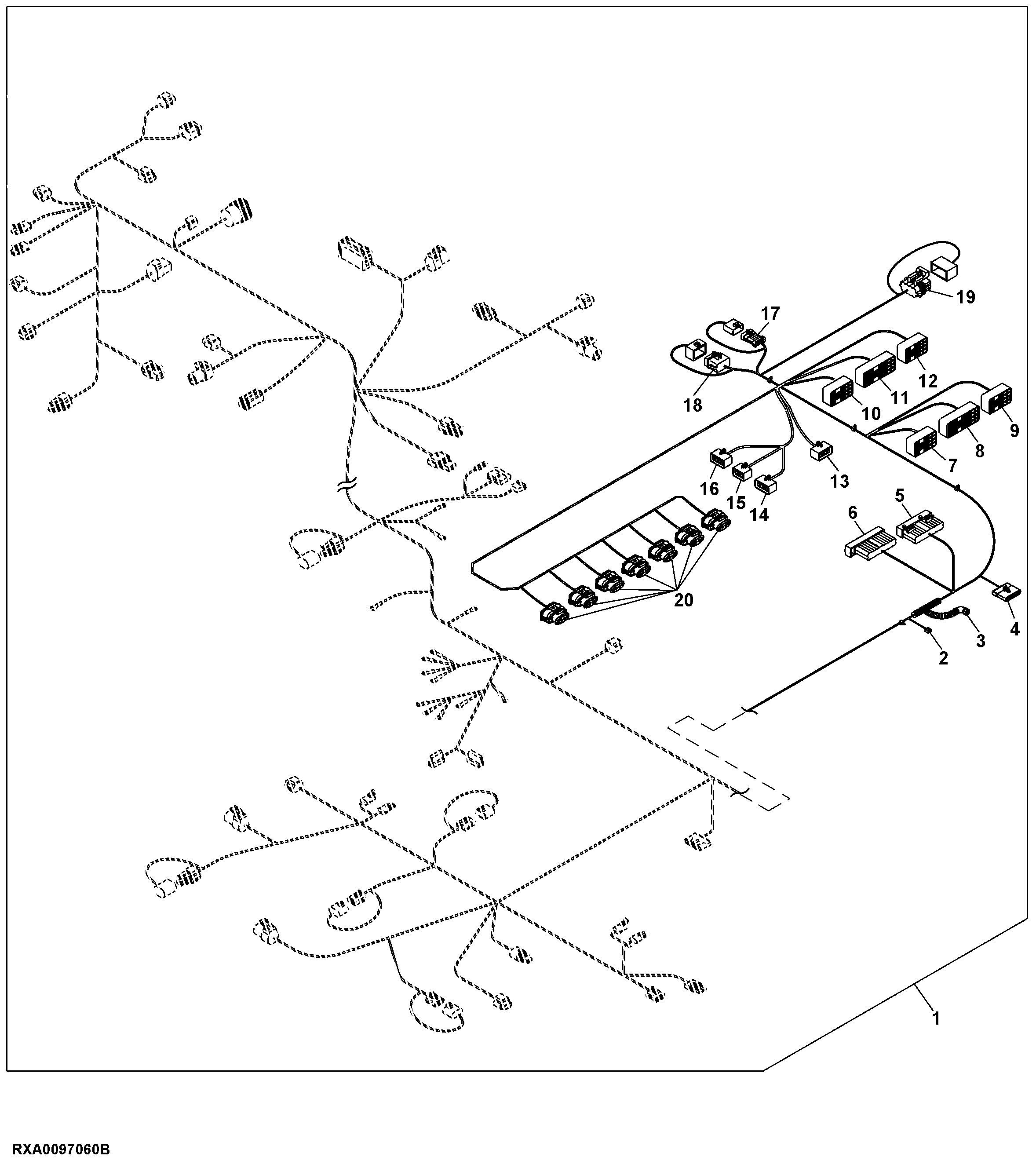

CHASSIS WIRING HARNESS CONNECTORS CONT. (3/3) (ILS)(NON-CERTIFIED)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE267868	1	Chassis Wiring Harness	-
2	57M7305	1	Elec. Connector Housing	Transmission Harness
2	57M9216	1	Elec. Connector Seal	Cavity A, B, C
2	57M7307	1	Electrical Connector Assy	-
2	57M7527	1	Elec. Connector Terminal	Cavity A, B, C
3	57M8795	1	Elec. Connector Housing	Cab Connection
3	57M8569	1	Elec. Connector Terminal	Cavity 2, 3, 4
3	57M7546	1	Elec. Connector Terminal	Cavity 5, 6, 7, 9, 11, 12, 14, 15, 17
3	57M8165	1	Elec. Connector Terminal	Cavity 10, 22, 25, 26, 28
3	N282070	1	Elec. Connector Terminal	Cavity 16, 19
3	57M9225	1	Elec. Connector Terminal	Cavity 18. 20, 23, 24, 27, 29
4	57M7297	1	Elec. Connector Terminal	Cavity B, C, D, E
4	57M9219	1	Elec. Connector Seal	Cavity B, C, D, E
4	57M9217	1	Elec. Connector Seal	Cavity A
4	57M7299	1	Elec. Connector Terminal	Cavity A
4	57M7308	1	Elec. Connector Accessory	-
4	57M7301	1	Elec. Connector Housing	Hitch Switch and Implement Ground
5	57M8070	1	Elec. Connector Housing	Transmission Harness
5	57M8943	1	Elec.Connect Locking Device	-
5	57M8076	1	Elec. Connector Terminal	-
5	57M10371	1	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 9, 11, 20, 24
5	57M7399	1	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 9, 11, 20, 24
5	57M8732	1	Elec. Connector Terminal	Cavity 6, 7, 8, 10, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 23
5	57M7400	1	Elec. Connector Seal	Cavity 6, 7, 8, 10, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 23
6	57M8943	1	Elec.Connect Locking Device	-
6	57M7400	1	Elec. Connector Seal	Cavity 7, 8, 9, 12, 13, 14, 15, 18, 19
6	57M8621	1	Elec. Connector Terminal	Cavity 7, 8, 9, 12, 13, 14, 15, 18, 19
6	57M8942	1	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 10, 22
6	57M8944	1	Elec. Connector Housing	Transmission Harness
6	57M7399	1	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 10, 22
7	57M10607	1	Elec. Connector Housing	Hydraulic Controller J3
7	57M8528	1	Electrical Connector Cap	-
7	57M10330	1	Elec. Connector Terminal	Cavity A1, B1, B3, C2, D3, D4, E2, E4, F1
7	57M10331	1	Elec. Connector Terminal	Cavity G1, G3, H1, H2
8	57M10331	1	Elec. Connector Terminal	Cavity L1, L2, M1, M2, M4
8	57M10330	1	Elec. Connector Terminal	Cavity A1, A3, A4, B1, B3, B4, C2, C3, C4, D3, D4, E3, E4, F4, G2, G3, G4, H1, H2, H3, H4, J1, J2, J3, J4, K1, K2, K4
8	57M8529	1	Electrical Connector Cap	-
8	57M10615	1	Elec. Connector Housing	Hydraulic Controller J2
9	57M10605	1	Elec. Connector Housing	Hydraulic Controller J1
9	57M8528	1	Electrical Connector Cap	-
9	57M10330	1	Elec. Connector Terminal	Cavity A1, A2, B1, B2, B3, C1, C2, C3, D1, D2, D4, E1, E2, F1
9	57M10331	1	Elec. Connector Terminal	Cavity H3, H4
10	57M10606	1	Elec. Connector Housing	Engine Control Unit J3 Controller
10	57M8528	1	Electrical Connector Cap	-
10	57M10330	1	Elec. Connector Terminal	Cavity B1, B2, C1, C2, C3, D2, D3, F1, F3, F4
10	57M10331	1	Elec. Connector Terminal	Cavity G1, G2, G3, G4, H3, H4
11	57M10331	1	Elec. Connector Terminal	Cavity L1, L2, L3, L4, M1, M2, M4
11	57M10330	1	Elec. Connector Terminal	Cavity A1, B1, B2, F2, G3, H2, J1, J4, K4
11	57M10615	1	Elec. Connector Housing	Engine Control Unit J2 Controller
11	57M8529	1	Electrical Connector Cap	-
12	57M10605	1	Elec. Connector Housing	Engine Control Unit J1 Controller
12	57M8528	1	Electrical Connector Cap	-
12	57M10330	1	Elec. Connector Terminal	Cavity A1, B1, C1, C3, D1, D2, D3, D4, E1, E2, F1
12	57M10331	1	Elec. Connector Terminal	Cavity G1, G2, H1, H2
13	57M7262	1	Elec. Connector Housing	Hitch Following
13	57M8907	1	Elec.Connect Locking Device	-
13	L116274	1	Elec. Connector Accessory	-
13	57M7494	1	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H, J, K
13	57M9215	1	Elec. Connector Seal	Cavity A, B, C, D, E, F, G, H, J, K
14	57M7494	1	Elec. Connector Terminal	Cavity A, B, H, J, K
14	57M7258	1	Elec. Connector Seal	Cavity C, D, G
14	R104846	1	Elec. Connector Terminal	Cavity C, D, G
14	57M9215	1	Elec. Connector Seal	Cavity A, B, H, J, K
14	57M8907	1	Elec.Connect Locking Device	-
14	57M7262	1	Elec. Connector Housing	Selective Control Valves 2 and 3
15	57M7261	1	Elec. Connector Housing	Hitch and Selective Control Valve 1
15	57M7296	1	Elec. Connector Accessory	-
15	57M7494	1	Elec. Connector Terminal	Cavity A, B, C, D, E, G, H
15	57M9215	1	Elec. Connector Seal	Cavity A, B, C, D, E, G, H
15	R104846	1	Elec. Connector Terminal	Cavity F
15	57M7258	1	Elec. Connector Seal	Cavity F
16	57M8907	1	Elec.Connect Locking Device	-
16	57M7258	1	Elec. Connector Seal	Cavity J
16	R104846	1	Elec. Connector Terminal	Cavity J
16	57M7494	1	Elec. Connector Terminal	Cavity A, B, C, D, G, H, K
16	57M7803	1	Elec. Connector Housing	SELECTIVE CONTROL VALVES 4 & 5
16	57M9215	1	Elec. Connector Seal	Cavity A, B, C, D, G, H, K
17	57M7284	1	Elec. Connector Housing	HYS Harness
17	57M7290	1	Elec. Connector Accessory	-
17	R104846	1	Elec. Connector Terminal	Cavity A, B, C
17	57M7258	1	Elec. Connector Seal	Cavity A, B, C
17	57M7494	1	Elec. Connector Terminal	Cavity E, F, G, H
17	57M9215	1	Elec. Connector Seal	Cavity E, F, G, H
18	R104846	1	Elec. Connector Terminal	Cavity A, B, C, D
18	57M7258	1	Elec. Connector Seal	Cavity A, B, C, D
18	57M7469	1	Electrical Connector Assy	-
18	57M8416	1	Elec. Connector Housing	AutoTrac™ Harness
19	57M7261	1	Elec. Connector Housing	HYS Front Hitch
19	57M7296	1	Elec. Connector Accessory	-
19	57M7494	1	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H
19	57M9215	1	Elec. Connector Seal	Cavity A, B, C, D, E, F, G, H
20	57M9498	7	Elec. Connector Housing	SCV 1, 2, 3, 4 and 5 / AUX Valve / Hitch Valve
20	57M9500	7	Elec. Connector Accessory	-
20	57M9499	7	Elec. Connector Accessory	-
20	57M8621	1	Elec. Connector Terminal	Cavity 1, 2, 3, 4
20	57M7400	1	Elec. Connector Seal	Cavity 1, 2, 3, 4

CHASSIS WIRING HARNESS CONNECTORS CONT. (3/3) (ILS)(NON-CERTIFIED)
