External Mirrors, Electrically Adjustable RH & LH Conversion, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE323406	1	Mirror Kit	Whole Goods
2	R291216	1	Bracket	-
3	19M7800	3	Screw	M8 X 50
4	19M7502	2	Cap Screw	M5 X 25
5	24M7138	2	Washer	5.300 X 15 X 1 mm
6	14M7396	5	Lock Nut	M8
7	19M7867	2	Screw	M8 X 25
8	T74410	2	Clamp	-
9	RE258807	3	Tie Band	-
10	RE294148	1	Cab Wiring Harness	-
11	H145221	1	Grommet	-
12	RE293968	1	Support	-
13	RE320917	1	Rear View Mirror	-
14	19M9356	2	Screw	M8 X 30
15	R210137	2	Washer	-
16	RE236245	1	Switch	-
17	R271566	1	Plug	-
18	M115279	1	Plug	-
19	24M7100	4	Washer	6.600 X 22 X 2 mm
20	37M7351	4	Screw	-
21	RE307735	1	Roof Wiring Harness	-
22	RE321001	1	Rear View Mirror	-
23	57M7254	1	Elec. Connector Housing	M103, Automatic Temperature Control Circulation Blower Motor Cavity A, B
23	57M7289	1	Elec.Connect Locking Device	-
23	RWA11083	1	Repair Wire Assembly	-
24	57M7896	1	Electrical Connector Assy	S306, Mirror heater Switch Cavity U, Y, Z
24	RWA10602	1	Repair Wire Assembly	-
25	57M9078	1	Elec. Connector Housing	S308, Mirror Extend Switch
25	RWA11110	1	Repair Wire Assembly	-
26	57M9078	1	Elec. Connector Housing	S307, Mirror Adjustment Switch
26	RWA11110	1	Repair Wire Assembly	-

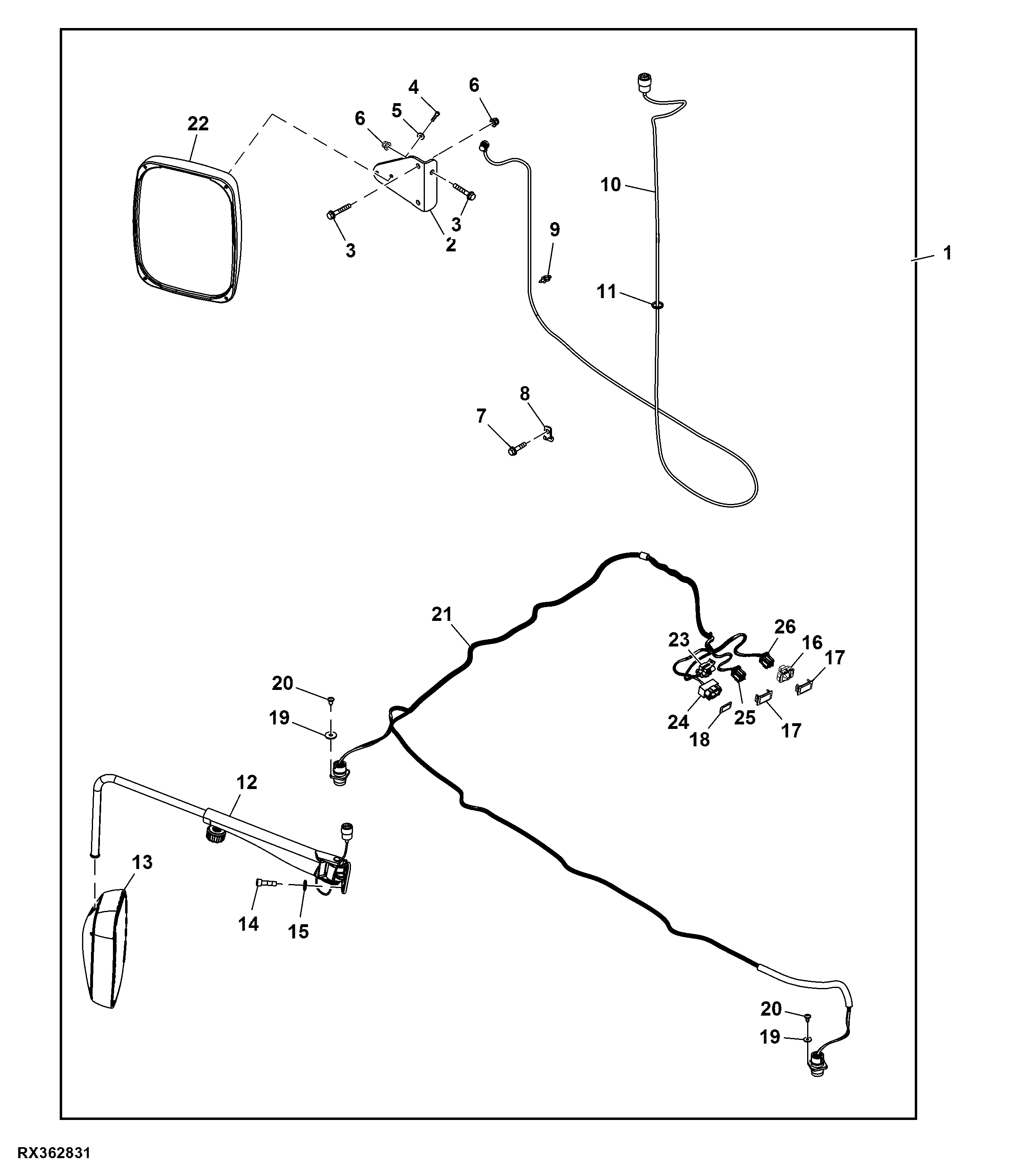

External Mirrors, Electrically Adjustable RH & LH Conversion, Attachment
