Battery Cables, W/O Battery Disconnect, e23™, T3/ FT4 Engines

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T75197	2	Clamp	-
2	19M7910	2	Screw	M16 X 55
3	RE337820	1	Battery Cable	-
4	R135871	1	Elec. Connector Terminal	-
5	R96066	1	Cover	-
6	14M7299	1	Flange Nut	M12
7	RE304437	1	Battery Cable	Cab Controller INCLUDES 57M8901
8	19M7784	2	Screw	M10 X 20
9	M84972	2	Nut	-
10	19M7866	14	Screw	M8 X 20
11	RE331826	1	Bracket	-
12	T102934	2	Clamp	-
13	T74416	3	Clamp	-
14	14M7296	2	Flange Nut	M10
15	RE285712	1	Nut	-
16	RE572542	1	Bracket	-
17	14M7298	6	Flange Nut	M8
18	RE574140	1	Battery Cable	Negative
19	19M7796	2	Screw	M6 X 30
20	RE591552	1	Battery Cable	Cab Power INCLUDES (2) RE258807 AND 57M12123
21	RE258807	6	Tie Band	-
22	RE586527	1	Battery Cable	Cab Ground
23	RE576371	1	Battery Cable	Roof Power INCLUDES (4) 57M9229 AND 57M11168
24	57M9229	4	Clip	-
25	RE576372	1	Battery Cable	Positive, Back Up Pump INCLUDES (4) RE258807
26	R50454	2	Clamp	-
27	RE589551	1	Battery Cable	Positive
28	RE588665	1	Battery Cable	Alternator
29	14M7400	1	Lock Nut	M10
30	57M11168	1	Elec. Connector Accessory	-
31	57M12125	4	Clamp	-
32	57M12123	6	Clamp	-
33	R556762	1	Clamp	-
34	28H3419	1	Spacer	0.364" X 0.540" X 1-3/4"
35	24H1122	2	Washer	3/8" X 7/8" X 0.083"
36	19M7802	1	Screw	M8 X 65
37	24M7055	1	Washer	8.400 X 16 X 1.600 mm
38	19M7867	2	Screw	M8 X 25
39	57M12126	2	Clamp	-
40	57M8901	1	Elec. Connector Terminal	-

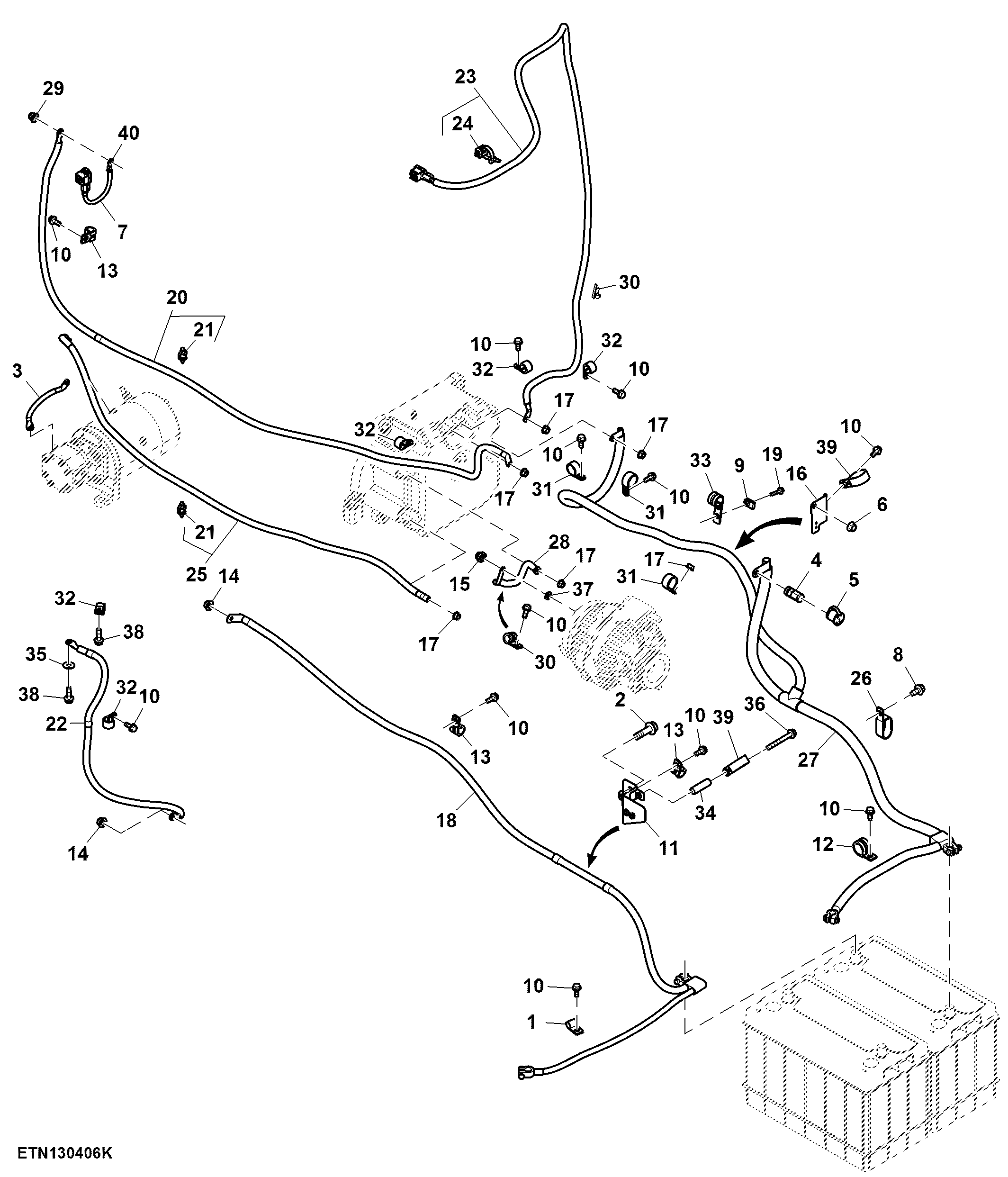

Battery Cables, W/O Battery Disconnect, e23™, T3/ FT4 Engines
