Battery Cables, W/ Battery Disconnect, IVT™, T2 Engines

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7296	4	Flange Nut	M10
2	19M7784	2	Screw	M10 X 20
3	19M7866	14	Screw	M8 X 20
4	19M7910	2	Screw	M16 X 55
5	M84972	2	Nut	-
6	R135871	1	Elec. Connector Terminal	-
7	R96066	1	Cover	Battery Remote Terminal
8	RE285712	1	Nut	-
9	RE589552	1	Battery Cable	Positive
10	RE304437	1	Battery Cable	Cab Controller INCLUDES 57M8901
11	RE331826	1	Bracket	-
12	RE337820	1	Battery Cable	Negative, Back Up Pump
13	T102934	2	Clamp	-
14	T74416	2	Clamp	-
15	T75197	2	Clamp	-
16	AH90990	1	Clip	-
17	14M7298	6	Flange Nut	M8
18	RE572542	1	Bracket	-
19	14M7400	1	Lock Nut	M10
20	24M7055	1	Washer	8.400 X 16 X 1.600 mm
21	RE574141	1	Battery Cable	-
22	RE574142	1	Battery Cable	-
23	57M8901	1	Elec. Connector Terminal	-
24	19M7796	2	Screw	M6 X 30
25	19M7813	1	Screw	M12 X 45
26	H140466	1	Bushing	-
27	RE586527	1	Battery Cable	Cab Ground
28	RE576372	1	Battery Cable	Positive, Back Up Pump INCLUDES (4) RE258807
29	RE576371	1	Battery Cable	Roof Power INCLUDES (4) 57M9229 AND 57M11168
30	57M9229	4	Clip	-
31	R50454	2	Clamp	-
32	RE588665	1	Battery Cable	Alternator
33	57M11168	1	Elec. Connector Accessory	-
34	57M12123	6	Clamp	-
35	57M12125	6	Clamp	-
36	R556762	1	Clamp	-
37	RE591552	1	Battery Cable	Cab Power INCLUDES (2) RE258807 AND 57M12123
38	RE258807	6	Tie Band	-
39	24H1122	2	Washer	3/8" X 7/8" X 0.083"
40	19M7867	2	Screw	M8 X 25
41	28H3419	1	Spacer	0.364" X 0.540" X 1-3/4"
42	19M7802	1	Screw	M8 X 65

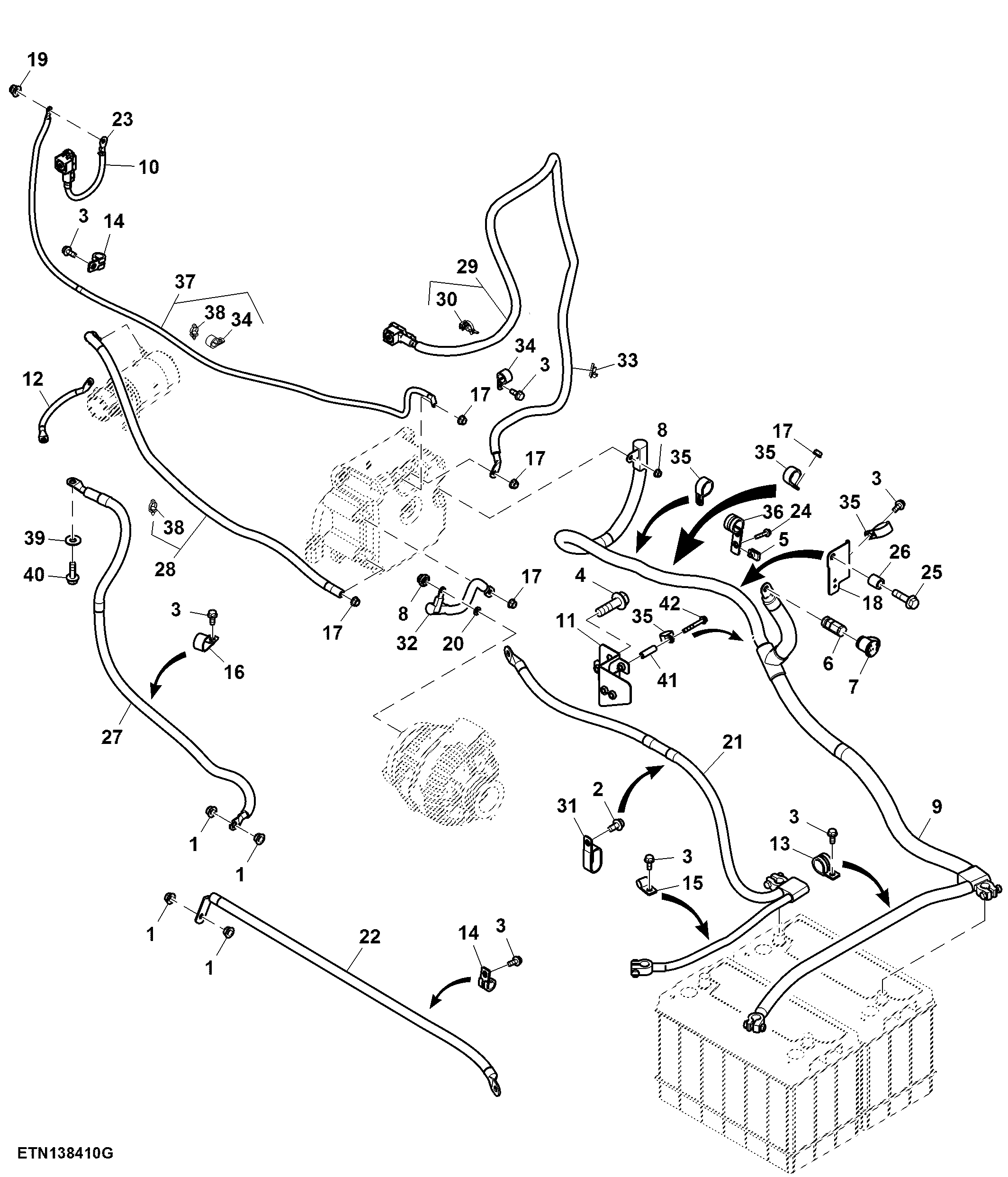

Battery Cables, W/ Battery Disconnect, IVT™, T2 Engines

Нет текстового описания
