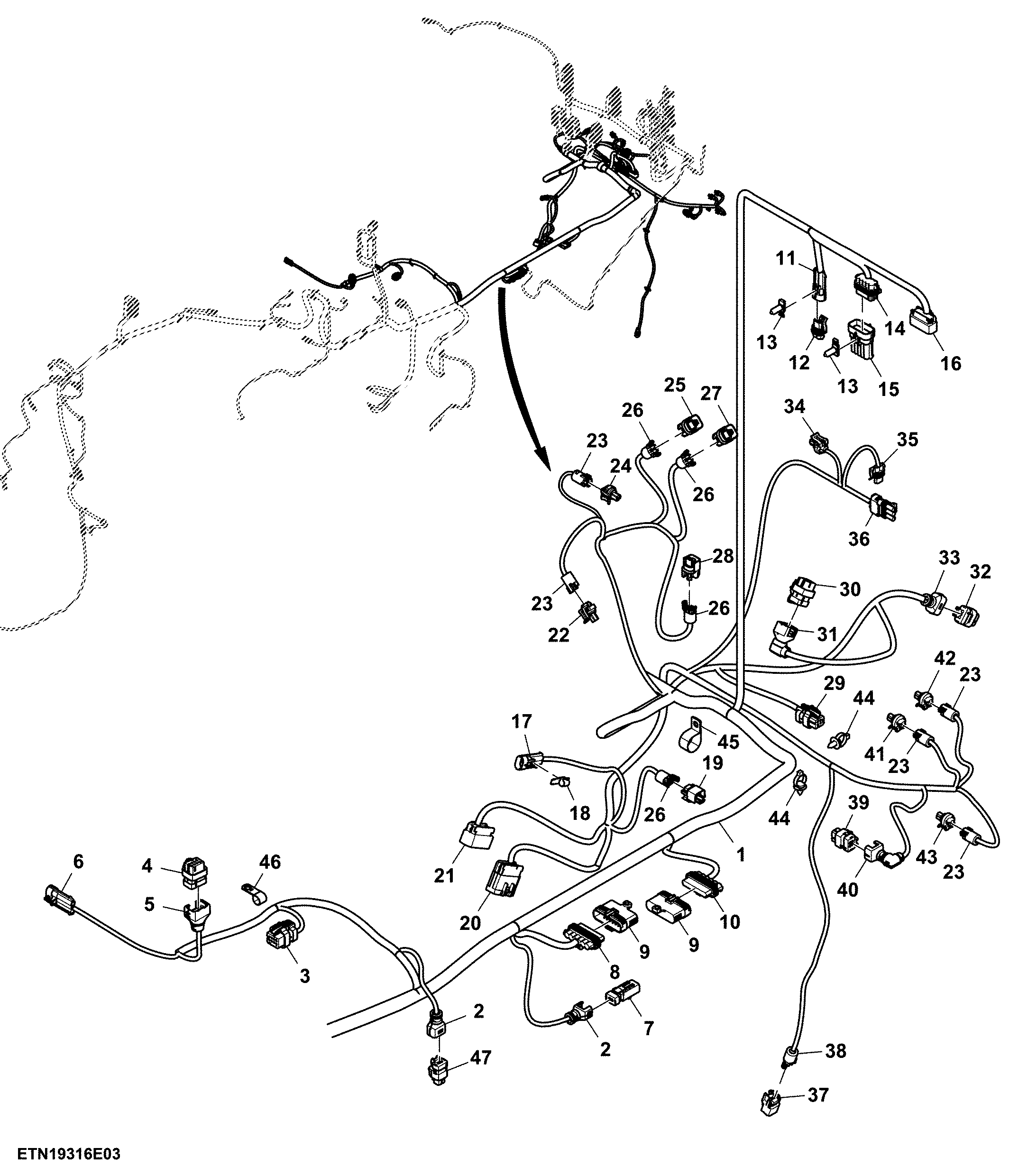

Wiring Harness, Chassis, T2 Engine (3/4) (914101 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE586979	1	Chassis Wiring Harness	SUB FOR RE581465 OR RE579229 OR RE576307
2	57M9837	2	Elec. Connector Accessory	-
3	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
3	57M9792	1	Elec. Connector Housing	X030A, Suspension Interconnect
4	57M9792	1	Elec. Connector Housing	B249, Brake Pedal Sensor/SW
4	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 5, 7, 8
5	57M9842	1	Elec. Connector Accessory	-
6	57M7257	1	Elec. Connector Housing	X061A, R2 Clearance Light
6	57M7290	1	Elec. Connector Accessory	-
6	RWA11082	1	Repair Wire Assembly	-
7	57M9776	1	Elec. Connector Housing	X923A, Fuel Neck Ground
7	RWA11025	1	Repair Wire Assembly	Cavity 1
8	57M9406	1	Elec. Connector Accessory	SPK02, Splice Pack 2
8	RWA11089	1	Repair Wire Assembly	-
8	57M10432	1	Elec.Connect Locking Device	-
8	57M8326	1	Electrical Connector Assy	-
9	57M8611	2	Electrical Connector Assy	-
10	57M9406	1	Elec. Connector Accessory	SPK01, Splice Pack 1
10	57M8326	1	Electrical Connector Assy	-
10	57M10432	1	Elec.Connect Locking Device	-
10	RWA11089	1	Repair Wire Assembly	-
11	57M9712	1	Elec. Connector Accessory	-
11	RWA11082	1	Repair Wire Assembly	-
11	57M7256	1	Elec. Connector Housing	X014A, Back Up Alarm
12	57M7254	1	Elec. Connector Housing	-
13	57M8910	2	Clip	-
14	57M7262	1	Elec. Connector Housing	X321B, Rear Option Connector (Hitch Following)
14	CB01489384	1	Elec. Connector Accessory	-
14	RWA11083	1	Repair Wire Assembly	-
15	57M9213	1	Elec. Connector Housing	-
16	57M8156	1	Elec. Connector Housing	X330B, Transmission Interconnect
16	57M11996	1	Elec. Connector Accessory	-
16	RWA11097	1	Repair Wire Assembly	Cavity B, C, D, E, F, G, K, L, M, N, P, R
16	RWA11102	1	Repair Wire Assembly	Cavity A
17	57M7256	1	Elec. Connector Housing	S550, COR Oil Level Switch
17	RWA11082	1	Repair Wire Assembly	-
18	57M11794	1	Elec. Connector Accessory	-
19	57M8924	1	Elec. Connector Housing	B694, Hydraulic Oil Temperature Sensor
19	57M11380	1	Elec. Connector Accessory	-
19	RWA11099	1	Repair Wire Assembly	-
20	57M9522	1	Elec. Connector Housing	X018A, Predominance
20	57M10627	1	Elec. Connector Accessory	-
20	RWA11098	1	Repair Wire Assembly	Cavity B, C, D, E, F, G, H, J, K, L, M
20	RWA11103	1	Repair Wire Assembly	Cavity A
21	RWA10989	1	Repair Wire Assembly	Cavity B, C, D, E, F, J, K, L, M, N
21	RWA11102	1	Repair Wire Assembly	Cavity A, G, H
21	57M8920	1	Elec. Connector Housing	X022A, Mid-Frame Interconnect
21	57M10627	2	Elec. Connector Accessory	-
22	RWA11097	1	Repair Wire Assembly	-
22	57M8625	1	Elec. Connector Housing	B228, Left Brake Pressure
23	57M11405	5	Elec. Connector Accessory	-
24	57M8625	1	Elec. Connector Housing	B229, Right Brake Pressure
24	RWA11097	1	Repair Wire Assembly	-
25	57M8924	1	Elec. Connector Housing	Y718, Right Brake ON/OFF
25	RWA11097	1	Repair Wire Assembly	-
26	57M9556	3	Elec. Connector Accessory	-
27	57M8924	1	Elec. Connector Housing	Y717, Left Brake ON/OFF
27	RWA11097	1	Repair Wire Assembly	-
28	57M8924	1	Elec. Connector Housing	Y716, Brake Pressure
28	RWA11097	1	Repair Wire Assembly	-
29	57M9817	1	Elec. Connector Housing	B208, Right Steering Cross Shaft Speed Sensor
29	RWA11029	1	Repair Wire Assembly	-
30	57M9786	1	Elec. Connector Housing	B698, Rockshaft Position
30	RWA11027	1	Repair Wire Assembly	-
31	57M10229	1	Elec. Connector Accessory	-
32	57M9780	1	Elec. Connector Housing	X721A, Draft Sensor
32	RWA11029	1	Repair Wire Assembly	-
33	57M9838	1	Elec. Connector Accessory	-
34	RWA11097	1	Repair Wire Assembly	-
34	57M8625	1	Elec. Connector Housing	B710, Track Suspension Pressure Sensor
34	57M8624	1	Elec.Connect Locking Device	-
35	57M7254	1	Elec. Connector Housing	Y684, Suspension Bleed Valve
35	RWA11083	1	Repair Wire Assembly	-
35	57M9712	1	Elec. Connector Accessory	-
36	RE12364	1	Electrical Connector Assy	M302, Suspension Pressure Motor
36	RWA11092	1	Repair Wire Assembly	-
37	57M8924	1	Elec. Connector Housing	Y500, Rear PTO Solenoid
37	57M11380	1	Elec. Connector Accessory	-
37	57M8633	1	Elec. Connector Accessory	-
37	RWA11097	1	Repair Wire Assembly	-
38	57M9222	1	Elec. Connector Housing	-
39	RWA11029	1	Repair Wire Assembly	-
39	57M9817	1	Elec. Connector Housing	B201, Left Steering Cross Shaft Speed Sensor
40	57M9848	1	Elec. Connector Accessory	-
41	57M8625	1	Elec. Connector Housing	B261, Main Hydraulic Pump Pressure Sensor 1
41	RWA11097	1	Repair Wire Assembly	-
42	57M8625	1	Elec. Connector Housing	B263, Backup Hydraulic Pump Pressure Sensor
42	RWA11097	1	Repair Wire Assembly	-
43	57M8625	1	Elec. Connector Housing	B262, Main Hydraulic Pump Pressure Sensor 2
43	RWA11097	1	Repair Wire Assembly	-
44	RE258807	12	Tie Band	-
45	57M9858	1	Clamp	-
46	AH78237	1	Clamp	-
47	57M9772	1	Elec. Connector Housing	B303, Fuel Level Tracks Lower
47	RWA11027	1	Repair Wire Assembly	-

Wiring Harness, Chassis, T2 Engine (3/4) (914101 - )
