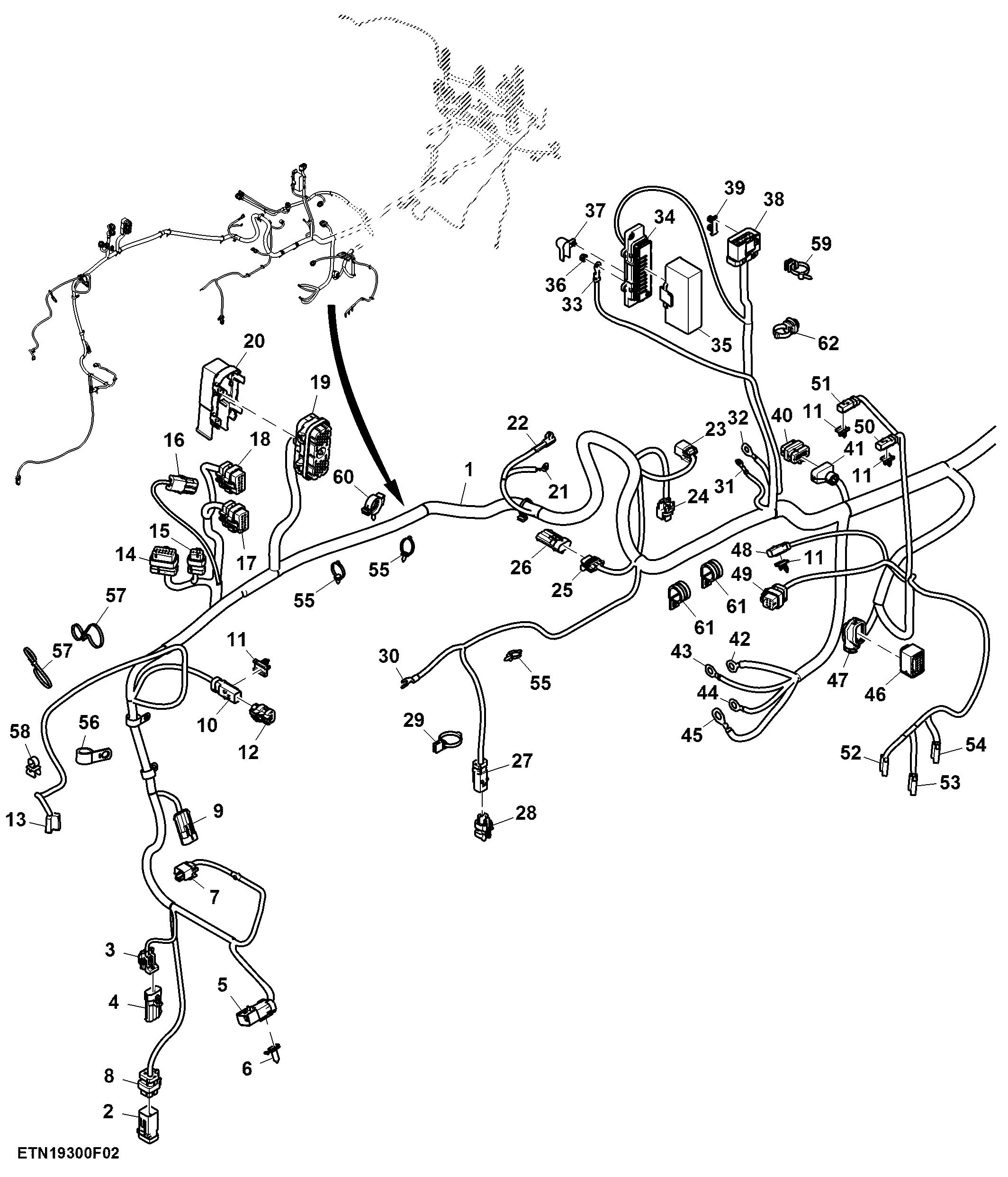

Wiring Harness, Chassis, FT4 Engine (2/4) (914101 - 915999)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE581464	1	Wiring Harness	SUB FOR RE579228 OR RE576306
2	57M11336	1	Elec. Connector Accessory	-
3	57M7290	1	Elec. Connector Accessory	-
3	57M7255	1	Elec. Connector Housing	X201A
3	RWA11083	3	Repair Wire Assembly	-
4	57M7257	1	Elec. Connector Housing	-
5	57M10302	1	Elec. Connector Housing	X570A
5	RWA11136	6	Repair Wire Assembly	-
6	57M12228	1	Elec. Connector Accessory	-
7	57M8924	1	Elec. Connector Housing	B5303_MFWD
7	RWA11099	2	Repair Wire Assembly	-
7	57M8633	1	Elec. Connector Accessory	-
8	57M9786	1	Elec. Connector Housing	X028A
8	RWA11029	3	Repair Wire Assembly	Cavity 3, 4, 1
9	57M7257	1	Elec. Connector Housing	X062A
9	RWA11082	3	Repair Wire Assembly	-
9	57M7290	1	Elec. Connector Accessory	-
10	57M9776	1	Elec. Connector Housing	A912
11	57M9940	4	Elec. Connector Accessory	-
12	57M11134	1	Elec. Connector Housing	-
13	57M8812	1	Elec. Connector Housing	Y101
13	RWA11076	2	Repair Wire Assembly	-
14	57M9801	1	Elec. Connector Housing	X5037
14	RWA11027	9	Repair Wire Assembly	Cavity 2, 6, 5, 9, 8, 10, 12, 11, 3
15	57M9780	1	Elec. Connector Housing	X5071
15	RWA11029	3	Repair Wire Assembly	-
16	57M9728	1	Elec. Connector Housing	X5046
16	RWA11026	2	Repair Wire Assembly	-
17	57M9802	1	Elec. Connector Housing	X5038
17	RWA11027	8	Repair Wire Assembly	Cavity 1, 2, 3, 4, 7, 9, 10, 11
17	RWA11026	3	Repair Wire Assembly	Cavity 5, 6, 12
18	57M9800	1	Elec. Connector Housing	X5039
18	RWA11027	11	Repair Wire Assembly	Cavity 1, 2, 3, 4 ,5 6, 7, 8, 9, 11, 12
19	RE538505	1	Elec. Connector Accessory	A5505-J3
19	RWA11026	22	Repair Wire Assembly	Cavity 1, 2, 7, 11, 12, 13, 14, 16, 17, 23, 24, 27, 29, 30, 32, 36, 43, 44, 45, 50, 52, 53
20	R528122	1	Elec. Connector Accessory	-
21	57M7175	1	Elec. Connector Terminal	S501_1
22	57M7293	1	Elec. Connector Housing	S501-A
22	57M7295	1	Elec.Connect Locking Device	-
22	RWA11088	1	Repair Wire Assembly	-
23	57M8924	1	Elec. Connector Housing	Y5014
23	57M8633	1	Elec. Connector Accessory	-
23	RWA10703	2	Repair Wire Assembly	-
24	57M8924	1	Elec. Connector Housing	Y5015
24	57M8633	1	Elec. Connector Accessory	-
24	RWA10703	2	Repair Wire Assembly	-
25	RWA11083	3	Repair Wire Assembly	-
25	57M7255	1	Elec. Connector Housing	X289
25	57M7290	2	Elec. Connector Accessory	-
26	57M7257	1	Elec. Connector Housing	-
27	57M9779	1	Elec. Connector Housing	E502
28	57M9775	1	Elec. Connector Housing	-
29	57M12042	1	Elec. Connector Accessory	-
30	57M8937	1	Elec. Connector Terminal	M301_FT4_S3
31	57M8875	1	Elec. Connector Terminal	G301D+
32	57M8897	1	Elec. Connector Terminal	G301B+
33	57M12905	1	Elec. Connector Terminal	FEXX-1
34	RE554429	1	Fuse Holder	FEXX
34	RWA11045	6	Repair Wire Assembly	Cavity B10, B3, B4, B5, B9, B7
35	RE554428	1	Cover	-
36	R536493	1	Nut	-
37	RE554430	1	Cover	-
38	57M10297	1	Elec. Connector Housing	X180B
38	RWA11137	13	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 12, 13, 14
39	57M11374	1	Elec. Connector Accessory	-
40	57M9800	1	Elec. Connector Housing	X981B_ACS
40	RWA10614	12	Repair Wire Assembly	-
41	57M9844	1	Elec. Connector Accessory	-
42	57M7567	1	Elec. Connector Terminal	XGND2_46A
43	57M7567	1	Elec. Connector Terminal	XGND2_46B
44	57M7567	1	Elec. Connector Terminal	XGND2_46C
45	57M7567	1	Elec. Connector Terminal	XGND2_46D
46	57M10958	1	Elec. Connector Housing	B5501
46	RWA10718	10	Repair Wire Assembly	Cavity 6, 5, 9, 8, 10, 12, 11, 3, 4, 2
47	57M11439	1	Elec. Connector Accessory	-
48	57M9731	1	Elec. Connector Housing	E5601
48	RWA11023	2	Repair Wire Assembly	-
49	57M9788	1	Elec. Connector Housing	A5507
49	RWA11027	5	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
50	57M9732	1	Elec. Connector Housing	E5603
50	RWA11023	2	Repair Wire Assembly	-
51	57M9730	1	Elec. Connector Housing	E5602
51	RWA11023	2	Repair Wire Assembly	-
52	57M7144	1	Elec. Connector Housing	M02
52	RWA11076	2	Repair Wire Assembly	-
53	57M7144	1	Elec. Connector Housing	M01
53	RWA11076	2	Repair Wire Assembly	-
54	57M7144	1	Elec. Connector Housing	M03
54	RWA11076	2	Repair Wire Assembly	-
55	RE258807	19	Tie Band	-
56	57M12137	2	Clamp	SUB FOR 57M10837
57	57M10421	2	Elec. Connector Accessory	-
58	AH225363	1	Clip	-
59	57M9229	2	Clip	-
60	57M9190	1	Clip	-
61	57M9859	2	Clamp	-
62	57M11231	1	Clip Kit	-

Wiring Harness, Chassis, FT4 Engine (2/4) (914101 - 915999)
