Wiring Harness, Chassis, FT4 Engine (2/4) ( - 914100)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RWA11029	3	Repair Wire Assembly	Cavity 3, 4, 1
1	57M9786	1	Elec. Connector Housing	X028A
2	RWA11083	3	Repair Wire Assembly	Cavity C, A, B
2	57M7255	1	Elec. Connector Housing	X201A
2	57M7290	1	Elec. Connector Accessory	-
3	57M7257	2	Elec. Connector Housing	-
4	57M10302	1	Elec. Connector Housing	X570A
4	RWA11136	6	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
5	57M8924	1	Elec. Connector Housing	-
5	57M8633	1	Elec. Connector Accessory	B5303_MFWD
5	RWA11099	2	Repair Wire Assembly	Cavity A, B
6	57M7257	1	Elec. Connector Housing	X062A
6	57M7290	1	Elec. Connector Accessory	-
6	RWA11082	3	Repair Wire Assembly	Cavity C, A, B
7	57M9776	1	Elec. Connector Housing	A912
8	57M11134	1	Elec. Connector Housing	-
9	57M9940	4	Elec. Connector Accessory	-
10	57M8812	1	Elec. Connector Housing	Y101
10	RWA11076	2	Repair Wire Assembly	Cavity A, B
11	57M9801	1	Elec. Connector Housing	X5037
11	RWA11027	9	Repair Wire Assembly	Cavity 2, 6, 5, 9, 8, 10, 12, 11, 3
12	57M9780	1	Elec. Connector Housing	X5071
12	RWA11029	3	Repair Wire Assembly	Cavity 2, 1, 3
13	57M9774	1	Elec. Connector Housing	X5046
13	RWA11026	2	Repair Wire Assembly	Cavity 2, 1
14	57M9802	1	Elec. Connector Housing	X5038
14	RWA11027	11	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
15	57M9800	1	Elec. Connector Housing	X5039
15	RWA11027	11	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, ,7, 8, 9, 11, 12
16	RE538505	1	Elec. Connector Accessory	A5505-J3
16	RWA11027	22	Repair Wire Assembly	Cavity 1, 2, 7, 11, 12, 13, 14, 16, 17, 23, 24, 27, 29, 30, 32, 36, 43, 44, 45, 50, 52, 53
17	R528122	1	Elec. Connector Accessory	-
18	57M7175	1	Elec. Connector Terminal	S501_1
19	57M7293	1	Elec. Connector Housing	S501-A
19	RWA11088	1	Repair Wire Assembly	Cavity A
19	57M7295	1	Elec.Connect Locking Device	-
20	57M7255	1	Elec. Connector Housing	X289
20	RWA11083	3	Repair Wire Assembly	Cavity A, C, B
20	57M7290	1	Elec. Connector Accessory	-
21	57M9779	1	Elec. Connector Housing	E502
22	57M9775	1	Elec. Connector Housing	-
23	57M8937	1	Elec. Connector Terminal	M301_FT4_S3
24	57M8924	1	Elec. Connector Housing	Y5014
24	RWA10703	2	Repair Wire Assembly	Cavity A, B
24	57M8633	1	Elec. Connector Accessory	-
25	57M8924	1	Elec. Connector Housing	Y5015
25	RWA10703	2	Repair Wire Assembly	Cavity A, B
25	57M8633	1	Elec. Connector Accessory	-
26	57M7571	1	Elec. Connector Terminal	G301B+
27	57M8875	1	Elec. Connector Terminal	G301D+
28	57M12905	1	Elec. Connector Terminal	FEXX-1
29	RE554429	1	Fuse Holder	FEXX
30	RWA11137	13	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 12, 13, 14
30	57M10297	1	Elec. Connector Housing	X180B
31	57M11374	1	Elec. Connector Accessory	-
32	RWA11029	12	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
32	57M9800	1	Elec. Connector Housing	X981B_ACS
33	57M9844	2	Elec. Connector Accessory	-
34	57M7567	1	Elec. Connector Terminal	XGND2_46A
35	57M7567	1	Elec. Connector Terminal	XGND2_46B
36	57M7567	1	Elec. Connector Terminal	XGND2_46C
37	57M7567	1	Elec. Connector Terminal	XGND2_46D
38	57M10958	1	Elec. Connector Housing	B5501
38	RWA10718	10	Repair Wire Assembly	Cavity 6, 5, 9, 8, 10, 12, 11, 3, 4, 2
39	57M11439	1	Elec. Connector Accessory	-
40	57M9731	1	Elec. Connector Housing	E5601
40	RWA11023	2	Repair Wire Assembly	Cavity 1, 2
41	57M9788	1	Elec. Connector Housing	A5507
41	RWA11027	5	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
42	57M9732	1	Elec. Connector Housing	E5603
42	RWA11023	2	Repair Wire Assembly	Cavity 1, 2
43	57M9730	1	Elec. Connector Housing	E5602
43	RWA11023	2	Repair Wire Assembly	Cavity 1, 2
44	57M7144	1	Elec. Connector Housing	M02
44	RWA11076	2	Repair Wire Assembly	Cavity 1, 2
45	57M7144	1	Elec. Connector Housing	M01
45	RWA11076	2	Repair Wire Assembly	Cavity A, B
46	57M7144	1	Elec. Connector Housing	M03
46	RWA11076	2	Repair Wire Assembly	Cavity A, B
47	57M9726	1	Elec. Connector Housing	B303
47	RWA11027	2	Repair Wire Assembly	Cavity 1, 2
48	57M9837	1	Elec. Connector Accessory	-
49	57M9792	1	Elec. Connector Housing	X030A
49	RWA11029	7	Repair Wire Assembly	Cavity 5, 7, 6, 4, 1, 2, 3
50	57M9792	1	Elec. Connector Housing	B249
50	RWA11029	5	Repair Wire Assembly	Cavity 7, 5, 8, 1, 2
51	57M9842	1	Elec. Connector Accessory	-
52	57M7257	1	Elec. Connector Housing	X061A
52	RWA11082	3	Repair Wire Assembly	Cavity C, B, A
52	57M7290	1	Elec. Connector Accessory	-
53	57M9800	1	Elec. Connector Housing	X003A
53	RWA11029	11	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 11, 12
54	RE258807	27	Tie Band	-
55	57M12137	2	Clamp	SUB FOR 57M10837
56	AH225363	1	Clip	-
57	57M9859	2	Clamp	-
58	57M11231	1	Clip Kit	-
59	57M9229	1	Clip	-
60	57M9789	1	Elec. Connector Housing	-
61	57M8910	1	Clip	-
62	RE572010	1	Chassis Wiring Harness	-
63	RE554428	1	Cover	-
64	RE554430	1	Cover	-
65	R536493	1	Nut	-
66	57M10421	2	Elec. Connector Accessory	-
67	57M9190	1	Clip	-

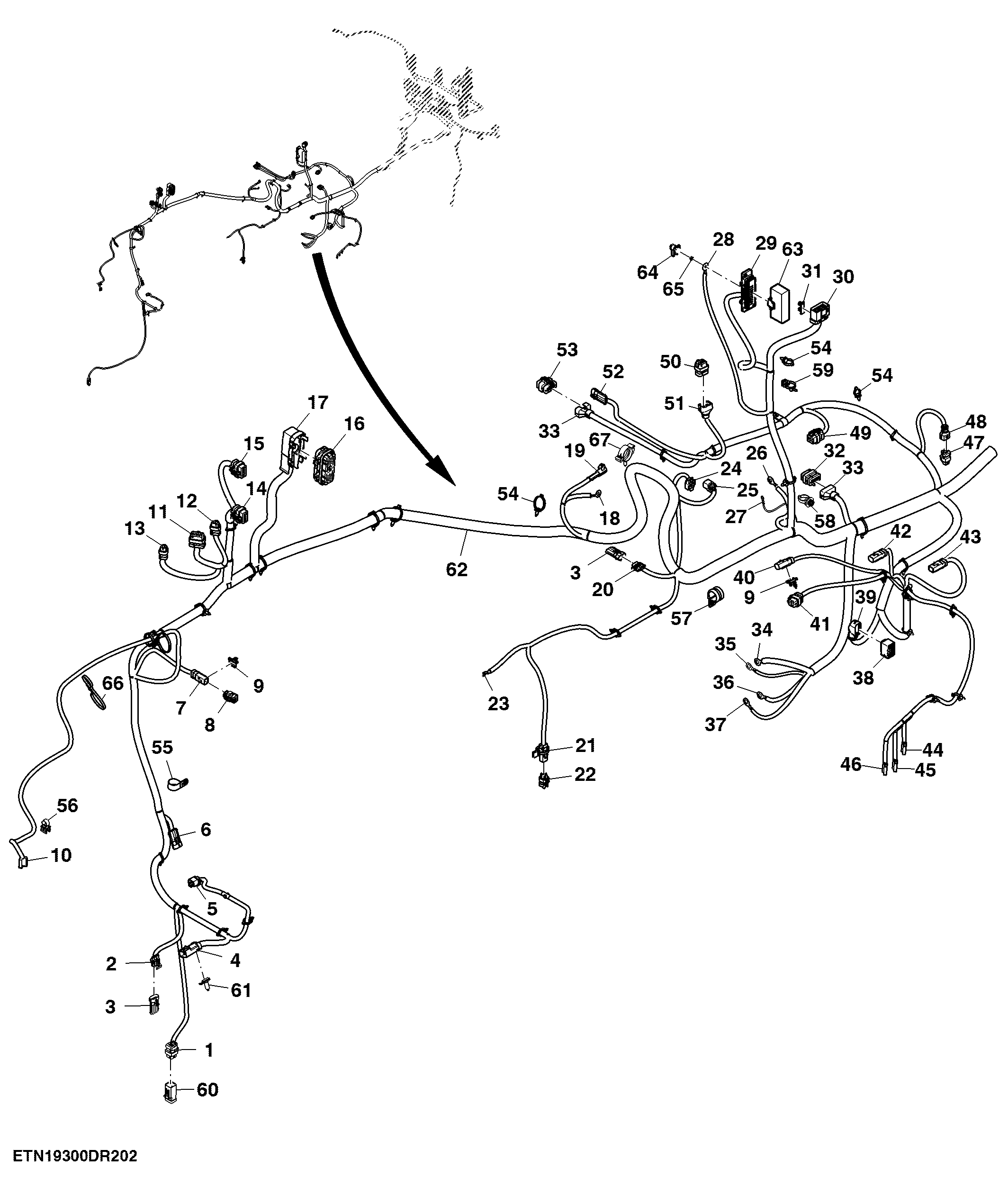

Wiring Harness, Chassis, FT4 Engine (2/4) ( - 914100)
