Steering Column Module, W/ LH Reverser, IVT™, FT4 Engine (917000 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7866	1	Screw	M8 X 20
2	AH225363	1	Clip	-
3	RE579336	1	Module	-
4	R117220	1	Washer	-
5	21M7495	2	Screw	M4 X 10
6	RE597844	1	Turn Signal Wiring Harness	SUB FOR RE579652
7	R44165	2	Lock Nut	ORDER H204146
7	H204146	2	Nut	-
8	RE278352	1	Switch	-
9	RE271200	2	Knob	-
10	37M7485	3	Screw	-
11	RE46634	1	Switch	-
12	RE258807	3	Tie Band	-
13	R164403	1	Knob	-
14	R343439	1	Screw	-
15	AL220958	1	Rotary Switch	-
16	57M8858	1	Elec. Connector Housing	XX101, Front Console to Steering Column Harness Interconnect
16	RWA10664	1	Repair Wire Assembly	Cavity C, D, E, F, G, H, J, K,L, N, P, R, S, T
17	57M8859	2	Elec.Connect Locking Device	-
18	57M8860	1	Elec.Connect Locking Device	-
19	57M9668	1	Elec. Connector Housing	S103, Turn Signal Switch Assembly
19	RWA11177	1	Repair Wire Assembly	Cavity 31, 31B, 49A, 56, 56A, 56D, L, R, B
20	57M8758	1	Elec. Connector Housing	S102, Road Light Switch
20	57M8757	4	Elec.Connect Locking Device	-
20	RWA10655	1	Repair Wire Assembly	-
21	RE46735	1	Electrical Connector Assy	S201, Front Wiper Switch
21	RWA10655	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, B
22	57M11510	1	Elec. Connector Housing	A189, Inverter Backlighting Steering Column
22	RWA11146	1	Repair Wire Assembly	-
23	34M7159	1	Spring Pin	3 X 12 mm
24	40M7082	1	Snap Ring	-
25	40M7251	1	Snap Ring	-
26	L221355	1	Boot	SUB FOR RE189712
27	R272799	1	Label	-
28	R272797	1	Label	-
29	R556235	1	Label	-

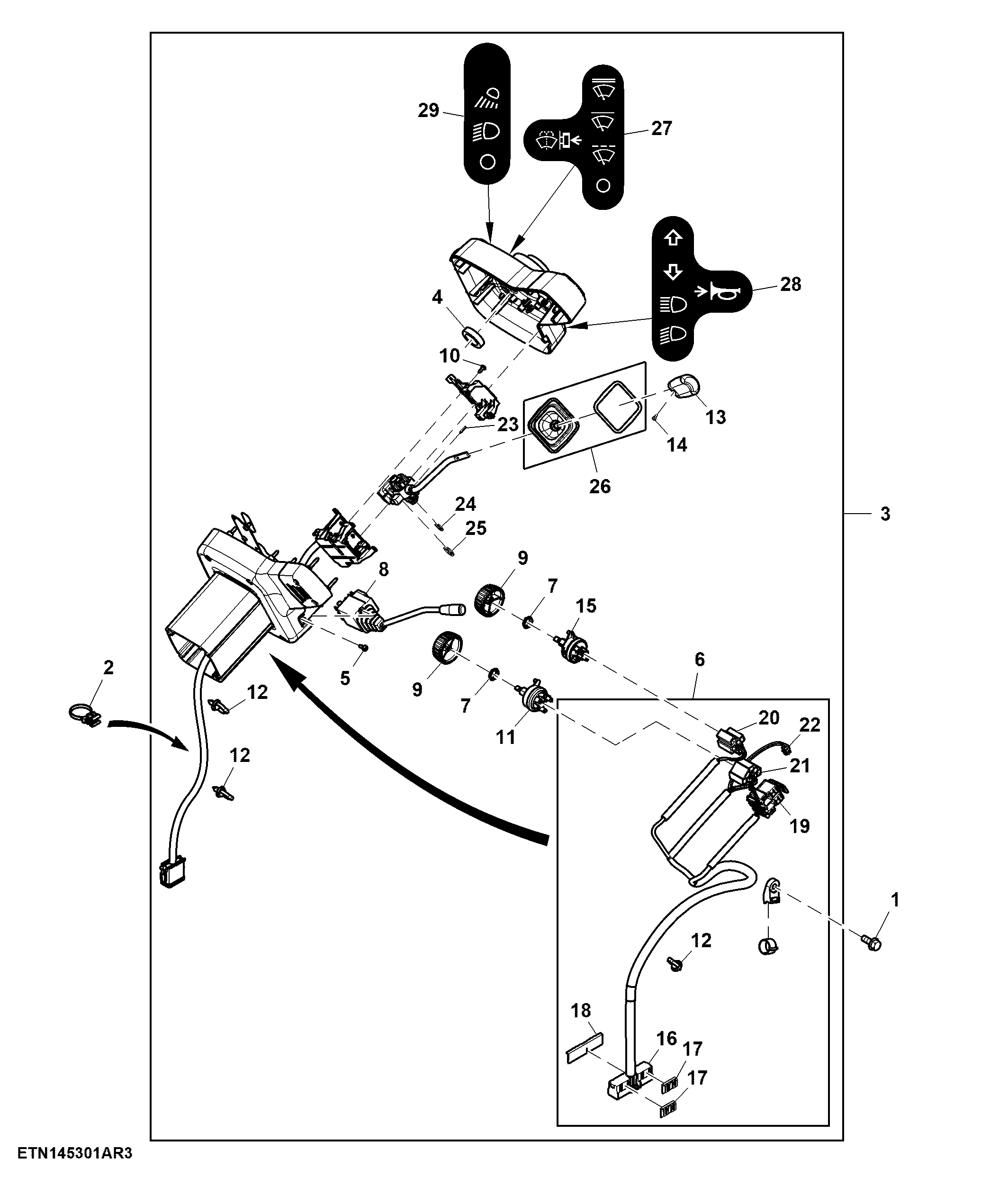

Steering Column Module, W/ LH Reverser, IVT™, FT4 Engine (917000 - )
