Battery Cable, W/ Battery Disconnect, IVT™, T3 / IT4 Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7296	4	Flange Nut	M10
2	14M7299	1	Flange Nut	M12
3	19M7784	2	Screw	M10 X 20
4	19M7866	9	Screw	M8 X 20
5	19M7910	2	Screw	M16 X 55
6	AA27556	4	Hose Clamp	-
7	H168854	2	Clamp	-
8	M84971	1	Nut	-
9	M84972	2	Nut	-
10	R135871	1	Elec. Connector Terminal	-
11	R96066	1	Cover	-
12	RE285712	1	Nut	-
13	RE304437	1	Battery Cable	Cab Controller
14	RE331826	1	Bracket	-
15	RE337820	1	Battery Cable	Negative, Back Up Pump
16	T102934	3	Clamp	-
17	T74416	3	Clamp	-
18	T75197	2	Clamp	-
19	AH90990	2	Clip	-
20	RE569403	1	Battery Cable	Cab Ground
21	RE572517	1	Battery Cable	Roof Power INCLUDES (4) 57M9229
22	RE572520	1	Battery Cable	Positive, Back Up Pump INCLUDES (5) 57M8902
23	RE572518	1	Battery Cable	Alternator
24	14M7298	6	Flange Nut	M8
25	RE572542	1	Bracket	-
26	R343208	1	Clamp	-
27	14M7400	1	Lock Nut	M10
28	28H3376	1	Spacer	0.364" X 0.540" X 9/16"
29	T295912	3	Clamp	-
30	24M7055	1	Washer	8.400 X 16 X 1.600 mm
31	RE574134	1	Battery Cable	Positive, FT4 / IT4
32	RE574139	1	Battery Cable	Cab Power INCLUDES 57M8902
33	RE574141	1	Battery Cable	Battery Disconnect
34	RE574142	1	Battery Cable	Battery Disconnect
35	19M7864	2	Screw	M8 X 12
36	19M7798	2	Screw	M8 X 40
37	19M7797	2	Screw	M6 X 40
38	57M8902	6	Clip	-
39	57M9229	4	Clip	-
40	R555400	1	Clamp	-
41	24H1122	1	Washer	3/8" X 7/8" X 0.083"

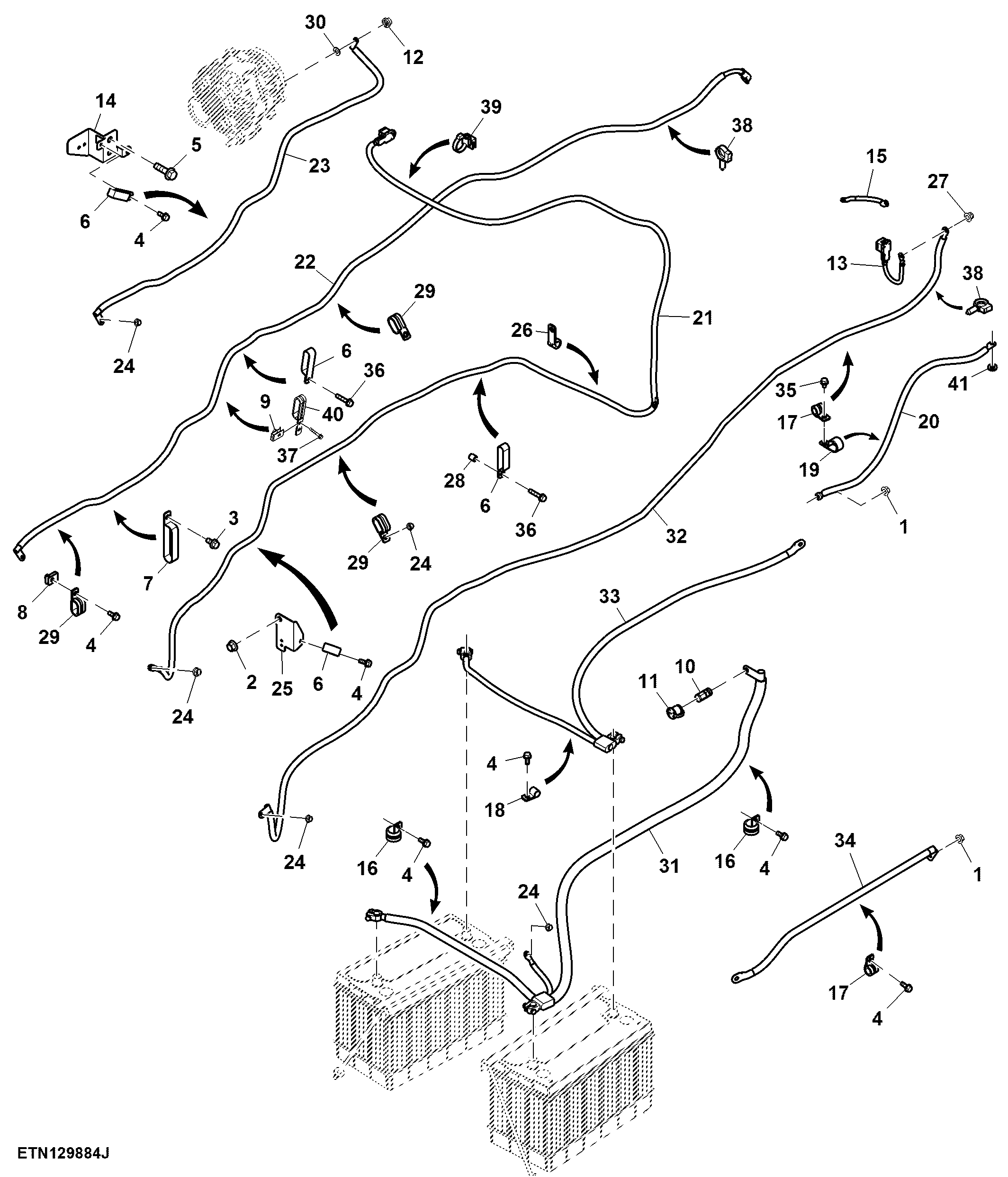

Battery Cable, W/ Battery Disconnect, IVT™, T3 / IT4 Engine
