Headlight (HID / LH Driving) (European Version)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	RE271575	3	Bulb	-
3	RE271579	3	Electric Ballast	-
3	57M8958	3	Elec. Connector Housing	(USE WITH RE271579)
4	RE260102	2	Lamp	-
5	57M7166	2	Bulb	-
7	R210942	1	Seal	(USE WITH RE325833) L.H.
7	R232917	1	Seal	(USE WITH RE325833) R.H.
8	RE271578	3	Wiring Harness	(USE WITH RE271574 OR RE271573)
9	37M7348	9	Screw	-
10	R260103	2	Boot	-
11	R122858	2	Locking Collar	-
12	R185678	3	Hold-Down Clip	-
13	R232918	1	Seal	(USE WITH RE271574)
14	R210941	1	Seal	(USE WITH RE325635) L.H.
14	R232916	1	Seal	(USE WITH RE325635) R.H.
15	R191485	15	Screw	-
16	R184730	15	Spring	-
17	R180276	15	Insert	-
18	RE271577	1	Housing	-
19	RE271576	1	Housing	-
20	R210869	1	Bezel	-
21	R221863	4	Clip	-
22	RE210920	1	Screen	(INCLUDES (2) R54477)
23	R63679	2	Rivet	-
24	R184647	3	Tape	-
25	R184003	1	Medallion	-
26	JD5862	1	Label	-
27	RE292308	1	Bracket	-
28	RE229115	2	Headlight	-
29	RE229124	1	Headlamp Wiring Harness	-
30	57M7166	1	Bulb	-
31	L79050	1	Dust Shield	-
32	RE294186	1	Headlamp Wiring Harness	-
33	57M7257	1	Elec. Connector Housing	-
34	57M7255	2	Elec. Connector Housing	-
34	57M7290	2	Elec. Connector Accessory	-
35	57M9789	1	Elec. Connector Housing	-
1A	RE271574	1	Floodlamp	-
1B	RE325833	1	Floodlamp	(SUB FOR RE271574 THIS APPLICATION)
6A	RE271573	2	Floodlamp	-
6B	RE325635	2	Floodlamp	(SUB FOR RE271573 THIS APPLICATION)

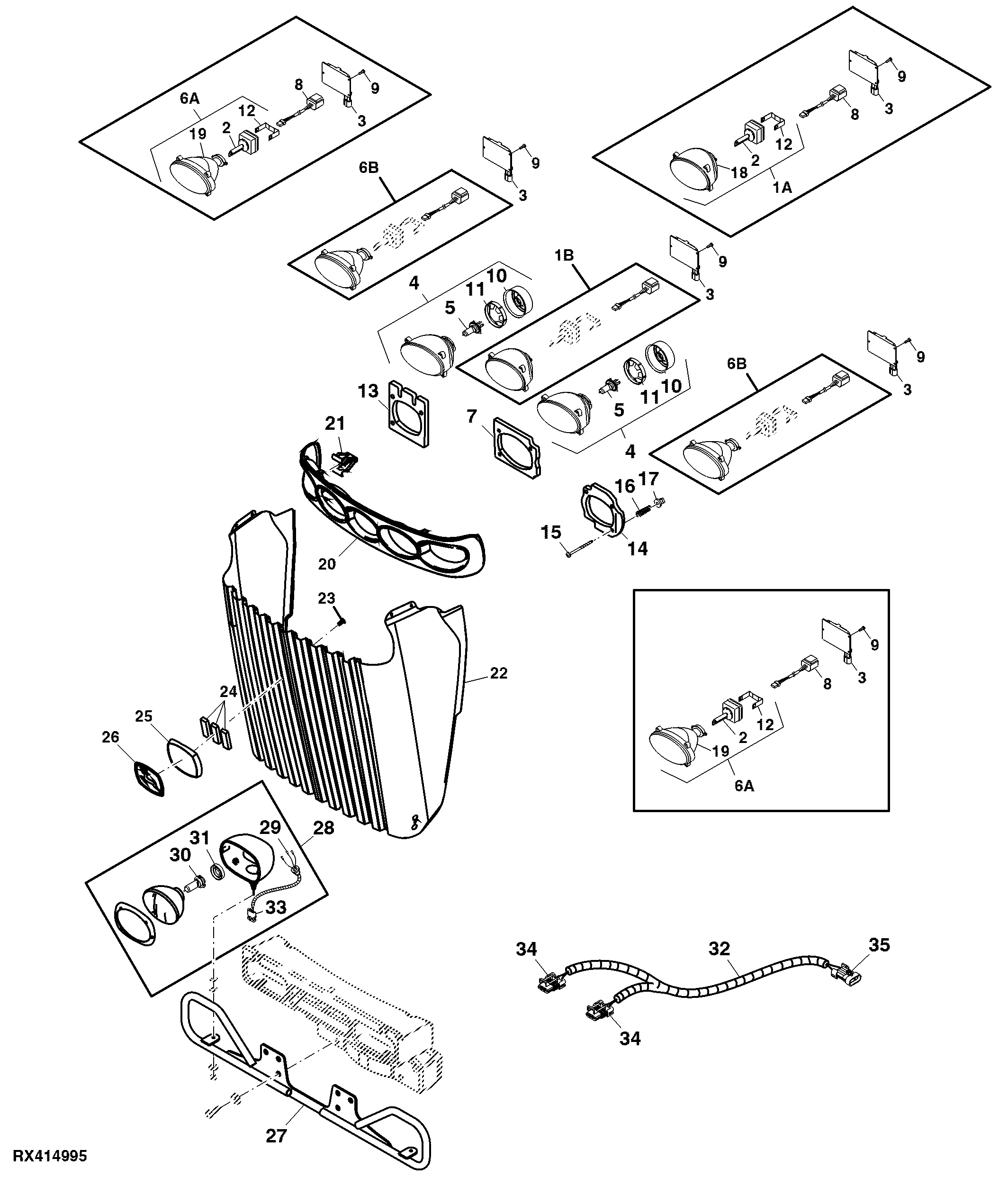

Headlight (HID / LH Driving) (European Version)

Нет текстового описания
